SW36A-16KAI - Scag 36" Walk-Behind Mower, 16hp Kawasaki (SN: C0500001 - C0599999) Handle Assembly Parts Diagram

36" Walk-Behind Mower, 16hp Kawasaki

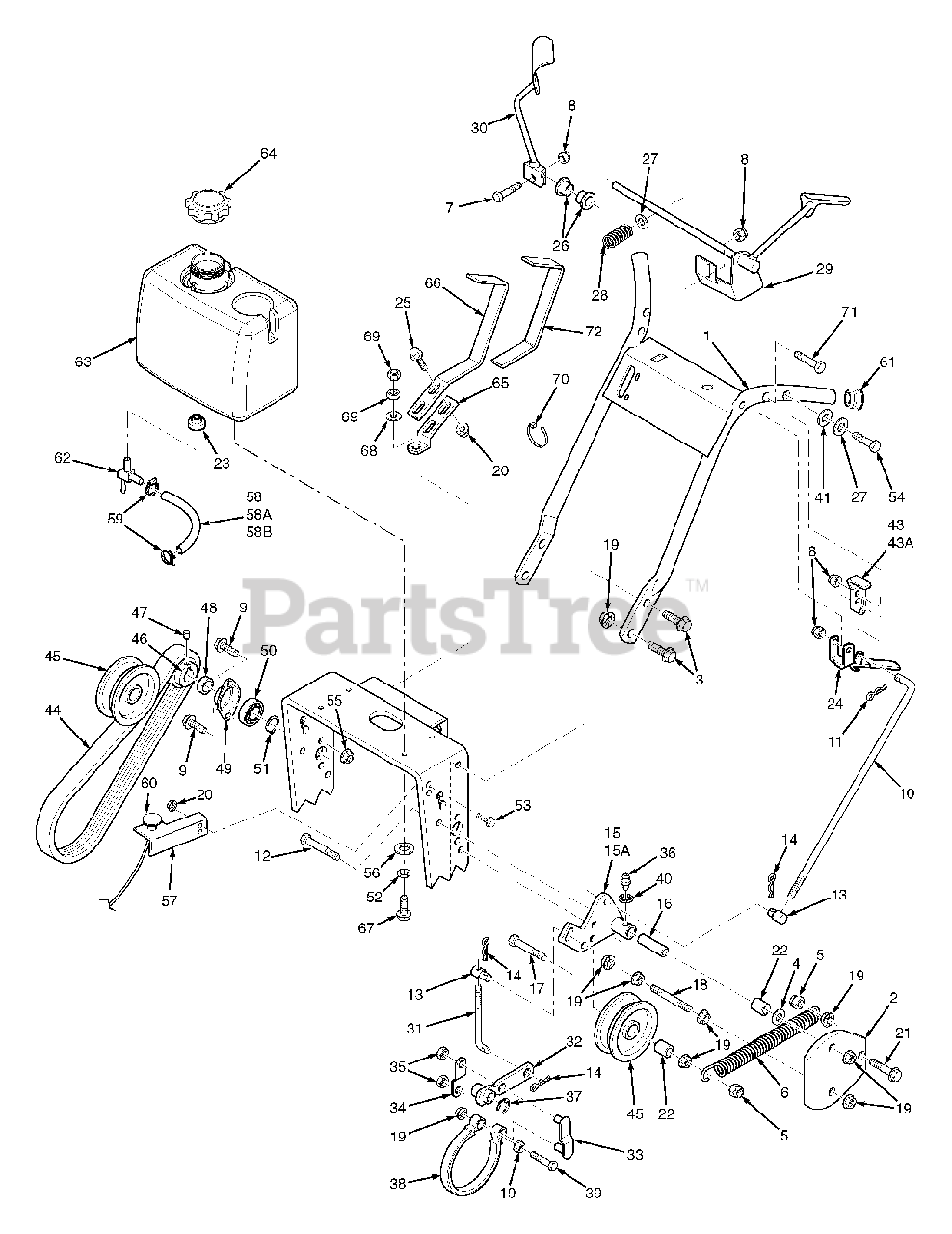

Handle Assembly Parts Diagram

  • Title

1

Scag 461830

Handle Assembly
(Superseded to 461972)

$734.99

$

Usually ships in 2-12 days

0

2

Scag 421360

Belt Guard

$24.99

$

Usually ships in 2-12 days

0

3

Scag 04017-27

Capscrw, 3/8-16 x 1" Serr. Flg.

$1.49

$

In Stock, Qty 20+

0

4

Scag 04041-07

Washer, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

6

Scag 48755

Spring, Idler

$10.99

$

In Stock, only 2 left!

0

7

Scag 04001-10

Bolt, 5/16-18 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

8

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

9

Scag 04017-05

Capscrew, 1/4-20 x 3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

10

Scag 44140

Control Rod, Steering

$19.99

$

Usually ships in 2-12 days

0

11

Scag 04062-02

Hair Pin, Small

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-23

Bolt, 3/8-16 x 4-1/2" Hex Head

$2.49

$

In Stock, Qty 7

0

13

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 7

0

14

Scag 04062-01

Hair Pin, Large .094 Diameter

$0.99

$

In Stock, Qty 20+

0

15

Scag 45847

Idler Bracket, RH

$44.99

$

In Stock, only 1 left!

0

15A

Scag 45846

Idler Bracket, LH

$44.99

$

In Stock, only 2 left!

0

16

Scag 43092

Idler Sleeve

$6.49

$

Usually ships in 2-12 days

0

17

Scag 04001-62

Bolt, 3/8-16 x 3/4" Hex Head

$1.49

$

In Stock, Qty 12

0

18

Scag 04004-17

Support Belt Guard

$2.99

$

In Stock, Qty 13

0

19

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

21

Scag 04017-28

Cpscrw, 3/16-18 x 1-1/4" Serr. Flg.

$1.49

$

In Stock, Qty 7

0

22

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

23

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

24

Scag 483160

Steering Lever

$46.99

$

In Stock, Qty 6

0

25

Scag 04017-17

Capscrew, 5/16-18 x 1" Serr. Flg.

$0.99

$

Usually ships in 2-12 days

0

26

Scag 483142

Bushing

$0.99

$

In Stock, only 3 left!

0

27

Scag 04040-15

Washer, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

28

Scag 483040

Spring, Operator Presence

$3.49

$

Usually ships in 2-12 days

0

29

Scag 451757

Operator Presence Lever, LH
(Superseded to 451915)

$83.99

$

Usually ships in 2-12 days

0

30

Scag 451759

Operator Presence Lever, RH
(Superseded to 451917)

$59.99

$

In Stock, only 1 left!

0

31

Scag 44005

Brake Rod

$7.49

$

Usually ships in 2-12 days

0

32

Scag 45092

Brake Lever

$31.99

$

Usually ships in 2-12 days

0

33

Scag 45093

Brake Link

$21.99

$

Usually ships in 2-12 days

0

34

Scag 42254

Brake Link Plate

$13.99

$

Usually ships in 2-12 days

0

35

Scag 04024-01

Nut, 3/8 Push-on

$1.49

$

Usually ships in 2-12 days

0

36

Scag 48114-05

Grease Fitting, Straight 1/4-28

$1.49

$

In Stock, Qty 9

0

37

Scag 04050-01

Retaining Ring, 5/8 Ext. "E"

$0.99

$

In Stock, Qty 20+

0

38

Scag 48210

Brake Band

$33.99

$

In Stock, only 4 left!

0

39

Scag 04001-45

Bolt, 3/8-16 x 2" Hex Head

$0.99

$

In Stock, Qty 8

0

40

Scag 04031-08

1/4" Internal Tooth Lockwasher

$0.99

$

In Stock, Qty 10

0

41

Scag 04032-01

Curved Spring Washer

$0.99

$

In Stock, only 3 left!

0

42

Scag 04015-13

Socket Head Capscrew #8-32 x 1/2"

$0.99

$

In Stock, Qty 9

0

43

Scag 461242

Neutral Latch, RH

$15.99

$

In Stock, only 1 left!

0

43A

Scag 461241

Neutral Latch, LH

$13.99

$

In Stock, only 1 left!

0

44

Scag 48202A

Belt, Wheel Drive

$101.99

$

In Stock, Qty 11

0

45

Scag 483211

Idler Pulley, Wheel Drive

$42.99

$

In Stock, only 1 left!

0

46

Scag 482645

Pulley, Jackshaft
(Superseded to 48199)

Note: (Inc. 47)

$50.99

$

In Stock, only 2 left!

0

47

Scag 04012-04

Setscrew, Hex Socket Knurl Cup Pt. 5/16-18 (nylock)

$0.99

$

In Stock, Qty 14

0

48

Scag 43098

Spacer, Jackshaft Pulley

$3.49

$

In Stock, only 2 left!

0

49

Scag 48223

Flange, Jackshaft Bearing

$5.49

$

In Stock, only 2 left!

0

50

Scag 48224

Bearing, Jackshaft

$12.99

$

In Stock, Qty 20+

0

51

Scag 04050-09

Retaining Ring, 5/8 Ext. Basic

$0.99

$

In Stock, Qty 20+

0

52

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04017-16

Capscrew, 5/16-18 x 3/4" Serr. Flg.

$0.99

$

In Stock, Qty 10

0

54

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 6

0

55

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

56

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

57

Scag 424113

Bracket, Choke Mt.

$14.99

$

Usually ships in 2-12 days

0

58

Fuel Hose,1/4"ID, 10" (KH Only)

Note: NOT USED

$

$

Not available

58A

Scag 48058

Fuel Hose,1/4"ID, 23" (KA Only)
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

58B

Fuel Hose,1/4"ID, 26" (Honda Only)

Note: NOT USED

$

$

Not available

59

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

60

Scag 482314

Choke Control

$29.99

$

In Stock, only 1 left!

0

61

Scag 483161

Plug, Handlebar

$2.49

$

Usually ships in 2-12 days

0

62

Scag 48308

Valve, Fuel Shut Off
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

63

Scag 461729

Fuel Tank Assy.
(Superseded to 462289)

Note: (Incl. Bush. & Val.)

$307.99

$

Usually ships in 2-12 days

0

64

Scag 482547

Fuel Tank Cap
(Superseded to 483792)

$26.99

$

In Stock, only 4 left!

0

65

Scag 422279

Shift Lever

$11.99

$

In Stock, only 1 left!

0

66

Scag 461163

Shift Lever Extention

Note: (incl. 72)

$52.99

$

In Stock, only 1 left!

0

67

Scag 04001-09

Capscrew, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

68

Scag 04041-07

Washer, 3/8 (.391x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

69

Scag 04020-14

Nut, 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

70

Scag 48028-05

Cable Tie

$

$

Not available

71

Scag 04001-53

Bolt, 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

72

Scag 481839

Grip, Shift Handle

$8.49

$

Usually ships in 2-12 days

0
