SW36A-15KH - Scag 36" Walk-Behind Mower, 15hp Kohler (SN: A0400001 - A0499999) Instrument Panel Parts Diagram
36" Walk-Behind Mower, 15hp Kohler

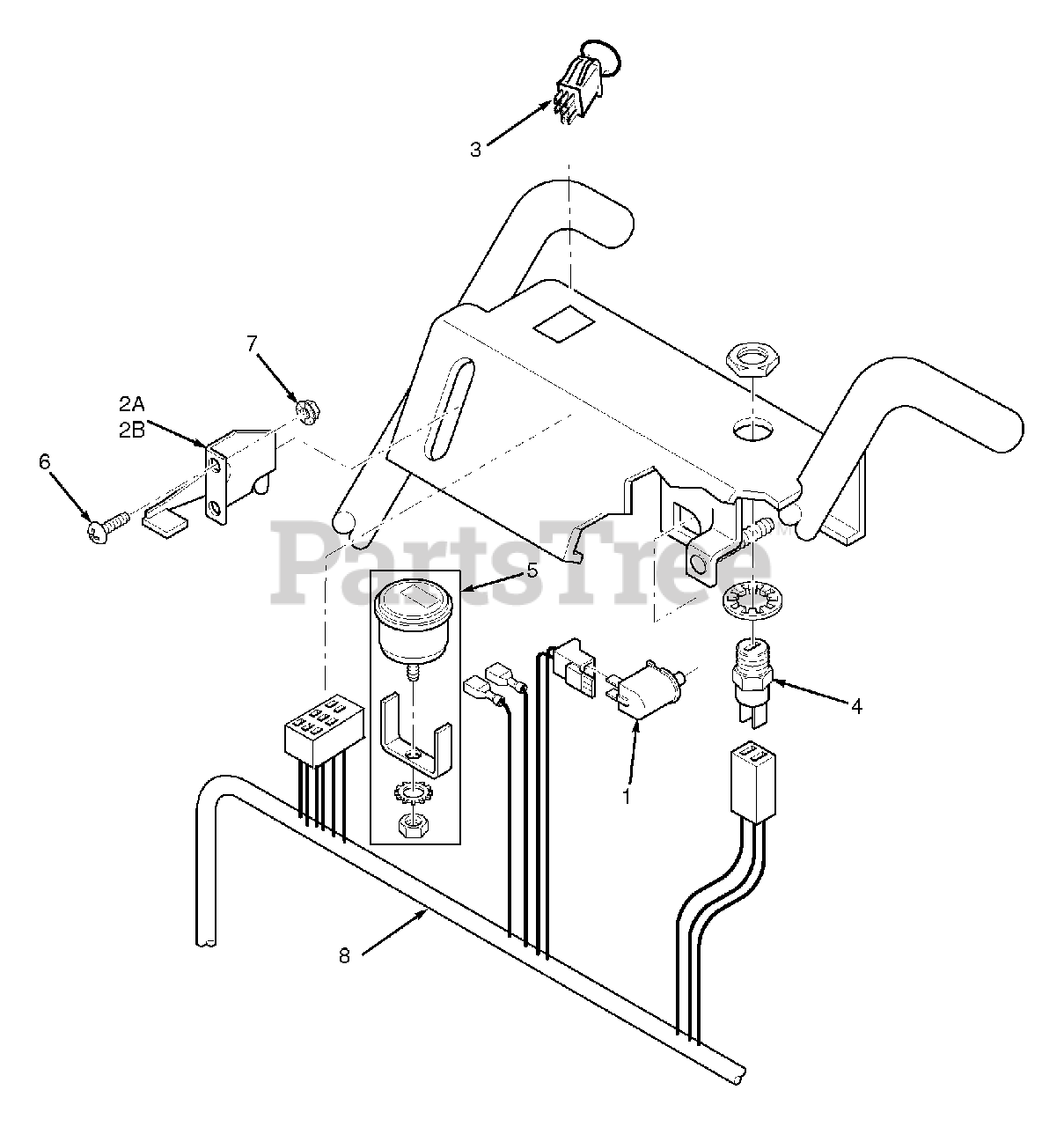

Instrument Panel Parts Diagram
Scag 48717
Switch, Neutral Interlock
$9.99
$
In Stock, only 3 left!
Scag 482814
Throttle Control
$
$
Not available
2B
Throttle Control
Note: NOT USED
$
$
Not available
$37.99
$
In Stock, Qty 20+
$13.99
$
In Stock, only 1 left!
Scag 48023
Hour Meter (dealer installed)
$157.99
$
Usually ships in 2-12 days
6
Screw, #10-32 x .50 Phillips Washer Head
Note: Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated.
$
$
Not available
Scag 04019-01
Nut, #10-32 Serrated Flange Hex Head
$0.99
$
Usually ships in 2-12 days
Scag 482711
Handle Wire Harness, Manual Start
$102.99
$
In Stock, Qty 5
Scag 48030-09
Clamp, Wire Harness
$1.49
$
In Stock, Qty 15
