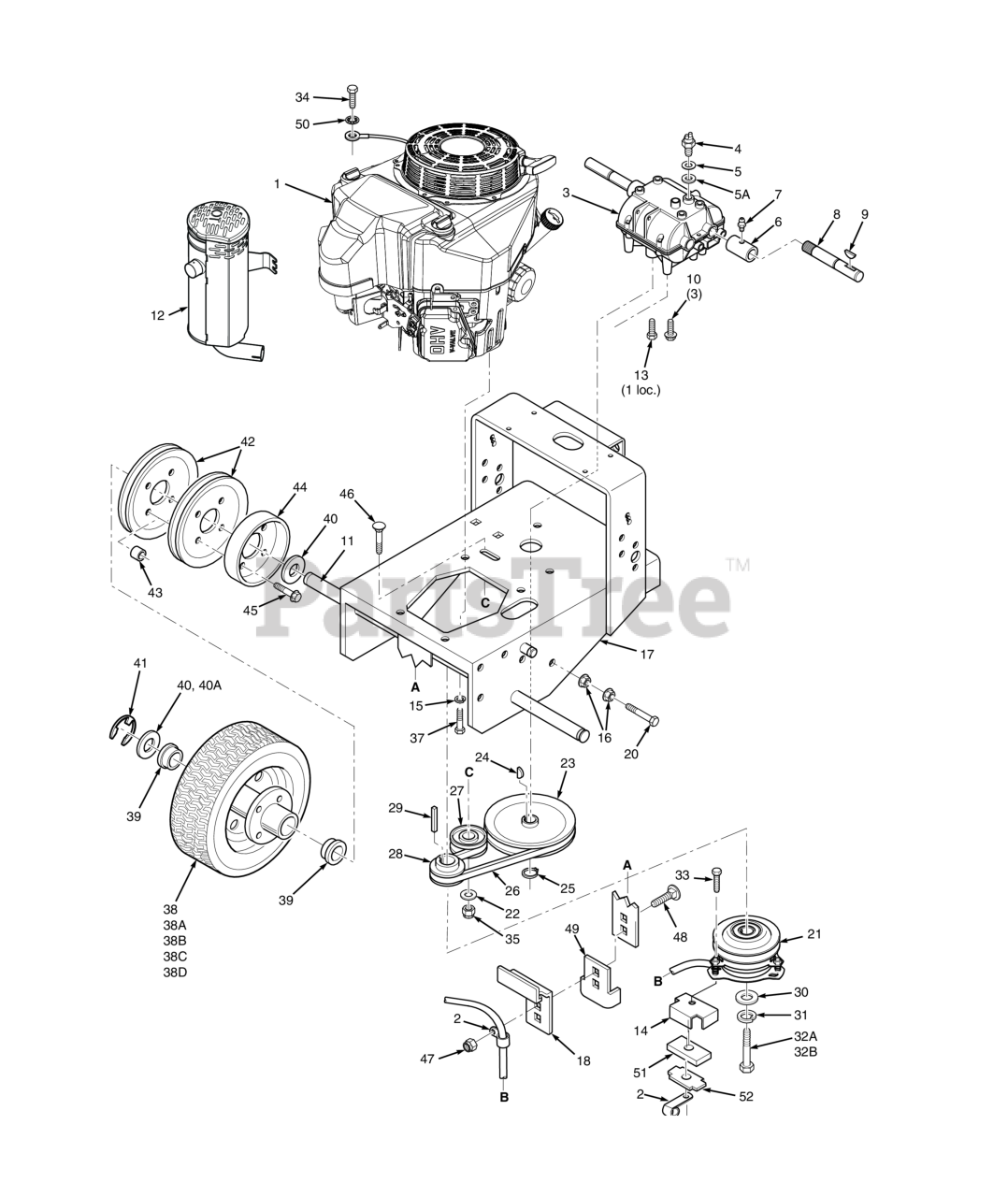

SW36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: T7700001 - T7799999) ENGINE DECK Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

ENGINE DECK Parts Diagram

  • Title

1

Scag 485014

Engine, Kawasaki 14FS (FS481V)

$

$

Currently unavailable

2

Scag 48030-09

Clamp, Cable 1/2" I.D.

$1.49

$

In Stock, Qty 5

0

3

Scag 481580

Transmission, 5-speed (Peerless 700-070, 9 tooth spline)

$781.99

$

Usually ships in 2-12 days

0

4

Scag 48231

SWITCH, TRANSMISSION INTERLOCK N.O.

$38.99

$

Usually ships in 2-12 days

0

5

Scag 48122-01

FIBER WASHER - .010

$0.99

$

Usually ships in 2-12 days

0

5A

Scag 48122-02

FIBER WASHER - .020

$0.99

$

Usually ships in 2-12 days

0

6

Scag 481581

Coupler, Jackshaft

$40.99

$

In Stock, only 2 left!

0

7

Scag 48114-05

Greese Fitting, Straight 1/4 - 28

$1.49

$

In Stock, Qty 9

0

8

Scag 481582

Jackshaft (fits SW32,36,48 & 52)

$41.99

$

In Stock, only 2 left!

0

9

Scag 04063-09

KEY, HI PRO #9

$1.49

$

In Stock, Qty 9

0

10

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

11

Scag 43085

Wheel Axle (SW36,48 & 52)

Note: Requires welding onto chassis.

$52.99

$

Usually ships in 2-12 days

0

12

Scag 484620

Muffler, Kawasaki (FS481, FS541, FS600)

$173.99

$

In Stock, Qty 5

0

13

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 422533

Backing Plate, Clutch Stop

$13.99

$

In Stock, only 1 left!

0

15

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 7

0

16

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

17

Scag 462286

Engine Deck (fits SW36,48 & 52)

$735.99

$

Usually ships in 2-12 days

0

18

Scag 424620

Plate, Clutch Bracket

$19.99

$

Usually ships in 2-12 days

0

19

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

21

Scag 461397

Clutch, Electric (Ogura)

$306.99

$

In Stock, only 1 left!

0

22

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

23

Scag 48197

PULLEY, TRANSMISSION INPUT

$35.99

$

Usually ships in 2-12 days

0

24

Scag 04063-07

KEY, WOODRUFF #9, 3/16 X 3/4"

$0.99

$

In Stock, Qty 12

0

25

Scag 04050-09

RETAINING RING, 5/8 EXT. - BASIC

$0.99

$

In Stock, Qty 20+

0

26

Scag 48203

BELT, TRANSMISSION DRIVE

$27.99

$

In Stock, only 1 left!

0

27

Scag 483208

Pulley, Idler 3" Dia. - 52"

$33.99

$

In Stock, Qty 20+

0

28

Scag 481666

Pulley, Traction Drive

$51.99

$

Usually ships in 2-12 days

0

29

Scag 04063-19

KEY, 1/4 X 1/4 X 3/4"

$0.99

$

In Stock, only 2 left!

0

30

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 12

0

31

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

32A

Scag 04102-04

Bolt, Hex Head 7/16-20 x 2-1/2" (Kohler)

$2.49

$

In Stock, Qty 5

0

32B

Scag 04103-03

Cpsrw, M10-1.5 x 55 Metric Hex Hd

$23.99

$

In Stock, only 3 left!

0

33

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

34

Scag 04002-06

Bolt, Hex Head M8 - 1.25 x 16 (48V / 52V)

$0.99

$

In Stock, only 1 left!

0

35

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

36

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

37

Scag 040001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$

$

Currently unavailable

38

Scag 48192

Wheel Assembly (incl. 38A-38B) (fits SW36,48,52)

$342.99

$

Usually ships in 2-12 days

0

38A

Scag 481860

Tire, 13 x 6.50-6, 2-ply (fits SW36, 48, 52)

$175.99

$

Usually ships in 2-12 days

0

38B

Scag 481859

Rim & Bearing Assembly (fits SW36, 48, 52)

$336.99

$

Usually ships in 2-12 days

0

39

Scag 481858

Wheel Brng. NWC (OD 1.984 - 1.980)

$26.99

$

Usually ships in 2-12 days

0

40

Scag 04042-05

Flatwasher, 1" (1.062 x 1.75 x .10)

$0.99

$

In Stock, Qty 18

0

40A

Scag 04041-14

Flatwasher, 1" (1.062 x 1.50 x .048")

$0.99

$

In Stock, Qty 15

0

41

Scag 04050-08

Ring, Retaining 1" External "E"

$0.99

$

In Stock, Qty 12

0

42

Scag 48200

PULLEY, WHEEL DRIVE

$33.99

$

In Stock, only 1 left!

0

43

Scag 43088

SPACER, WHEEL PULLEY

$12.99

$

Usually ships in 2-12 days

0

44

Scag 48209

BRAKE DRUM

$19.99

$

Usually ships in 2-12 days

0

45

Scag 04017-19

Bolt, Serrated Flange Hex Head 5/16-18 x 1.50"

$1.49

$

Usually ships in 2-12 days

0

46

Scag 04003-03

SHORT SQUARE NECK CARRIAGE BOLT, 3/8-16 X 2"

$1.49

$

In Stock, Qty 5

0

47

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

48

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 9

0

49

Scag 421370

Plate, Clutch Anti-Rotation

$22.99

$

Usually ships in 2-12 days

0

50

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

$0.99

$

Usually ships in 2-12 days

0

51

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

Usually ships in 2-12 days

0

52

Scag 422534

Plate, backing Clutch Pad

$5.49

$

In Stock, only 1 left!

0
