SW36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: N4200001 - N4299999) HANDLE ASSEMBLY Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

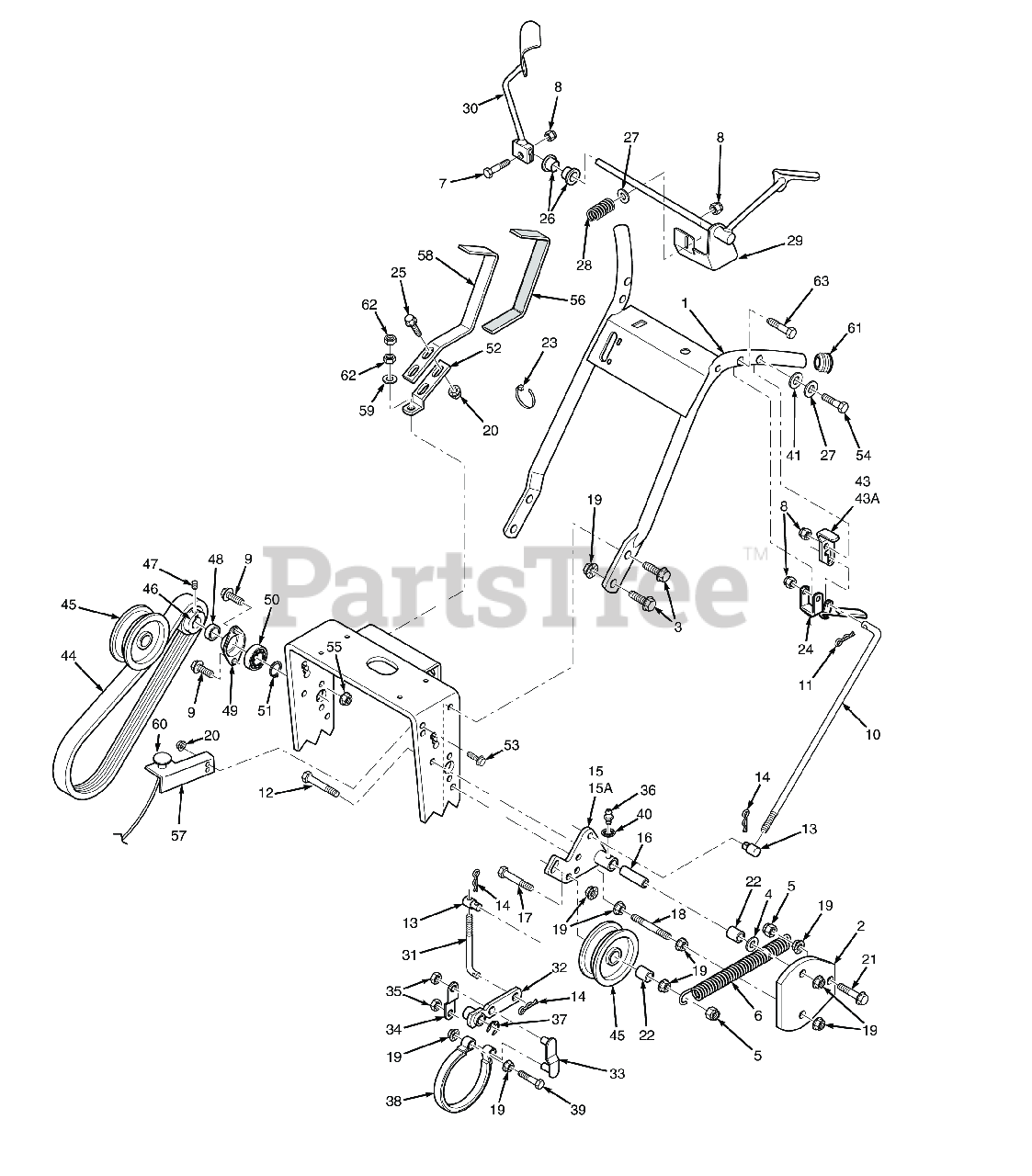

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Scag 463097

Handle Assembly

$280.99

$

Usually ships in 2-12 days

0

2

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

3

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

4

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 48755

Spring,Counter Balance

$10.99

$

In Stock, only 2 left!

0

6

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

7

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

8

Scag 04017-05

Bolt, Serrated Flange Hex Head 1/4 x 20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 44140

Control Rod, Steering

$19.99

$

Usually ships in 2-12 days

0

10

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-23

Bolt, 3/8 - 16 x 4 - 1/2" Hex Head

$2.49

$

In Stock, Qty 7

0

12

Scag 43032

SWIVEL JOINT, SPEED CONTROL ROD

$6.49

$

In Stock, Qty 7

0

13

Scag 04062-01

COTTER PIN, HAIR - 0.94 X 1.62

$0.99

$

In Stock, Qty 20+

0

14

Scag 45847

Idler Bracket, RH

$44.99

$

In Stock, only 1 left!

0

15

Scag 45846

Idler Bracket, LH

$44.99

$

In Stock, only 2 left!

0

15A

Scag 43092

IDLER SLEEVE

$6.49

$

Usually ships in 2-12 days

0

16

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 12

0

17

Scag 04004-17

SUPPORT BELT GUARD

$2.99

$

In Stock, Qty 13

0

18

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

19

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

20

Scag 04017-28

CAPSCREW, 3/16 X 1-1/4" SERRATED FLANGE

$1.49

$

In Stock, Qty 7

0

21

Scag 43286

Spacer, Idler

$2.49

$

In Stock, only 2 left!

0

22

Scag 48028-05

Cable Tie, .19 x 8.0"

$

$

Not available

23

Scag 483160

Lever, Steering Control

$46.99

$

In Stock, Qty 6

0

24

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

25

Scag 483142

Bushing

$0.99

$

In Stock, only 3 left!

0

26

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

27

Scag 483040

Spring, Operator Presence

$3.49

$

Usually ships in 2-12 days

0

28

Scag 451915

Operator Presence Lever, LH

$83.99

$

Usually ships in 2-12 days

0

29

Scag 451917

Operator Presence Lever, RH

$59.99

$

In Stock, only 1 left!

0

30

Scag 44005

BRAKE ROAD

$7.49

$

Usually ships in 2-12 days

0

31

Scag 45092

BRAKE LEVER

$31.99

$

Usually ships in 2-12 days

0

32

Scag 45093

Link Weldment, Brake

$21.99

$

Usually ships in 2-12 days

0

33

Scag 42254

BRAKE LINK PLATE

$13.99

$

Usually ships in 2-12 days

0

34

Scag 04024-01

Nut, 3/8 Push - on

$1.49

$

Usually ships in 2-12 days

0

35

Scag 48114-05

Greese Fitting, Straight 1/4 - 28

$1.49

$

In Stock, Qty 9

0

36

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

37

Scag 48210

Brake Band Assembly

$33.99

$

In Stock, only 4 left!

0

38

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

0

39

Scag 04031-08

1/4" INTERNAL TOOTH LOCKWASHER

$0.99

$

In Stock, Qty 10

0

40

Scag 04032-01

Socket Head Capscrew #8-32 x 1/2"

$0.99

$

In Stock, only 3 left!

0

41

Scag 04015-13

Socket Head Capscrew #8 - 32 x 1/2"

$0.99

$

In Stock, Qty 9

0

42

Scag 461242

Neutral Latch-RH 461241 Neutral Latch-LH

$15.99

$

In Stock, only 1 left!

0

43

Scag 461241

Neutral Latch Assembly, LH

$13.99

$

In Stock, only 1 left!

0

43A

Scag 48202A

BELT, WHEEL DRIVE

$101.99

$

In Stock, Qty 11

0

44

Scag 483211

Idler Pulley, Wheel Drive

$42.99

$

In Stock, only 1 left!

0

45

Idler Pulley, Wheel Drive

$

$

Not available

46

Scag 482645

Pulley, Jackshaft
(Superseded to 48199)

$50.99

$

In Stock, only 2 left!

0

47

Scag 04012-04

Setscrew, Hex Socket Knurl Cup Pt. 5/16 - 18 (nylock)

$0.99

$

In Stock, Qty 14

0

48

Scag 43098

SPACER, JACKSHAFT PULLEY

$3.49

$

In Stock, only 2 left!

0

49

Scag 48223

FLANGE, JACKSHAFT BEARING

$5.49

$

In Stock, only 2 left!

0

50

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

51

Scag 04050-09

RETAINING RING, 5/8 EXT. - BASIC

$0.99

$

In Stock, Qty 20+

0

52

Scag 422279

Shift Lever

$11.99

$

In Stock, only 1 left!

0

53

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

54

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 6

0

55

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

56

Scag 481839

Grip, Shift Handle

$8.49

$

Usually ships in 2-12 days

0

57

Scag 424113

Bracket, Choke Mounting

$14.99

$

Usually ships in 2-12 days

0

58

Scag 461163

Shift Lever Extension w/Grip

$52.99

$

In Stock, only 1 left!

0

59

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

60

Scag 482314

Choke Control

$29.99

$

In Stock, only 1 left!

0

61

Scag 483161

Plug, Handle Bar

$2.49

$

Usually ships in 2-12 days

0

62

Scag 04020-14

HEX NUT, 3/8-24 R.H. THREAD

$0.99

$

In Stock, only 3 left!

0

63

Scag 04001-53

Bolt, Hex Head 5/16-18 x 2-1/2" (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 13

0

64

Scag 482547

Cap, Fuel Tank
(Superseded to 483792)

$26.99

$

In Stock, only 4 left!

0
