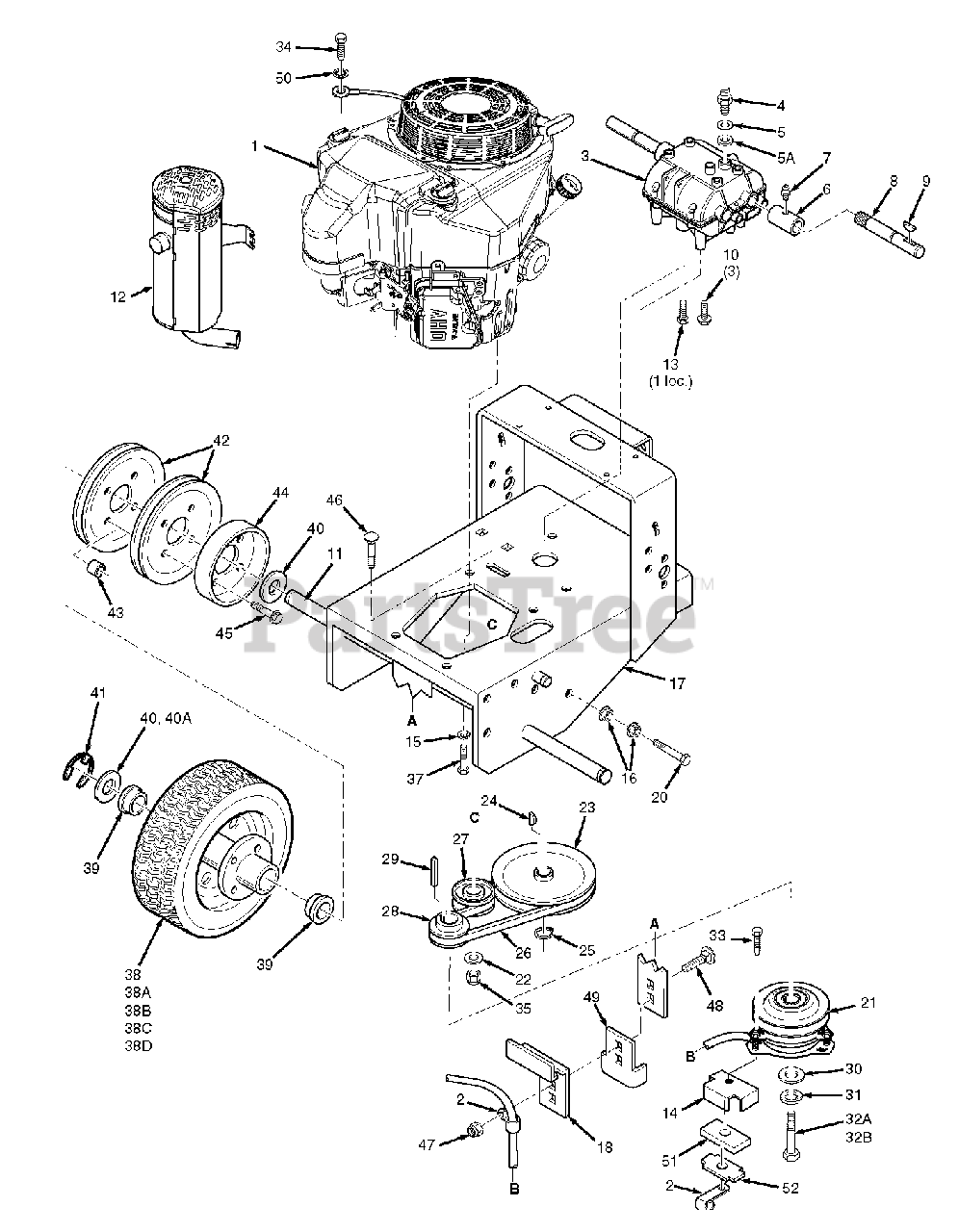

SW36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: J6100001 - J6199999) Engine Deck Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

Engine Deck Parts Diagram

  • Title

1

Scag 485014

Engine, Kawasaki 14FS (FS481V)

$

$

Currently unavailable

1

Scag 485015

Engine, Kawasaki 15FS (FS541V)

$

$

Currently unavailable

2

Scag 48030-09

Cable Clamp

$1.49

$

In Stock, Qty 5

0

3

Scag 481580

Transmission, 5-speed (Peerless 700-070, 9 tooth spline)

$781.99

$

Usually ships in 2-12 days

0

4

Scag 48231

Neutral Safety Switch

$38.99

$

Usually ships in 2-12 days

0

5

Scag 48122-01

Fibre Washer, thin

$0.99

$

Usually ships in 2-12 days

0

5A

Scag 48122-02

Fibre Washer, thick

$0.99

$

Usually ships in 2-12 days

0

6

Scag 481581

Coupler, Jackshaft

$40.99

$

In Stock, only 2 left!

0

7

Scag 48114-05

Grease Fitting, straight 1/4-28

$1.49

$

In Stock, Qty 9

0

8

Scag 481582

Jackshaft (fits SW32,36,48& 52)

$41.99

$

In Stock, only 2 left!

0

9

Scag 04063-09

Key, Hi-Pro #9

$1.49

$

In Stock, Qty 9

0

10

Scag 04017-16

Bolt, 5/16-18 X 3/4" Hex Head

$0.99

$

In Stock, Qty 10

0

11

Scag 43085

Wheel Axle (SW36,48 & 52)

Note: Requires welding onto chassis.

$52.99

$

Usually ships in 2-12 days

0

11

Scag 43104

Wheel Axle (SW 32)

Note: Requires welding onto chassis.

$139.99

$

Usually ships in 2-12 days

0

12

Scag 484620

Muffler - Kawasaki

$173.99

$

In Stock, Qty 5

0

13

Scag 04001-08

Bolt, 5/16-18 X 3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

14

Scag 422533

Backing Plate

$13.99

$

In Stock, only 1 left!

0

15

Scag 04030-04

Lock Wshr. 3/8"

$0.99

$

In Stock, Qty 8

0

16

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

17

Scag 462285

Engine Deck (fits SW32)

$538.99

$

Usually ships in 2-12 days

0

17

Scag 462286

Engine Deck (fits SW36,48 & 52)

$735.99

$

Usually ships in 2-12 days

0

18

Scag 424620

Plate, Clutch Bracket

$19.99

$

Usually ships in 2-12 days

0

19

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-51

Bolt, 3/8-16 x 3-3/4" Hex Head

$1.49

$

In Stock, Qty 8

0

21

Scag 461397

Electric Clutch (Ogura)

$306.99

$

In Stock, only 1 left!

0

22

Scag 04041-07

Washer, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

23

Scag 48197

Pulley, Transmission Input

$35.99

$

In Stock, only 1 left!

0

24

Scag 04063-07

Key, Woodruff #9

$0.99

$

In Stock, Qty 12

0

25

Scag 04050-09

Retaining Ring, 5/8" Ext, Basic

$0.99

$

In Stock, Qty 20+

0

26

Scag 48203

Belt, Transmission Drive

$27.99

$

In Stock, only 1 left!

0

27

Scag 483208

Idler Pulley, Transmission

$33.99

$

In Stock, Qty 20+

0

28

Scag 481666

Pulley, Traction Drive

$51.99

$

Usually ships in 2-12 days

0

29

Scag 04063-19

Key, 1/4 x 1/4 x 3/4"

$0.99

$

In Stock, only 2 left!

0

30

Scag 04041-28

Flat Washer, 7/16" Special

$2.99

$

In Stock, Qty 12

0

31

Scag 04030-05

Lock Washer, 7/16"

$0.99

$

In Stock, Qty 5

0

32A

Scag 04102-04

Bolt, 7/16-20 x 2-1/2" Hex Head

$2.49

$

In Stock, Qty 5

0

32B

Scag 04103-03

Cpsrw, M10-1.5 x55 Metric Hex Hd

$23.99

$

In Stock, only 3 left!

0

33

Scag 04001-12

Bolt, 5/16-18 x 1-3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

34

Scag 04002-06

Bolt, M8-1.25 x 16

$0.99

$

In Stock, only 1 left!

0

35

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

36

Scag 04040-15

Flat Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

37

Scag 040001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$

$

Currently unavailable

38

Scag 48192

Wheel Assembly (incl. 38A-38B) (fits SW36,48,52)

$342.99

$

Usually ships in 2-12 days

0

38

Scag 48253

Wheel Assembly (Incl. 38C - 38D) (SW32)

$315.99

$

Usually ships in 2-12 days

0

38A

Scag 481860

Tire, 13 x 6.50-6, 2-ply (fits SW36,48,52)

$175.99

$

Usually ships in 2-12 days

0

38B

Scag 481859

Rim & Bearing Assembly

Note: (incl. 39)

$336.99

$

Usually ships in 2-12 days

0

38C

Scag 481861

Tire, 13 x 5.00-6 2-ply (SW32 only)

$110.99

$

Usually ships in 2-12 days

0

38D

Scag 481862

Rim Assembly (incl. 39) (SW32 only)

$314.99

$

Usually ships in 2-12 days

0

39

Scag 481858

Wheel Bearing

$26.99

$

Usually ships in 2-12 days

0

40

Scag 04042-05

Washer, 1-1/16 x 1-3/4 x 12 ga

$0.99

$

In Stock, Qty 18

0

40A

Scag 04041-14

Washer, 1-1/16 x 1-1/2 x 18 ga

$0.99

$

In Stock, Qty 15

0

41

Scag 04050-08

Retaining Ring, 1" Ext.- "E"

$0.99

$

In Stock, Qty 12

0

42

Scag 48200

Pulley, Wheel Drive

$33.99

$

In Stock, only 1 left!

0

43

Scag 43088

Spacer, Wheel Pulley

$12.99

$

Usually ships in 2-12 days

0

44

Scag 48209

Brake Drum

$19.99

$

Usually ships in 2-12 days

0

45

Scag 04017-19

Bolt, 5/16-18 x 1-1/2" Serrated Flange

$1.49

$

Usually ships in 2-12 days

0

46

Scag 04003-03

Bolt, 3/8-16 x 2" Carriage

$1.49

$

In Stock, Qty 5

0

47

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

48

Scag 04003-04

Bolt, 5/16-18 x 1" Carriage

$0.99

$

In Stock, Qty 9

0

49

Scag 421370

Anti Rotation Bracket

$22.99

$

Usually ships in 2-12 days

0

50

Scag 04031-03

Lock Washer External Tooth

$0.99

$

Usually ships in 2-12 days

0

51

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

Usually ships in 2-12 days

0

52

Scag 422534

Plate, Backing

$5.49

$

In Stock, only 1 left!

0
