SW36A-13KH - Scag 36" Walk-Behind Mower, 13hp Kohler (SN: 8920001 - 8929999) Cutter Deck 36A" Parts Diagram

36" Walk-Behind Mower, 13hp Kohler

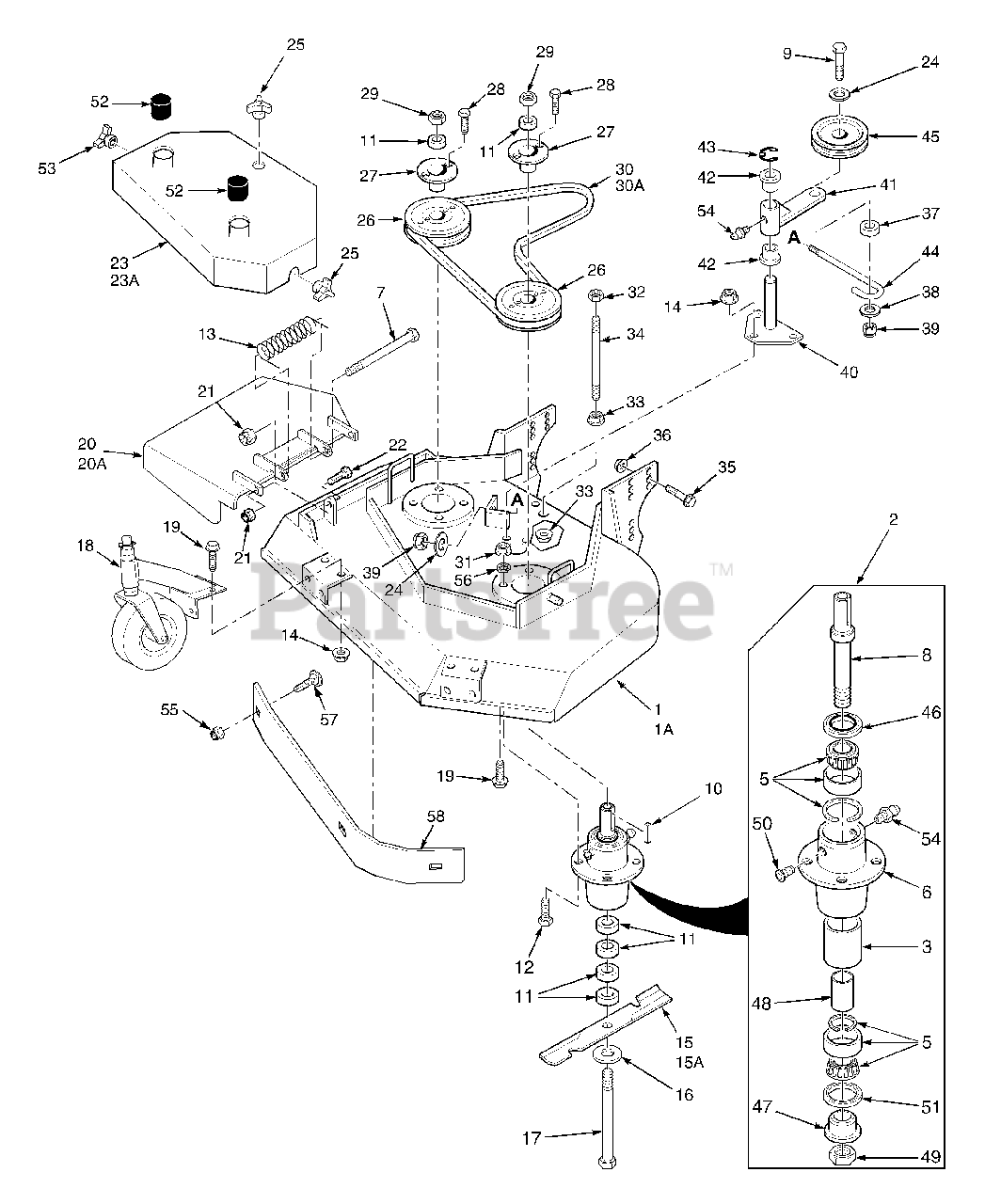

Cutter Deck 36A" Parts Diagram

  • Title

1

Cutter Deck

Note: (Includes Decals); Not used on this model.

$

$

Not available

1A

Scag 461634

Cutter Deck

Note: (Includes Decals)

$

$

Not available

2

Scag 461663

Cutter Spindle Assy.

$257.99

$

In Stock, Qty 20+

0

3

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

5

Scag 481022

Tapered Bearing (Two)

$59.99

$

In Stock, Qty 15

0

6

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

7

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

0

8

Scag 43589

Spindle Shaft

$58.99

$

In Stock, only 1 left!

0

9

Scag 04001-77

Bolt, 3/8-16 x 3-1/2" Hex Head

$1.49

$

In Stock, Qty 7

0

10

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43592

Spacer, Cutter Blade - Small

$4.49

$

In Stock, Qty 20+

0

12

Scag 04001-175

Bolt, 5/16-18 x 1-1/2" Hex Head Grade 8

$0.99

$

In Stock, Qty 10

0

13

Scag 482245

Spring, Chute Return

$10.99

$

In Stock, Qty 5

0

14

Scag 04019-03

Nut 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

15

Scag 481707

Cutter Blade, 18" Marbain

$23.99

$

In Stock, Qty 20+

0

15A

Scag 481711

Cutter Blade, 18 Hi Lift Marbain

$40.99

$

In Stock, only 3 left!

0

16

Scag 04043-06

Flatwasher, 5/8 W

$1.99

$

In Stock, Qty 20+

0

17

Scag 04001-41

Hex Hd. Bolt, 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

18

Scag 46079

Caster Assembly

$395.99

$

Usually ships in 2-12 days

0

19

Scag 04017-16

Cpscrw,5/16-18 x 3/4" Ser. Flg. Hex Head

$0.99

$

In Stock, Qty 10

0

20

Discharge Chute

Note: Not used on this model.

$

$

Not available

20A

Scag 461295

Discharge Chute

$68.99

$

In Stock, Qty 8

0

21

Scag 04021-10

Hex Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-09

Hex Hd Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

23

Belt Cover Assy

Note: (Includes Decal); Not used on this model

$

$

Not available

23A

Scag 461413

Belt Cover Assy
(Superseded to 462393)

Note: (Includes Decal)

$152.99

$

Usually ships in 2-12 days

0

24

Scag 04043-04

Flat Washer, 3/8" Special

$0.99

$

In Stock, Qty 20+

0

25

Scag 04029-03

Wing Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

26

Scag 482744

Pulley

$30.99

$

Usually ships in 2-12 days

0

27

Scag 48926

Tapered Hub

$30.99

$

In Stock, Qty 20+

0

28

Scag 04001-172

Hex Hd. Bolt, 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

30

Belt, Blade Drive

Note: Not used on this model

$

$

Not available

30A

Scag 48204

Belt, Blade Drive

$40.99

$

In Stock, Qty 5

0

31

Scag 04021-22

Elastic Stop Nut, 5/16-18 Grade 8

$0.99

$

In Stock, Qty 20+

0

32

Scag 04021-05

Hex Nut, 3/8-16 Center Locknut

$0.99

$

In Stock, Qty 20+

0

33

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

34

Scag 04004-02

Support, Belt Cover

$1.99

$

In Stock, only 4 left!

0

35

Scag 04017-36

Cpscrw, 1/2-13 x 1" Ser.Flg. HH

$2.99

$

In Stock, only 2 left!

0

36

Scag 04112-05

Nut, 1/2-13 Spiralock

$2.99

$

Usually ships in 2-12 days

0

37

Scag 43277

Spacer, J-Hook

$6.49

$

In Stock, only 1 left!

0

38

Scag 04041-12

Washer, 3/8 x 1-1/2 x 16 GA

$0.99

$

In Stock, Qty 9

0

39

Scag 04021-09

Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

40

Scag 45423

Idler Pivot

$

$

Not available

41

Scag 46748

Idler Arm Assy.

Note: (Inc. 42 & 54)

$

$

Not available

42

Scag 48100-02

Bronze Bearing

$3.49

$

In Stock, only 2 left!

0

43

Scag 04050-05

Retaining Ring, 1-1/8" Ext. "E"

$0.99

$

In Stock, Qty 20+

0

44

Scag 44078

J-Hook

$6.99

$

In Stock, only 2 left!

0

45

Scag 482416

Idler Pulley, Belt Clutch
(Superseded to 483215)

$60.99

$

In Stock, Qty 20+

0

46

Scag 481024

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

47

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

48

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

49

Scag 481035

Nut,1.06-18

$7.99

$

In Stock, only 3 left!

0

50

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

51

Scag 481025

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

52

Scag 48098

Spindle Shield

$2.49

$

In Stock, only 3 left!

0

53

Scag 04029-04

Wing Nut, 3/8-16 (Small) RH side

$2.99

$

In Stock, Qty 19

0

54

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

55

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

56

Scag 04030-03

Lock Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

57

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

58

Scag 423783

Baffle Weldment

$75.99

$

Usually ships in 2-12 days

0
