SW36-13K - Scag 36" Walk-Behind Mower, 12.5hp Kawasaki, Plastic Tanks CUTTER DECK 61" Parts Diagram

36" Walk-Behind Mower, 12.5hp Kawasaki, Plastic Tanks

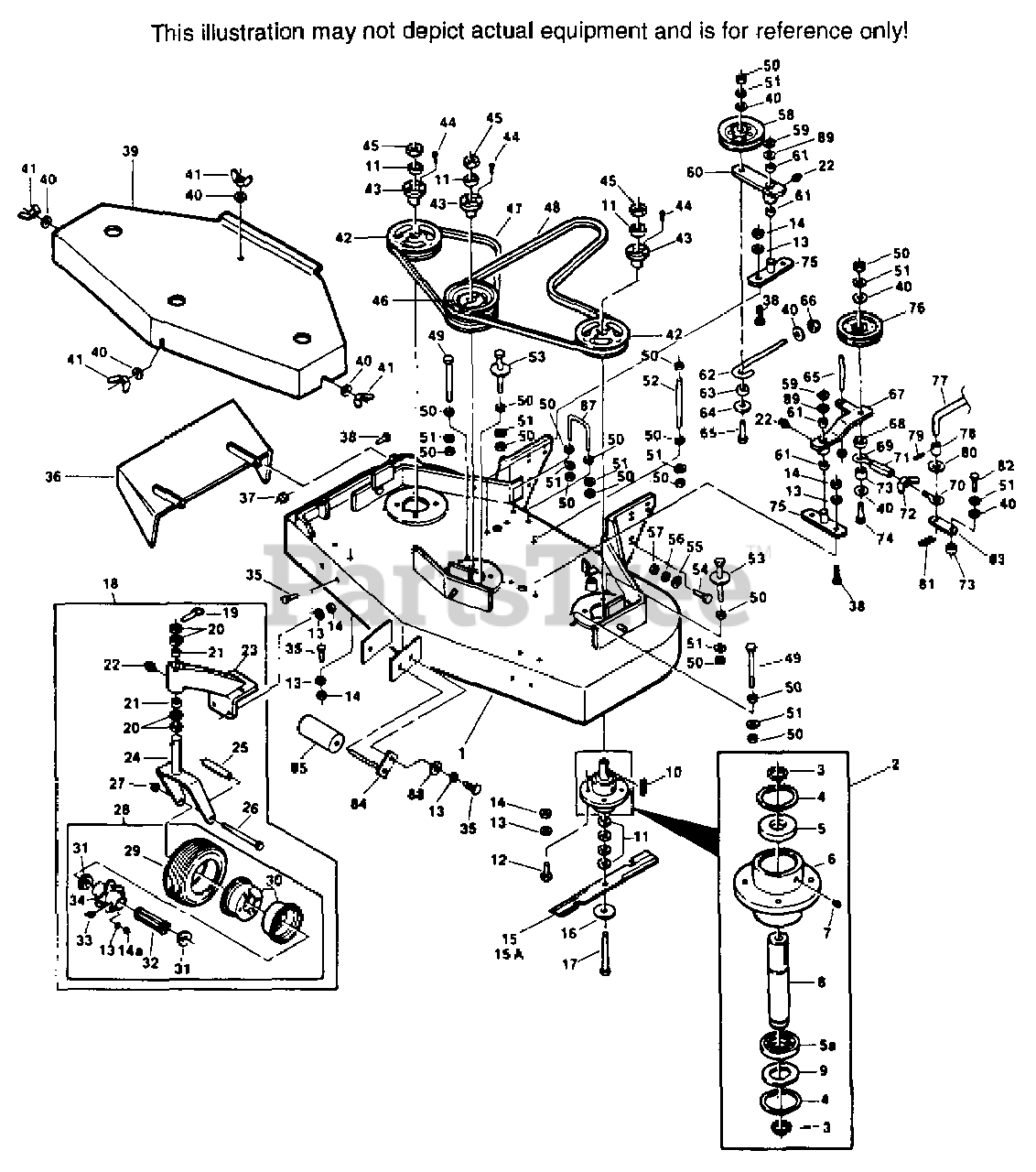

CUTTER DECK 61" Parts Diagram

  • Title

2

Scag 46020

CUTTER SPINDLE ASSY.(INCL. 3-9)
(Superseded to 461663)

$257.99

$

In Stock, Qty 20+

0

3

Scag 04050-04

RETAINING RING, 1" EXT.-INVERTED

$1.99

$

In Stock, Qty 5

0

4

Scag 04050-07

RETAINING RING, 2-7/16" INT.BASIC

$3.99

$

Usually ships in 2-12 days

0

5

Scag 48101-01

BEARING, CUTTER SPINDLE UPPER
(Superseded to 48101-02)

$24.99

$

Usually ships in 2-12 days

0

5A

Scag 48101-02

BEARING, CUTTER SPINDLE LOWER

$24.99

$

Usually ships in 2-12 days

0

6

Scag 41001

SPINDLE HOUSING

$

$

Not available

7

Scag 48114-02

GREASE FITTING STR. 5/16 SERR.

$1.99

$

In Stock, only 3 left!

0

8

Scag 43001-02

SPINDLE, CUTTER BLADE

$52.99

$

In Stock, only 3 left!

0

9

Scag 04041-02

WASHER, 1-5-16 X 2-13/32 X 16 GA

$18.99

$

In Stock, only 2 left!

0

10

Scag 04063-08

KEY, 1/4 X 1/4 X 2

$1.49

$

In Stock, Qty 20+

0

11

Scag 43038

SPACER, CUTTER BLADE
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

HEX HD BOLT, 5/16-18 X 1-1/4

$

$

Not available

13

LOCKWASHER, SPRING, 5/16

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

HEX NUT, 5/16-18

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14A

HEX NUT, 5/16-24

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

16

Scag 04040-10

FLAT WASHER, 5/8"W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

HEX HD BOLT, 5/8-11 X 9-1/2"

$12.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSY, COMP.(INCL. 19-28)

$395.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.49

$

In Stock, Qty 7

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2" LONG

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

BRONZE BEARING

$2.99

$

In Stock, Qty 13

0

22

Scag 48114-01

GREASE FITTING, STR., 1/4-28
(Superseded to 48114-04)

$0.99

$

In Stock, Qty 20+

0

23

Scag 46082

SUPPORT ASSY.(INCL. 21-22)

$148.99

$

In Stock, only 1 left!

0

24

Scag 45006

CASTER YOKE WLD.

$65.99

$

In Stock, only 1 left!

0

25

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

HEX HD BOLT, 1/2-13 X 5-1/2"

$4.49

$

In Stock, Qty 13

0

27

HEX LOCKNUT, 1/2-13

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

28

Scag 48006-01

WHEEL ASSY.(INCL. 13-14A, 29-34)
(Superseded to 48307)

$151.99

$

Usually ships in 2-12 days

0

29

Scag 48006-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$87.99

$

Usually ships in 2-12 days

0

29

Scag 48006-03

INNER TUBE ONLY, CASTER WHEEL
(Superseded to 481773)

$20.99

$

In Stock, only 2 left!

0

30

Scag 48006-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$70.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

RETAINER, BEARING, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$27.99

$

In Stock, only 2 left!

0

33

Scag 48114-03

GREASE FITTING 45' 1/4-28

$10.99

$

In Stock, Qty 6

0

34

Scag 48006-05

HUB ASSY, CASTER WHEEL
(Superseded to 481768)

$64.99

$

Usually ships in 2-12 days

0

35

HEX HD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

37

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

38

HEX HD BOLT, 5/16-18 X 1

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

40

WASHER 25/64 X 15/16 X 12 GA.

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

41

Scag 04022-04

WING NUT, 3/8-16
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

42

Scag 48127

PULLEY(INCL. 43-44)
(Superseded to 482744)

$

$

Not available

43

Scag 48141

TAPERED HUB

$29.99

$

In Stock, only 1 left!

0

44

HEX HD BOLT 1/4-20 X 3/4

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

HEX NUT, 5/8-11

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

46

Scag 48129

PULLEY, DOUBLE(INCL. 43-44)
(Superseded to 48923)

$110.99

$

In Stock, only 1 left!

0

49

HEX HD BOLT, 3/8-16 X 5"

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

50

HEX NUT, 3/8-16

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

50A

HEX NUT 3/8-16, CENTERLOCK

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

LOCKWASHER, SPRING, 3/8

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

52

Scag 04004-02

SUPPORT, BELT COVER

$1.99

$

In Stock, only 4 left!

0

53

Scag 45098

BELT GUIDE WLD.

$15.99

$

Usually ships in 2-12 days

0

54

HEX HD BOLT, 7/16-14 X 1-1/4

$

$

Not available

55

WASHER, 15/32 X 59/64 X 16 GA.

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

56

LOCK WASHER, SPRING, 7/16

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

57

HEX NUT, 7/16-14

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

58

Scag 48181

IDLER PULLEY, "V" GROOVE

$26.99

$

In Stock, Qty 11

0

59

Scag 04050-02

RETAINING RING, 3/4" EXT."E"

$0.99

$

In Stock, Qty 7

0

60

Scag 46081

IDLER ARM ASSY,(INCL. 22 & 66)

$46.99

$

Usually ships in 2-12 days

0

61

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

62

Scag 43028

ROD, IDLER PULL, J

$4.99

$

In Stock, only 2 left!

0

63

Scag 43077

SPACER, J PULL ROD

$4.99

$

In Stock, only 1 left!

0

64

Scag 04041-12

WASHER, 3/8 X 1-1/2 X 16 GA.

$0.99

$

In Stock, Qty 9

0

65

HEX HD BOLT, 3/8-16 X 2-1/4

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

65A

Scag 04004-04

STUD

$2.49

$

Usually ships in 2-12 days

0

66

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

67

Scag 46145

IDLER ARM(INCL. 22 & 61)

$

$

Not available

68

Scag 43063

SPACER

$7.99

$

In Stock, only 2 left!

0

69

Scag 04070-02

EYEBOLT, LH

$

$

Not available

70

Scag 04070-01

EYEBOLT, RH

$26.99

$

In Stock, only 1 left!

0

71

Scag 43025

TURNBUCKLE

$14.99

$

In Stock, only 1 left!

0

72

Scag 04022-02

WING NUT, 5/16-18

$7.99

$

Usually ships in 2-12 days

0

73

Scag 43042

SLEEVE, CAM CLUTCH

$6.49

$

In Stock, only 1 left!

0

74

HEX HD BOLT, 3/8-16 X 2-3/4

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

75

Scag 45037

IDLER PIVOT WLD.

$30.99

$

Usually ships in 2-12 days

0

76

Scag 48269

IDLER PULLEY, BELT CLUTCH
(Superseded to 483215)

$60.99

$

In Stock, Qty 20+

0

77

Scag 44003

BLADE CLUTCH ROD, LOWER
(Superseded to 44064)

$

$

Not available

78

Scag 43043

SLEEVE, CLUTCH ROD

$12.99

$

Usually ships in 2-12 days

0

79

COTTER PIN, 3/32 X 1

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

80

WASHER, 33/64 X 1 X 16 GA

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

81

Scag 04062-01

HAIR PIN LARGE

$0.99

$

In Stock, Qty 20+

0

82

HEX HD BOLT, 3/8-16 X 1

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

83

Scag 42057

CAM LINK

$84.99

$

Usually ships in 2-12 days

0

87

Scag 44008

BELT GUIDE

$

$

Not available

88

FLAT WASHER, 5/16

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
