SW32-481FS - Scag 32" Walk-Behind Mower, Kawasaki 481FS (SN: H2200001 - H2299999) SW Fuel System Parts Diagram

32" Walk-Behind Mower, Kawasaki 481FS

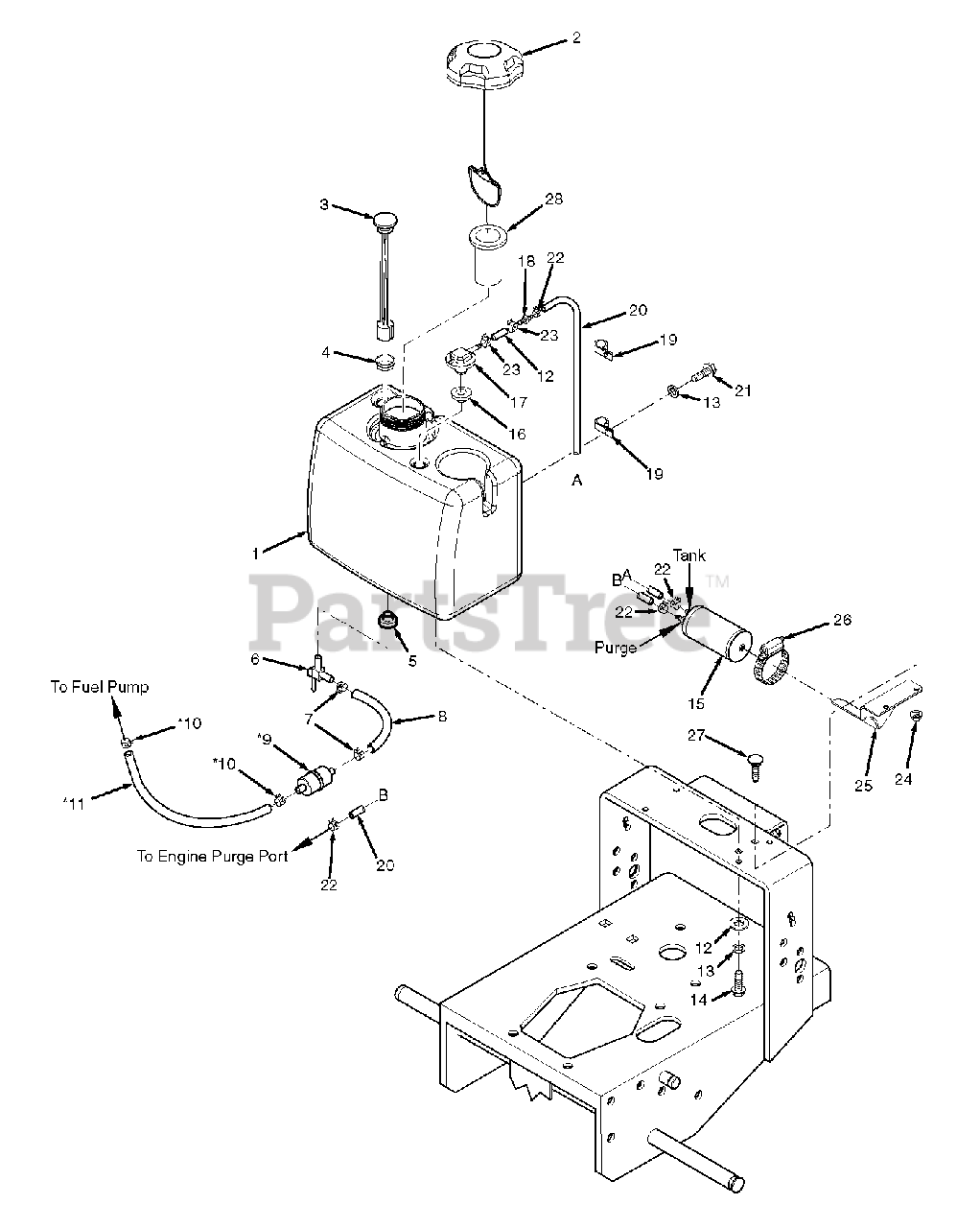

SW Fuel System Parts Diagram

  • Title
1

Scag 462375

Fuel Tank Assembly
(Superseded to 463029)

Note: (incl. #3, 4, 5, 6, 16, 17)

$471.99

$

Usually ships in 2-12 days

0

2

Scag 484286

Fuel Cap w/ Tether

$53.99

$

In Stock, Qty 7

0

2

Scag 484297

Fuel Cap w/Tethered - California Models Only

Note: (not shown)

$63.99

$

Usually ships in 2-12 days

0

3

Scag 484259

Fuel Gauge Assembly

Note: (incl. #4)

$77.99

$

In Stock, only 1 left!

0

4

Scag 484242

Seal, Fuel Gauge

$21.99

$

In Stock, Qty 10

0

5

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

6

Scag 483747

Ball Valve w/Screen

$29.99

$

In Stock, Qty 17

0

7

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" ID (order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

10

Clamp, Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

11

Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

12

Scag 484347

Hose, Vapor Recovery 1/4" (order by inch)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

15

Scag 484287

Carbon Canister

$93.99

$

In Stock, only 1 left!

0

16

Scag 484285

Grommet, Viton,

$

$

Not available

17

Scag 484333

Fitting, Remote Vent

$14.99

$

In Stock, Qty 19

0

18

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, Qty 5

0

19

Scag 48030-22

Clamp, 3/8"

$1.99

$

Usually ships in 2-12 days

0

20

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 4 left!

0

23

Scag 48059-02

Clamp, Fuel Hose 7/32" ID

$0.99

$

In Stock, Qty 19

0

24

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Scag 452176

Bracket, Canister Mounting

$35.99

$

In Stock, only 1 left!

0

26

$7.49

$

Usually ships in 2-12 days

0

27

Scag 04003-04

Bolt, Carriage 5/16-18 X 1"

$0.99

$

In Stock, Qty 17

0

28

Scag 484279-01

Tube, Fuel Tank Insert - 4"

$4.49

$

In Stock, only 1 left!

0
