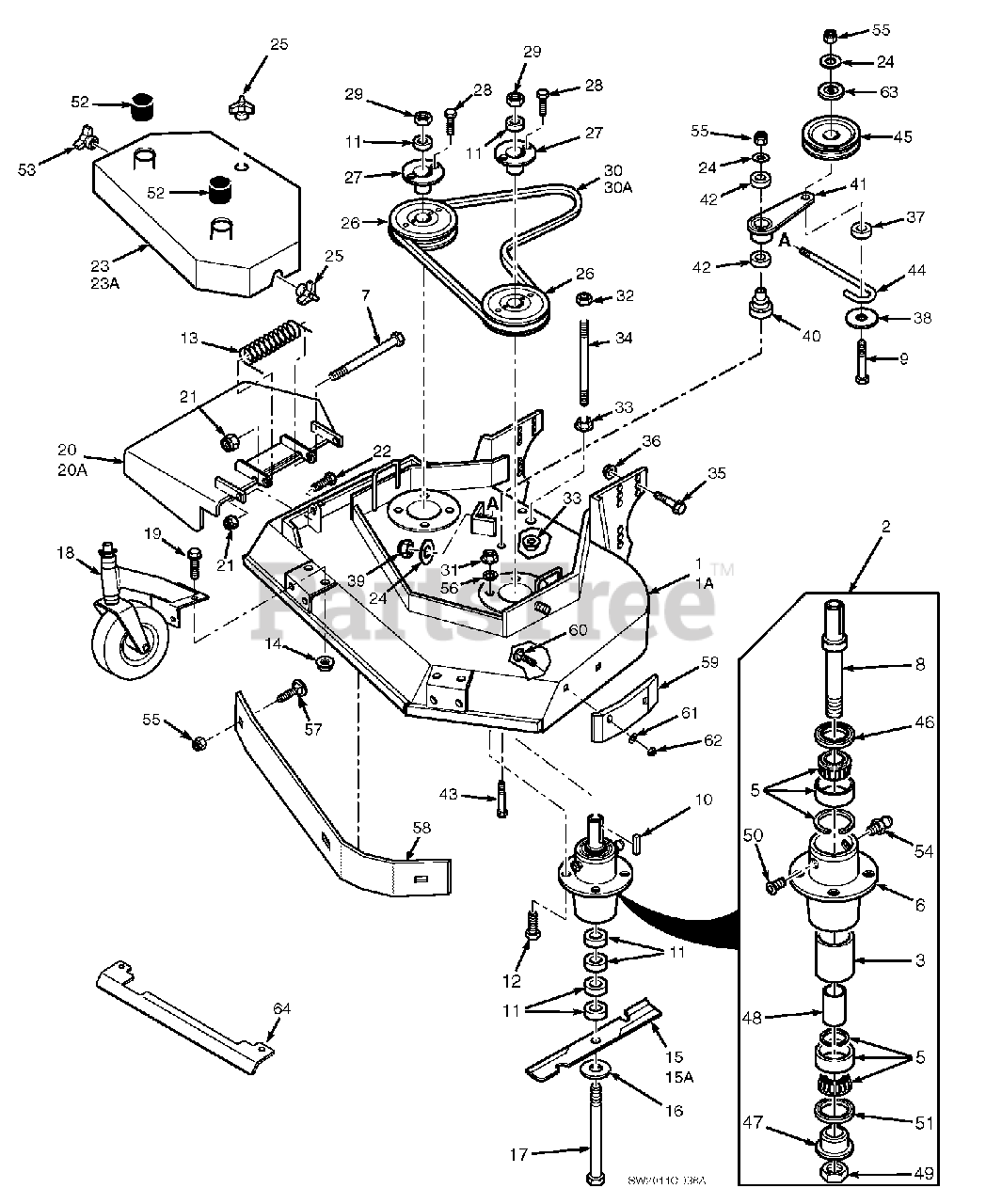

SW32-481FS - Scag 32" Walk-Behind Mower, Kawasaki 481FS (SN: F9500001 - F9599999) 32 & 36A Cutter Decks Parts Diagram

32" Walk-Behind Mower, Kawasaki 481FS

32 & 36A Cutter Decks Parts Diagram

  • Title

1

Scag 461847

Cutter Deck w/Decals

$1183.99

$

Usually ships in 2-12 days

0

1A

Scag 461848

Cutter Deck w/Decals

$1458.99

$

Usually ships in 2-12 days

0

2

Scag 461663

Cutter Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

3

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

5

Scag 481022

Bearing, Tapered

$59.99

$

In Stock, Qty 15

0

6

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

7

Scag 04001-154

Bolt, 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

8

Scag 43589

Spindle Shaft

$58.99

$

In Stock, only 1 left!

0

9

Scag 04001-51

Bolt, 3/8-16 x 3-3/4" Hex Head

$1.49

$

In Stock, Qty 8

0

10

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43592

Spacer, Cutter Blade - Small

$4.49

$

In Stock, Qty 20+

0

12

Scag 04001-175

Bolt, 5/16-18 x 1-1/2" Hex Head Grade 8

$0.99

$

Usually ships in 2-12 days

0

13

Scag 482245

Spring, Chute Return

$10.99

$

In Stock, Qty 5

0

14

Scag 04019-03

Nut 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

15

Scag 481706

Cutter Blade, 16-1/2"

$20.99

$

In Stock, Qty 20+

0

15

Scag 481707

Cutter Blade, 18"

$23.99

$

In Stock, Qty 20+

0

15A

Scag 481710

Cutter Blade 16-1/2 Hi-Lift

$40.99

$

Usually ships in 2-12 days

0

15A

Scag 481711

Cutter Blade, 18 Hi-Lift

$40.99

$

In Stock, only 3 left!

0

16

Scag 04043-06

Flatwasher, 5/8 W

$1.99

$

In Stock, Qty 20+

0

17

Scag 04001-41

Hex Hd. Bolt, 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

18

Scag 461023

Caster Assembly

$417.99

$

Usually ships in 2-12 days

0

19

Scag 04017-16

Cpscrw,5/16-18 x 3/4" Ser.Flg. Hex Head

$0.99

$

In Stock, Qty 10

0

20

Scag 46

Discharge Chute

$

$

Currently unavailable

20A

Scag 46

Discharge Chute

$

$

Currently unavailable

21

Scag 04021-10

Hex Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-09

Hex Hd Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

23

Scag 462392

Belt Cover Assy

Note: (Incl. Decal)

$177.99

$

Usually ships in 2-12 days

0

23A

Scag 462393

Belt Cover Assy

Note: (Incl. Decal)

$152.99

$

Usually ships in 2-12 days

0

24

Scag 04043-04

Flat Washer, 3/8" Special

$0.99

$

In Stock, Qty 20+

0

25

Scag 04029-03

Wing Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

26

Scag 482744

Pulley

$30.99

$

Usually ships in 2-12 days

0

27

Scag 48926

Tapered Hub

$30.99

$

In Stock, Qty 20+

0

28

Scag 04001-172

Hex Hd. Bolt, 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

30

Scag 48278

Belt, Blade Drive

$61.99

$

In Stock, Qty 5

0

30A

Scag 48204

Belt, Blade Drive

$40.99

$

In Stock, Qty 5

0

31

Scag 04021-22

Elastic Stop Nut, 5/16-18 Grade 8

$0.99

$

In Stock, Qty 20+

0

32

Scag 04021-05

Hex Nut, 3/8-16 Center Locknut

$0.99

$

In Stock, Qty 20+

0

33

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

34

Scag 04004-02

Support, Belt Cover

$1.99

$

In Stock, only 4 left!

0

35

Scag 04017-36

Cpscrw, 1/2-13 x 1"Ser.Flg. HH

$2.99

$

In Stock, only 2 left!

0

36

Scag 04112-05

Nut, 1/2-13 Spiralock

$2.99

$

Usually ships in 2-12 days

0

37

Scag 43277

Spacer, J-Hook

$6.49

$

In Stock, only 1 left!

0

38

Scag 04041-12

Flatwasher, 3/8 x 1-1/2 x 16 GA

$0.99

$

In Stock, Qty 9

0

39

Scag 04021-09

Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

40

Scag 43681

Idler Pivot

$23.99

$

In Stock, only 1 left!

0

41

Scag 461841

Idler Arm Assy.

Note: (Inc. 42)

$66.99

$

Usually ships in 2-12 days

0

42

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

43

Scag 04001-62

Cpscrw, 3/8-16 x 3-1/4" Hex Head

$1.49

$

In Stock, Qty 12

0

44

Scag 44078

J-Hook

$6.99

$

In Stock, only 2 left!

0

45

Scag 483215

Idler Pulley, Belt Clutch

$60.99

$

In Stock, Qty 20+

0

46

Scag 481024

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

47

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

48

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

49

Scag 481035

Nut,1.06-18

$7.99

$

In Stock, only 3 left!

0

50

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

51

Scag 481025

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

52

Scag 484368

Spindle Shield

$4.99

$

In Stock, Qty 20+

0

53

Scag 04029-04

Wing Nut, 3/8-16 (Small) RH side

$2.99

$

In Stock, Qty 19

0

54

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

55

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

56

Scag 04030-03

Lock Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

57

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

58

Scag 423783

Baffle Weldment

$75.99

$

Usually ships in 2-12 days

0

59

Scag 483174

Pad, Deck Wear

$33.99

$

In Stock, only 2 left!

0

60

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

61

Scag 04040-04

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

62

Scag 04021-04

Hex Nut, 5/16-18 Center Locknut

$0.99

$

In Stock, Qty 20+

0

63

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

64

Scag 424661

Heatshield

$16.99

$

Usually ships in 2-12 days

0
