SW32-13KH - Scag 32" Walk-Behind Mower, 13hp Kohler (SN: 8910001 - 8919999) Handle Assembly Parts Diagram

32" Walk-Behind Mower, 13hp Kohler

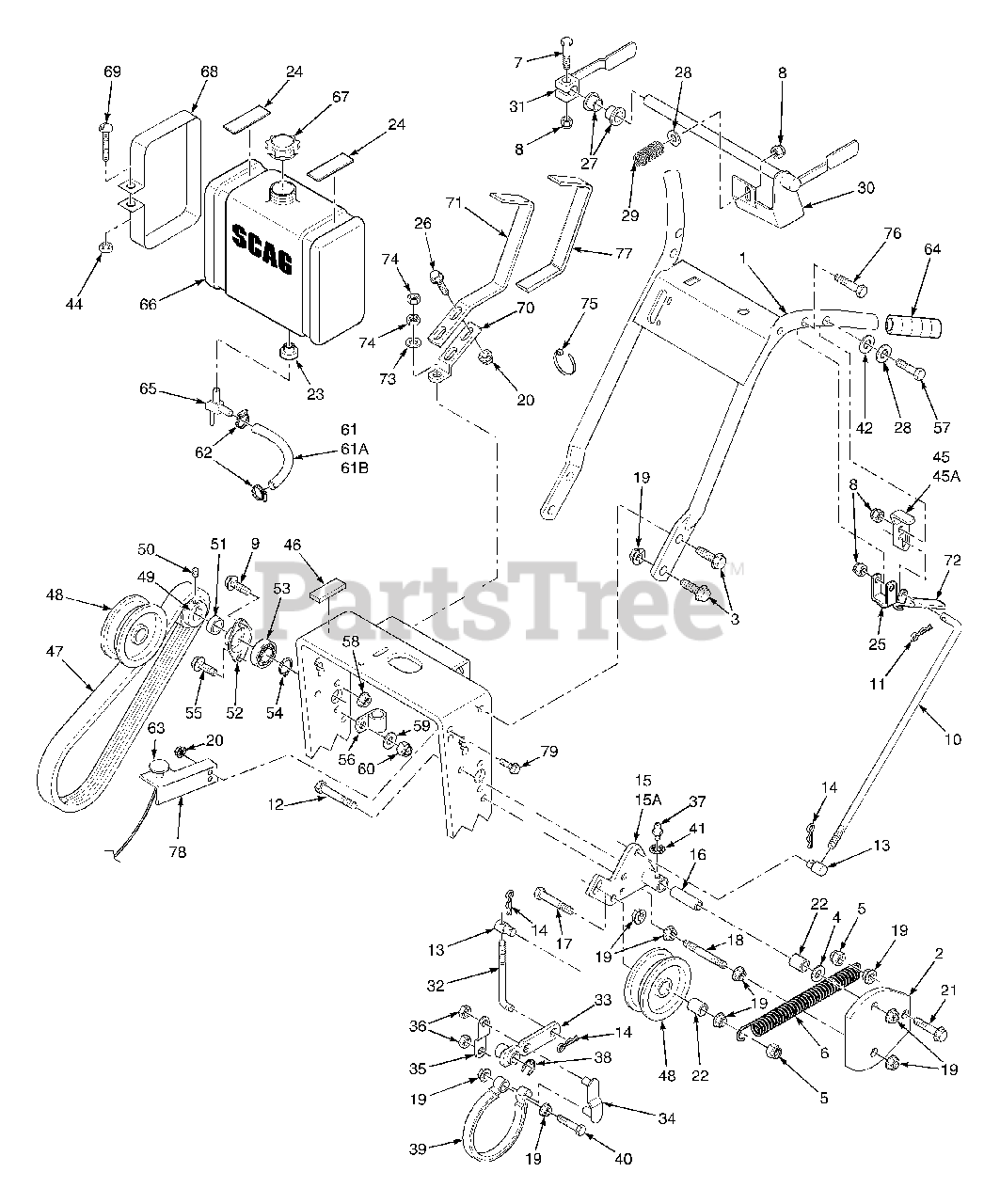

Handle Assembly Parts Diagram

  • Title

1

Scag 461597

Handle Assembly
(Superseded to 461972)

$752.99

$

Usually ships in 2-12 days

0

2

Scag 421360

Belt Guard

$25.99

$

Usually ships in 2-12 days

0

3

Scag 04017-27

Capscrw, 3/8-16 x 1" Serr. Flg.

$1.49

$

In Stock, Qty 20+

0

4

Scag 04041-07

Washer, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

6

Scag 48755

Spring, Idler

$10.99

$

In Stock, only 2 left!

0

7

Scag 04001-10

Bolt, 5/16-18 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

8

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

9

Scag 04017-05

Capscrew, 1/4-20 x 3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

10

Scag 44140

Control Rod, Steering

$20.99

$

Usually ships in 2-12 days

0

11

Scag 04062-02

Hair Pin, Small

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-23

Bolt, 3/8-16 x 4-1/2" Hex Head

$2.49

$

In Stock, Qty 7

0

13

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 8

0

14

Scag 04062-01

Hair Pin, Large .094 Diameter

$0.99

$

In Stock, Qty 20+

0

15

Scag 45847

Idler Bracket, RH

$45.99

$

In Stock, only 1 left!

0

15A

Scag 45846

Idler Bracket, LH

$45.99

$

In Stock, only 2 left!

0

16

Scag 43092

Idler Sleeve

$6.49

$

Usually ships in 2-12 days

0

17

Scag 04001-62

Bolt, 3/8-16 x 3/4" Hex Head

$1.49

$

In Stock, Qty 14

0

18

Scag 04004-17

Support Belt Guard

$2.99

$

In Stock, Qty 13

0

19

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

21

Scag 04017-28

Cpscrw, 3/16-18 x 1-1/4" Serr. Flg.

$1.49

$

In Stock, Qty 8

0

22

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

23

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

24

Scag 48292

Rubber Pad, (Upper)

$3.99

$

In Stock, only 2 left!

0

25

Scag 46089

Steering Lever
(Superseded to 483042)

$44.99

$

In Stock, only 1 left!

0

26

Scag 04017-17

Capscrew, 5/16-18 x 1" Serr. Flg.

$0.99

$

Usually ships in 2-12 days

0

27

Scag 48312

Bushing

$0.99

$

In Stock, Qty 10

0

28

Scag 04040-15

Washer, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

29

Scag 48951

Spring, Operator Presence

$0.99

$

In Stock, only 1 left!

0

30

Scag 45573

Operator Presence Lever, LH

$60.99

$

Usually ships in 2-12 days

0

31

Scag 45572

Operator Presence Lever, RH

$54.99

$

Usually ships in 2-12 days

0

32

Scag 44005

Brake Rod

$7.49

$

Usually ships in 2-12 days

0

33

Scag 45092

Brake Lever

$32.99

$

Usually ships in 2-12 days

0

34

Scag 45093

Brake Link

$22.99

$

Usually ships in 2-12 days

0

35

Scag 42254

Brake Link Plate

$14.99

$

Usually ships in 2-12 days

0

36

Scag 04024-01

Nut, 3/8 Push-on

$1.49

$

Usually ships in 2-12 days

0

37

Scag 48114-05

Grease Fitting, Straight 1/4-28

$1.49

$

In Stock, Qty 9

0

38

Scag 04050-01

Retaining Ring, 5/8 Ext. "E"

$0.99

$

In Stock, Qty 20+

0

39

Scag 48210

Brake Band

$34.99

$

In Stock, only 4 left!

0

40

Scag 04001-45

Bolt, 3/8-16 x 2" Hex Head

$0.99

$

In Stock, Qty 9

0

41

Scag 04031-08

1/4" Internal Tooth Lockwasher

$0.99

$

In Stock, Qty 10

0

42

Scag 04032-01

Curved Spring Washer

$0.99

$

In Stock, only 3 left!

0

43

Scag 04015-13

Socket Head Capscrew #8-32 x 1/2"

$0.99

$

In Stock, Qty 9

0

44

Scag 04020-02

Nut, 1/4-20 Hex

$0.99

$

In Stock, Qty 10

0

45

Scag 461242

Neutral Latch, RH

$15.99

$

Usually ships in 2-12 days

0

45A

Scag 461241

Neutral Latch, LH

$14.99

$

Usually ships in 2-12 days

0

46

Scag 48205

Rubber Pad (Lower)

$4.49

$

Usually ships in 2-12 days

0

47

Scag 48202A

Belt, Wheel Drive

$104.99

$

In Stock, Qty 11

0

48

Scag 48198

Idler Pulley, Wheel Drive
(Superseded to 483211)

$43.99

$

In Stock, only 1 left!

0

49

Scag 482645

Pulley, Jackshaft
(Superseded to 48199)

Note: (Inc. 50)

$51.99

$

In Stock, only 2 left!

0

50

Scag 04012-04

Setscrew, Hex Socket Knurl Cup Pt. 5/16-18 (nylock)

$0.99

$

In Stock, Qty 14

0

51

Scag 43098

Spacer, Jackshaft Pulley

$3.49

$

Usually ships in 2-12 days

0

52

Scag 48223

Flange, Jackshaft Bearing

$5.99

$

In Stock, only 2 left!

0

53

Scag 48224

Bearing, Jackshaft

$13.99

$

In Stock, Qty 20+

0

54

Scag 04050-09

Retaining Ring, 5/8 Ext. Basic

$0.99

$

In Stock, Qty 20+

0

55

Scag 04017-06

Capscrew, 1/4-20 x 1" Serr. Flg.

$0.99

$

Usually ships in 2-12 days

0

56

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

57

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 6

0

58

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

59

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

60

Scag 04021-02

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 5

0

61

Scag 48058

Fuel Hose,1/4" ID, 10" (KH Only)
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

61A

Fuel Hose,1/4" ID, 23" (KA Only)

Note: Not used on this model.

$

$

Not available

61B

Fuel Hose,1/4" ID, 26" (Honda Only)

Note: Not used on this model.

$

$

Not available

62

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

63

Choke Control

Note: Not used on this model.

$

$

Not available

64

Scag 48159

Grip, Handle

$3.49

$

In Stock, Qty 8

0

65

Scag 48308

Valve, Fuel Shut Off
(Superseded to 483747)

$30.99

$

In Stock, only 4 left!

0

66

Scag 46846

Fuel Tank Assy.

Note: (Incl. Bush. & Val.)

$248.99

$

In Stock, only 1 left!

0

67

Scag 481603

Fuel Tank Cap
(Superseded to 483791)

$36.99

$

Usually ships in 2-12 days

0

68

Scag 421239

Strap, Fuel Tank

$25.99

$

In Stock, only 4 left!

0

69

Scag 04010-10

Screw, 1/4-20 x 2" Rnd Hd Slotted

$0.99

$

In Stock, Qty 12

0

70

Scag 422279

Shift Lever

$11.99

$

In Stock, only 1 left!

0

71

Scag 461163

Shift Lever Extention

Note: (incl. 77)

$53.99

$

In Stock, only 1 left!

0

72

Scag 48144

Grip, Steering Lever

$1.49

$

Usually ships in 2-12 days

0

73

Scag 04041-07

Washer, 3/8 (.391x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

74

Scag 04020-14

Nut, 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

75

Scag 48028-05

Cable Tie

$

$

Not available

76

Scag 04001-53

Bolt, 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

77

Scag 481839

Grip, Shift Handle

$8.99

$

Usually ships in 2-12 days

0

78

Bracket, Choke Mt.

Note: Not used on this model.

$

$

Not available

79

Scag 04017-16

Capscrew, 5/16-18 x 3/4" Serr. Flg

$0.99

$

In Stock, Qty 10

0
