SW 5 (5900966) - Snapper Pro SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge Handle Bar Group Parts Diagram

SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge

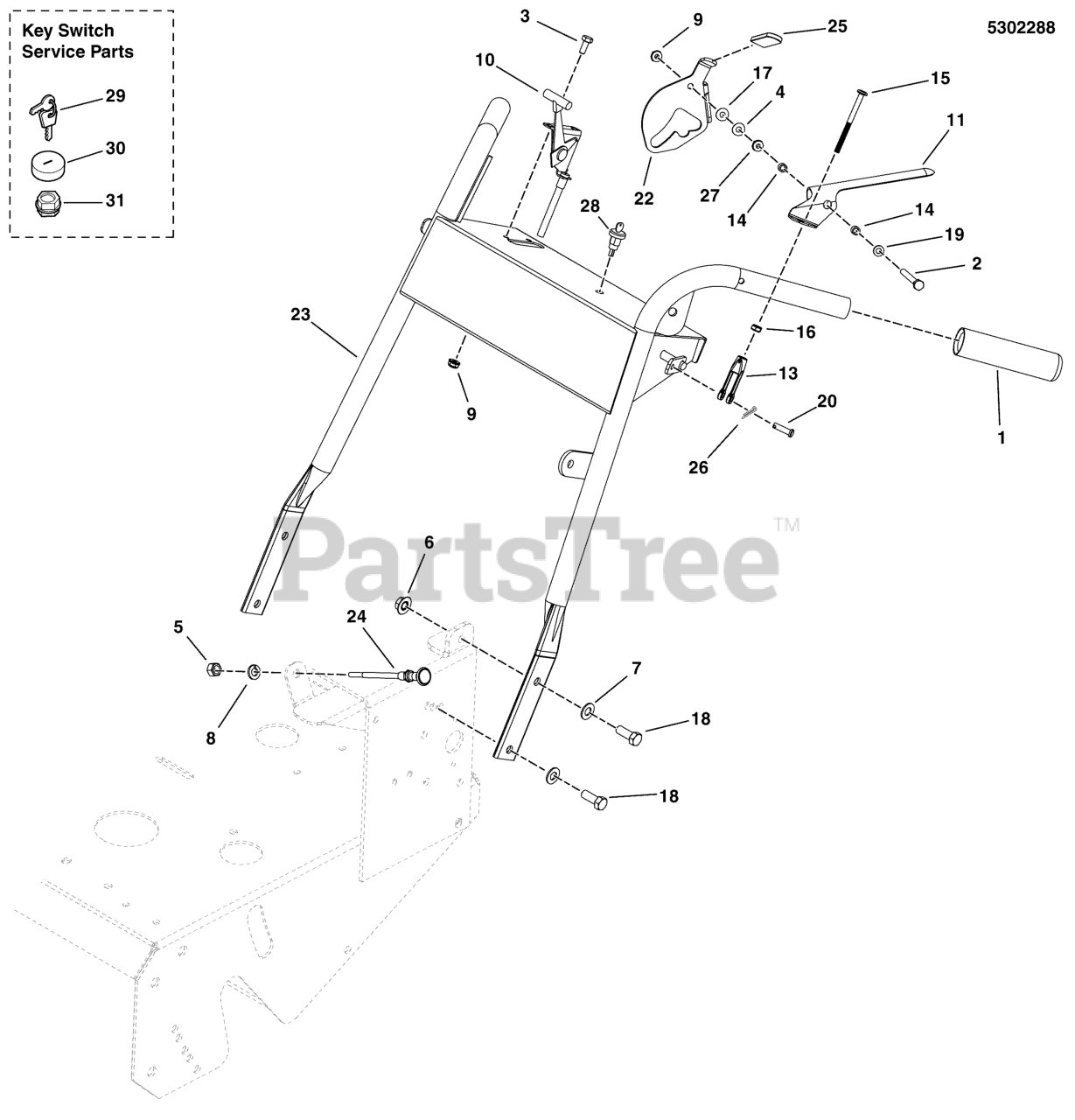

Handle Bar Group Parts Diagram

  • Title

1

Snapper Pro 5104659

GRIM, FOAM, .940" ID X 4.62" X .187", BLK
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025567X22

BOLT, HEX, 1/4-20 X 2-3/4, TFL, GD5, CZ

$

$

Currently unavailable

3

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

4

Snapper Pro 1960353

WASHER-0.250(0.26IDX0.84ODX.12THK) YEL
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

5

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025171

WASHER, 3/8 SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

10

Snapper Pro 5047629

CABLE, THROTTLE CONTROL, 48"
(Superseded to 5047629SM)

$62.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5104202A

NLA - FLAP, OPS - BLK

$28.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5104201A

NLA - FLAP, OPS - BLK
(Superseded to 5104201AAFS)

Note: (Not Shown)

$32.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5102813

SPACER, .265 X .375 X .25, CZ
(Superseded to 5102813FS)

$14.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5102292

ROD, OPC LINK, CCW

$69.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025564

WASHER, WAVE, .31 X .70 X .01, SS

$

$

Currently unavailable

18

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

19

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5407815A

THUMB LOCK LEVER, RH - BLK
(Superseded to 5407815AFS)

Note: (Not Shown)

$11.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5407816A

THUMB LOCK LEVER, LH - BLK
(Superseded to 5407816AFS)

$11.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5407298D

WELD, HANDLE BAR, SW5 - RED

$

$

Currently unavailable

24

Snapper Pro 5102875

CABLE, CHOKE CONTROL, 35.25" DETENTED

$30.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5103047

GRIP, 1/8X5/8X1-1/2, BLK VINYL, RD END

$

$

Currently unavailable

26

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025287

NUT, 1/4-20 HEX SIDE LOCK
(Superseded to 5025287SM)

$2.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5021842

SWITCH, IGNITION, 2 POST
(Superseded to 5021842SM)

$37.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

30

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

31

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0
