SW 5 (5900966) - Snapper Pro SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge Gear Box & Mount Group Parts Diagram

SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge

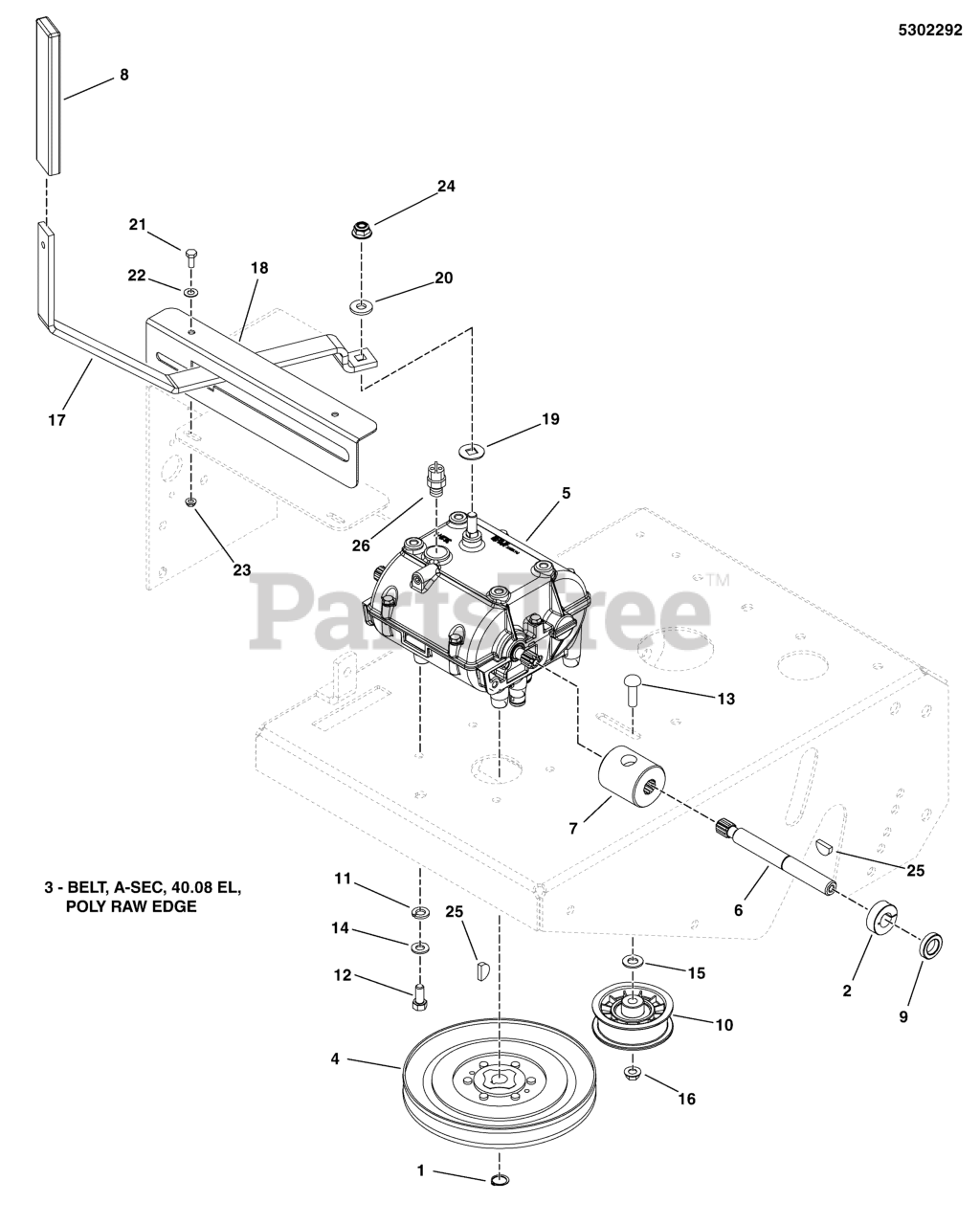

Gear Box & Mount Group Parts Diagram

  • Title

1

Snapper Pro 5020107

RING, RETAINING

$2.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5020441

COLLAR, 5/8 SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5103091

BELT, A-SEC, 39" EL

Note: (Not Shown)

$27.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021819

PULLEY-DRIVE-V, 7.85OB, .625ID, .93W,STL

$92.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5022246

GEARBOX, MODEL 700-070A

$912.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5022247

SHAFT, GEARBOX OUTPUT

$45.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5022248

COUPLER, GEARBOX OUTPUT

$40.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5102811

GRIP, FOAM, 1/4 X 1 X 6-3/4"
(Superseded to 5025510)

$6.49

$

In Stock, Qty 12

0

9

Snapper Pro 5041477

SPACER, .63 X 1.06 X .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5043613

IDLER PULLEY ASSEMBLY
(Superseded to 5043613YP)

$56.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

13

Snapper Pro 7091158

RHSSNB, 3/8C X1-3/4 G5 ZP
(Superseded to 703879)

$3.99

$

In Stock, Qty 5

0

14

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper Pro 5407269D

BGF GEAR SELECTOR HANDLE - RED

$33.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5407321D

GUIDE, GEAR SELECTOR - RED

$18.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5102893

WASHER, TRANSMISSION, SW5

$9.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5102911

BELLEVILLES WASHER, .38 X .875 X .109

$

$

Currently unavailable

21

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4, GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

22

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025097

NUT, 3/8-24 HEX NYLON LOCK
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5022058

KEY, #9 HI-PRO WOODRUFF

$3.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5021843

SWITCH, GEARBOX NEUTRAL

$99.99

$

Usually ships in 2-12 days

0
