SW 5 (5900966) - Snapper Pro SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge 32" Mower Deck - Rollers & Casters Parts Diagram

SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge

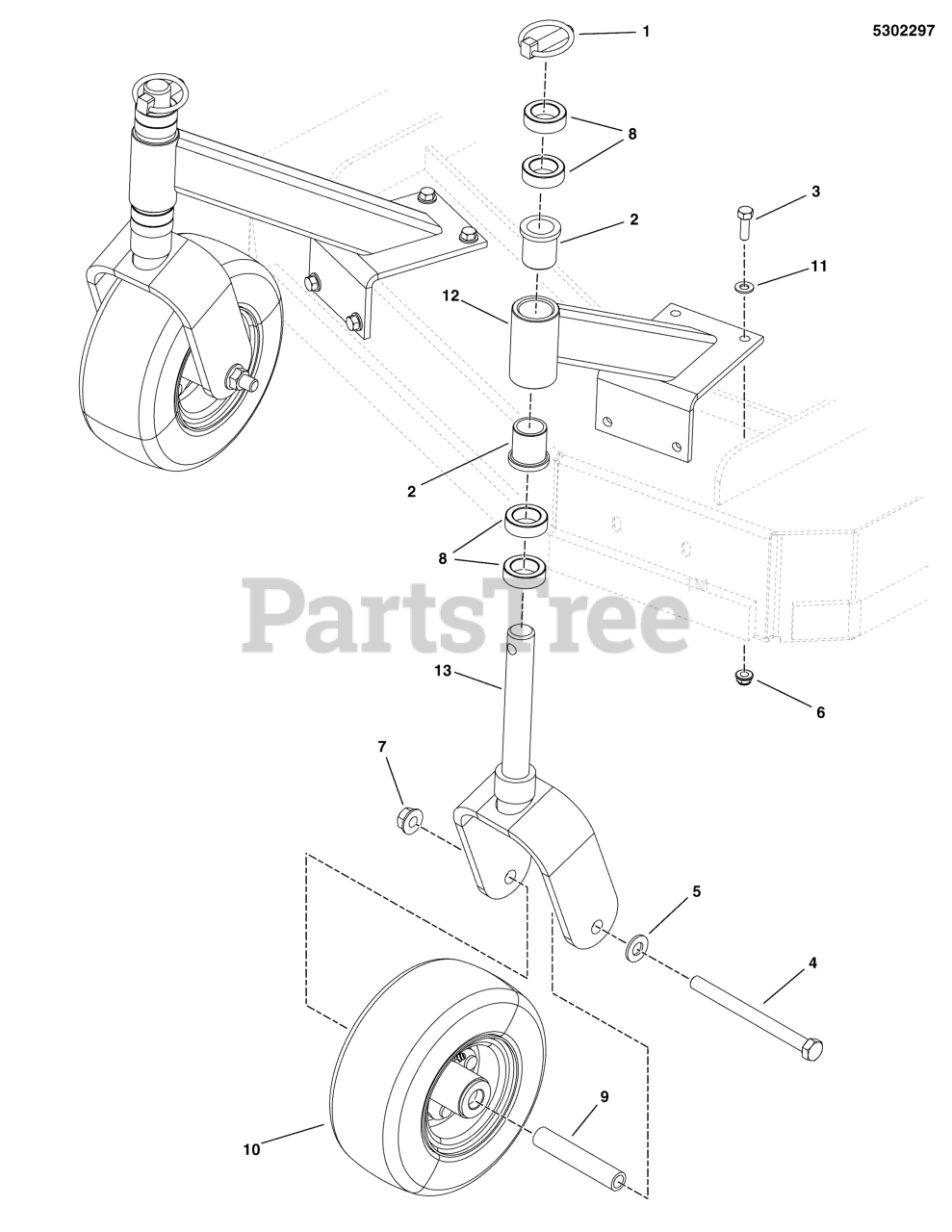

32" Mower Deck - Rollers & Casters Parts Diagram

  • Title

1

Snapper Pro 5020655

PIN, LYNCH, 7/16
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

3

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

4

Snapper Pro 5025017X48

BOLT, 1/2-13 X 6 GD5 YZ
(Superseded to 5025017X48SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

6

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

8

Snapper Pro 5041476

SPACER, 1.02 X 1.56 X .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 3 left!

0

9

Snapper Pro 5041657

AXLE, CASTER WHEEL
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5100790

FLAT FREE TIRE ASSY, 9.00 X 3.50 - 4.00
(Superseded to 5100790FS)

$116.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

12

Snapper Pro 5600501

ASSM, CASTER ARM, SW5

Note: (Includes items 2 & 14)

$182.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5407080D

WELD, CASTER WHEEL MOUNT - RED

$154.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

Note: (Not Shown)

$3.99

$

In Stock, only 3 left!

0
