SW 5 (5900966) - Snapper Pro SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge 32" Mower Deck - Pulleys, Belt & Idler Parts Diagram

SW5 Series 32" Walk-Behind Mower, 16hp Briggs & Stratton, Side-Discharge

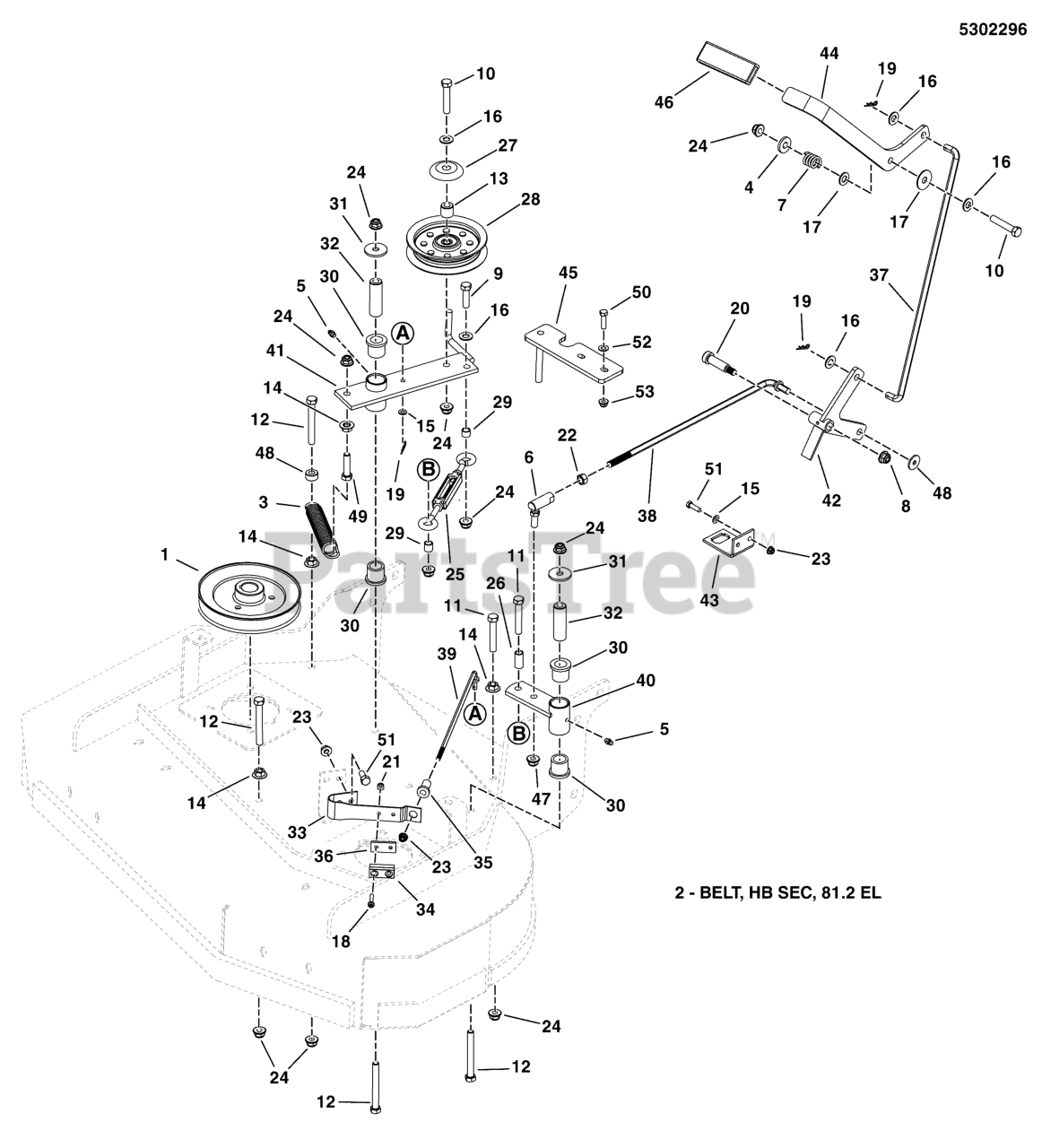

32" Mower Deck - Pulleys, Belt & Idler Parts Diagram

  • Title

1

Snapper Pro 5023178

PULLEY-6.122 OD. X .98 BORE
(Superseded to 5023178SM)

$71.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5102013

BELT, HB SEC, 81.2EL
(Superseded to 5107757FS)

Note: (Not illustrated).

$90.99

$

In Stock, Qty 14

0

3

Snapper Pro 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

4

Snapper Pro 1922755

WASHER-0.375(0.41IDX1.00ODX.13THK)BLK
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

5

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5020805

BALL JOINT, 3/8-24 FEM, STUD
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5020808

SPRING, COMPRESSION

$

$

Currently unavailable

8

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

10

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

11

Snapper Pro 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

13

Snapper Pro 5101965

SPACER, .390 X 1.00 X .188, CZ
(Superseded to 5101965YP)

$6.49

$

In Stock, only 1 left!

0

14

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

15

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

18

Snapper Pro 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

20

Snapper Pro 5025220

BOLT-3/8-16 x 1-1/2, 1/2 SHOULDER
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

24

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

25

Snapper Pro 5041852

TURNBUCKLE ASSY

$40.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5044959

SPACER, .38 X .50 X 1.00
(Superseded to 5044959FS)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

28

Snapper Pro 5101380

PULLEY-IDLER, 4.06OD, .375ID, .75W STL
(Superseded to 5101380YP)

$51.99

$

In Stock, only 1 left!

0

29

Snapper Pro 5101448

SPACER, .38 X .50 X .38, CZ
(Superseded to 5101448YP)

$7.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5101642

BUSHING, FLANGED, 3/4 X 1 X 1
(Superseded to 5101642YP)

$8.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5101964

WASHER, .390 X 1.38 X .109, YZ

$2.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5102707

SPACER, .39 X .75 X 2.375, CZ

$

$

Not available

33

Snapper Pro 5102779

SPRING, PULLEY BRAKE

$

$

Currently unavailable

34

Snapper Pro 5102780

PAD, PULLEY BRAKE

$16.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5102827

BUSHING, .312 X .50 X 1.00, FLG

$10.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5102877

SPACER, BRAKE PAD, SW5

$18.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5102885

ROD, PTO, UPPER, SW5

$17.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 5102886

ROD, PTO, LOWER, SW5

$23.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5102887

ROD, BRAKE CONTROL, DECK, SW5

$

$

Currently unavailable

40

Snapper Pro 5407339D

WELD, BLADE ENGAGEMENT ARM - RED

$

$

Currently unavailable

41

Snapper Pro 5407340D

WELD, IDLER ARM - RED

$

$

Currently unavailable

42

Snapper Pro 5407351D

WELD, BLADE ENGAGEMENT PIVOT - RED

$

$

Currently unavailable

43

Snapper Pro 5407388D

BRACKET, SWITCH MOUNT - RED

$

$

Currently unavailable

44

Snapper Pro 5407462D

PLATE, BLADE ENGAGEMENT - RED

$20.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5407579D

WELD, ADJUSTABLE BELT KEEP - RED

$

$

Currently unavailable

46

Snapper Pro 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

47

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

48

Snapper Pro 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

51

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

52

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

53

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
