SW 5 (5900538) - Snapper Pro SW5 Series 32" Walk-Behind Mower, 15hp Kawasaki, Side-Discharge Ground Drive Group Parts Diagram

SW5 Series 32" Walk-Behind Mower, 15hp Kawasaki, Side-Discharge

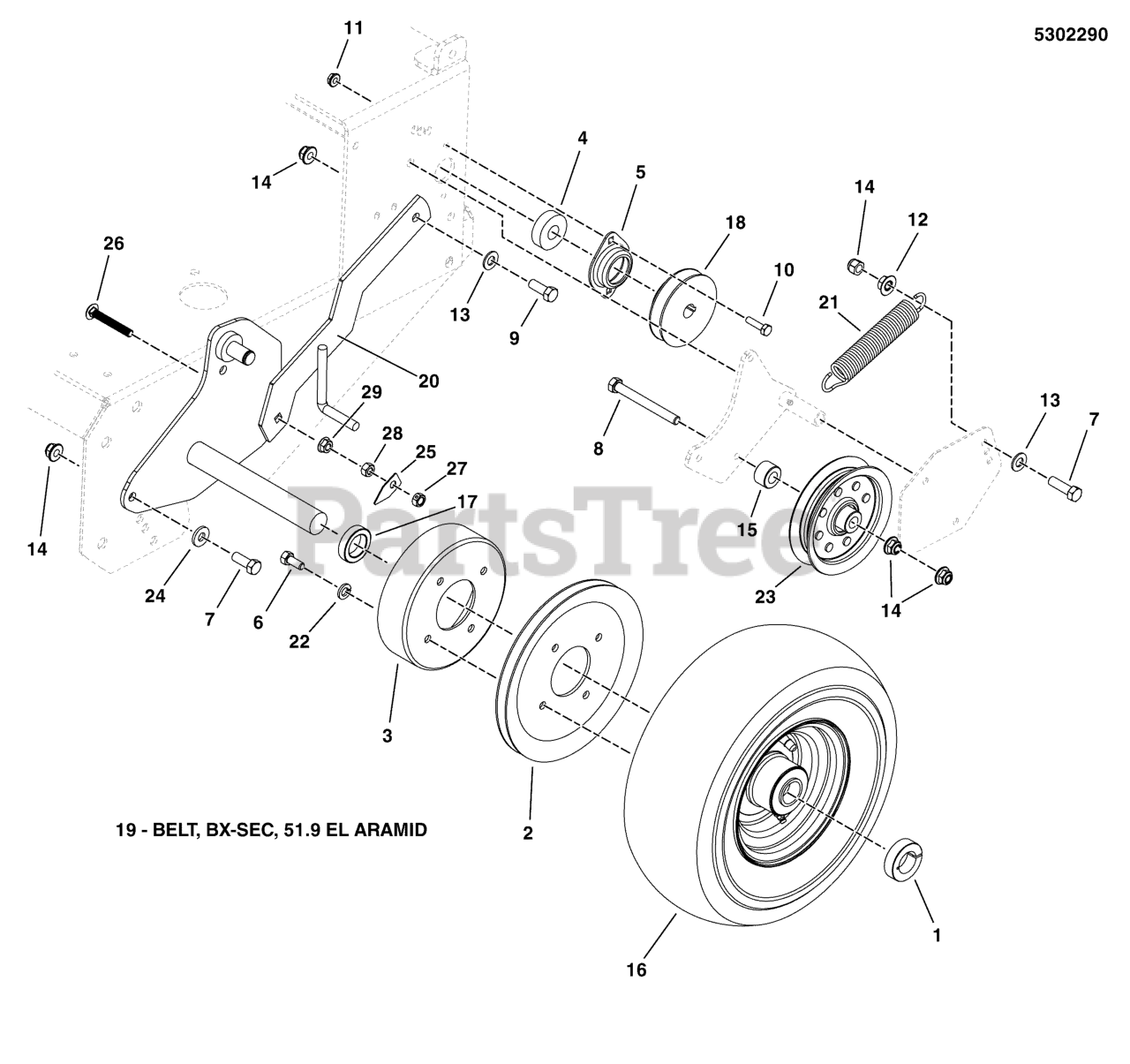

Ground Drive Group Parts Diagram

  • Title

1

Snapper Pro 5020602

COLLAR, 1 SPLIT
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5102785

PULLEY, 8" OD, B-SEC, BGF32

$32.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5021441

DRUM, 6 BRAKE

$32.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021845

BEARING, 5/8

$21.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021846

FLANGE, 5/8 BEARING MOUNT

$14.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

7

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

8

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

9

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

10

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

13

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Snapper Pro 5046860

SPACER, .39 X 1.00 X .50, CZ
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

16

Snapper Pro 5102680

TIRE/WHEEL ASM, 13 X 5, BELT DRIVE

$343.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5102694

SPACER, 1.02 X 1.56 X .38

$

$

Currently unavailable

18

Snapper Pro 5102743

PULLEY, 3.25 OD X .625 ID, SINGLE B-SEC.

$73.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5103006

BELT, BX-SEC, 51.9"EL, ARAMID
(Superseded to 5103006FS)

Note: (Not Shown)

$40.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5406981D

WELD, REAR AXLE - RED

$

$

Currently unavailable

21

Snapper Pro 5103008

SPRING, EXT, 1.00 X 4.55 X .115 WIRE,BLK

$28.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5101380

PULLEY-IDLER, 4.06OD, .375ID, .75W STL
(Superseded to 5101380YP)

$51.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5102911

BELLEVILLES WASHER, .38 X .875 X .109

$

$

Currently unavailable

25

Snapper Pro 5102912

GROOVE CLEANER, SW5

$7.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 1960273

BOLT-RD HD SH SQ NK 5/16-18X2.250 G5 FUL
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

27

Snapper Pro 7091575

HCLN, 5/16-18 GR5 YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

28

Snapper Pro 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

30

Snapper Pro 5101932

CLAMP, VINYL COATED, 5/8 ID
(Superseded to 5101932YP)

Note: (Not Shown)

$7.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (Not Shown)

$4.49

$

Usually ships in 2-12 days

0
