SW 5 (5900538) - Snapper Pro SW5 Series 32" Walk-Behind Mower, 15hp Kawasaki, Side-Discharge 32" Mower Deck - Housing, Cover & Spindles Parts Diagram

SW5 Series 32" Walk-Behind Mower, 15hp Kawasaki, Side-Discharge

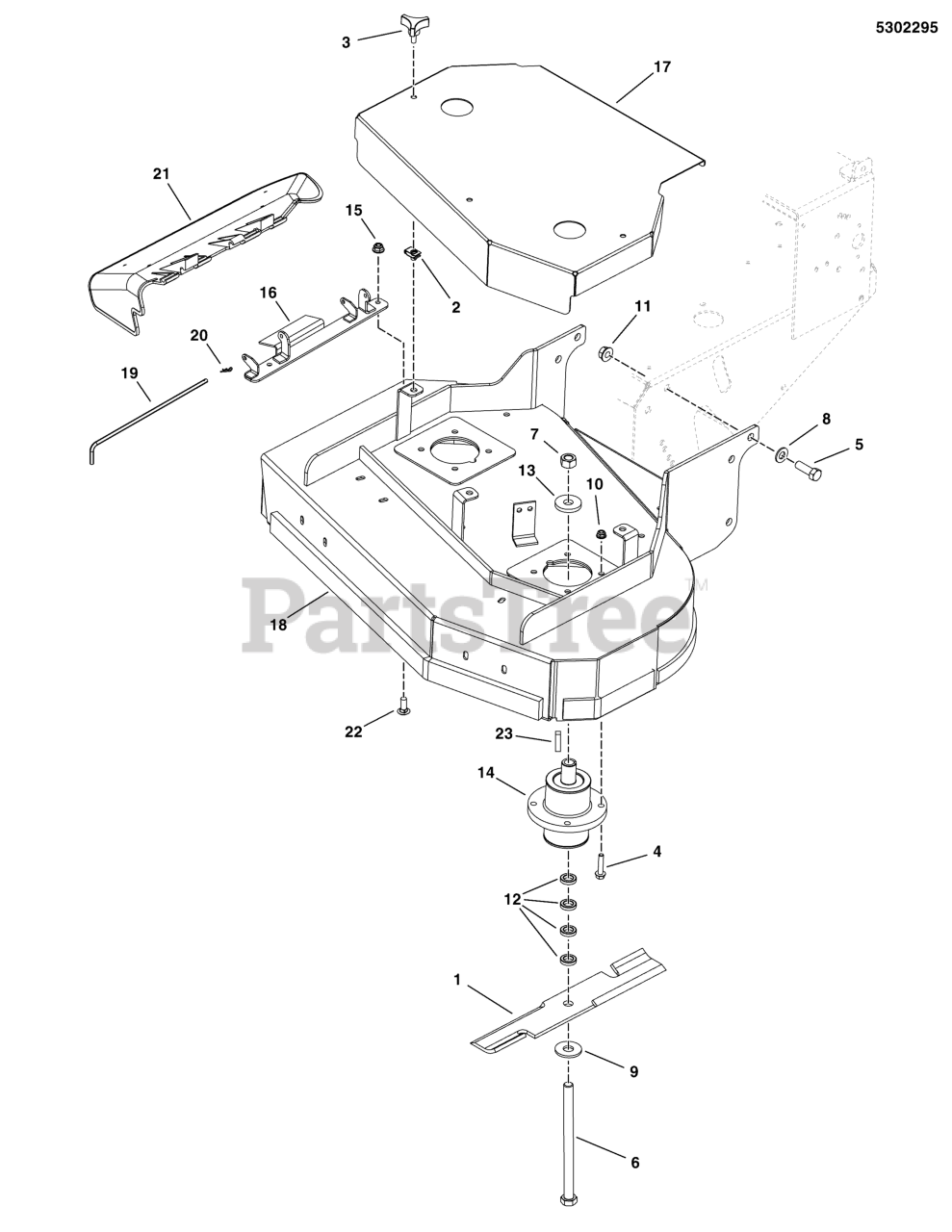

32" Mower Deck - Housing, Cover & Spindles Parts Diagram

  • Title

1

Snapper Pro 5020843X2

BLADE, 16.25

Note: (SET OF TWO)

$53.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5101731

KNOB, 5/16-18 X 1.00, ROSETTE, BLK
(Superseded to 5101731YP)

$10.99

$

In Stock, only 4 left!

0

4

Snapper Pro 5023157

BOLT, 5/16-18 X 1 1/2 FLANGE
(Superseded to 5023157SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025019X72

BOLT, 5/8-11 X 9 GD5

$10.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025040

NUT, 5/8-11 HEX
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

8

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

9

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

10

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5041477

SPACER, .63 X 1.06 X .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5043028

SPACER, .64 X 1.75 X .25

$6.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5102802

ASSM, SPINDLE, THRU BORE, BGF

$314.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Snapper Pro 5407630D

WELD, DISCHARGE CHUTE MOUNT - RED

$

$

Currently unavailable

17

Snapper Pro 5407014D

GUARD, DECK 32 - RED

$

$

Currently unavailable

18

Snapper Pro 5600473

DECK SHELL W/ DECALS, SW5 32"

$1880.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5046773

ROD, QUICK CONNECT
(Superseded to 5046773YP)

$27.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

21

Snapper Pro 1705449

DEFLECTOR-BLACK PLASTIC 30">50" DECKS
(Superseded to 1705449SM)

$122.99

$

In Stock, only 2 left!

0

22

Snapper Pro 1931350

BOLT, RD HD SH SQ NK 3/8- 16X1.000 G5 BL
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

23

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0
