SW 45 (5901904) - Snapper Pro SW45 CC Series 61" Walk-Behind Mower, 21hp Kawasaki Wheel and Tire Group Parts Diagram

SW45 CC Series 61" Walk-Behind Mower, 21hp Kawasaki

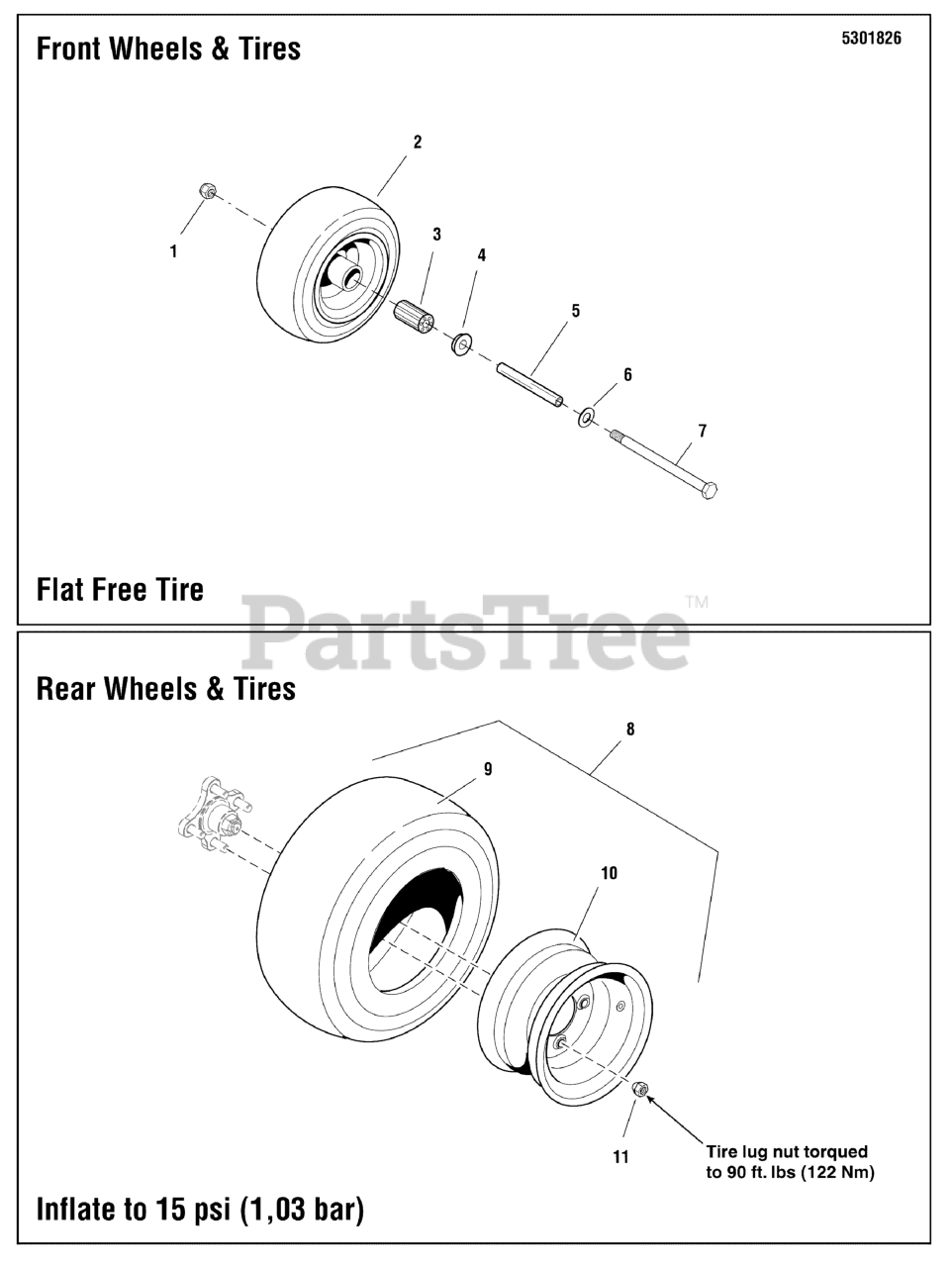

Wheel and Tire Group Parts Diagram

  • Title
1

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5100715

TIRE ASSM, 11X4.00-5 FLAT FREE
(Superseded to 5100715YP)

$154.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5101418X1

BEARING, ROLLER (SV)

$27.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021043

BEARING, RETAINER (SV)

$6.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

6

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

7

Snapper Pro 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

8

Snapper Pro 5102329

TIRE ASSM, 20 X 8 - 10, TURF, 4 BOLT
(Superseded to 5102329YP)

$349.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5101293X1

TIRE, REAR, 20X8X10, TURF MASTER (SV)

$

$

Currently unavailable

10

Snapper Pro 5102329X2

WHEEL, 10X7.00 4/4 SOLID F237 2.625 OS

$

$

Currently unavailable

11

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT, SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0
