SW 45 (5901904) - Snapper Pro SW45 CC Series 61" Walk-Behind Mower, 21hp Kawasaki Motion Control Group - Steering Levers Parts Diagram

SW45 CC Series 61" Walk-Behind Mower, 21hp Kawasaki

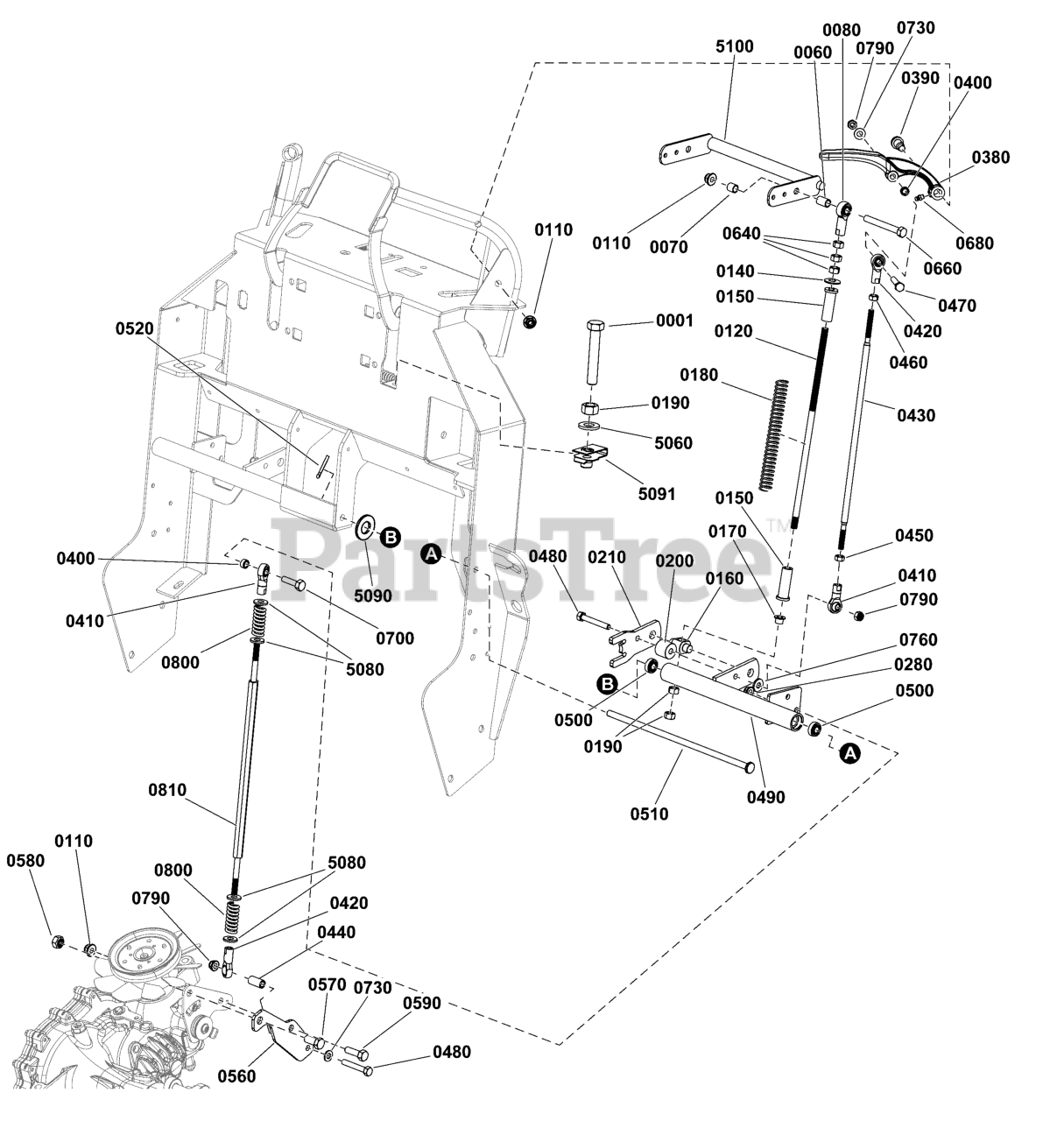

Motion Control Group - Steering Levers Parts Diagram

  • Title
0001

Snapper Pro 5025058X18

BOLT, 3/8-16 X 2-1/4" GD5 TFL
(Superseded to 5025058X18YP)

$7.49

$

In Stock, only 1 left!

0

0060

Snapper Pro 5047199

SPACER, .38 x .50 x .75
(Superseded to 5047199FS)

$7.49

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5101640

SPACER, .38 X .50 X .50, YZ
(Superseded to 5101640YP)

$7.49

$

Usually ships in 2-12 days

0

0080

Snapper Pro 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0120

Snapper Pro 5104229

ROD, CONTROL SYSTEM, WALK
(Superseded to 5104229FS)

$39.99

$

Usually ships in 2-12 days

0

0120

Snapper Pro 5104229

ROD, CONTROL SYSTEM, WALK
(Superseded to 5104229FS)

$39.99

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

$5.99

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5103022

TRUNION, 1/2" POSTS, STAINLESS
(Superseded to 5103022FS)

$34.99

$

Usually ships in 2-12 days

0

0170

Snapper Pro 5102773

BUSHING, .38ID X .47 OD X .38L, FL
(Superseded to 5102773FS)

$2.99

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5104374

SPRING,COMP,.645IDX8.00LGX.080WR,BLK E-C
(Superseded to 5104374FS)

$4.99

$

Usually ships in 2-12 days

0

0190

Snapper Pro 5025034

NUT, 3/8-16 HEX, YZ
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

0200

Snapper Pro 5104351

SPACER, .33 X 1.00 X .88, CZ
(Superseded to 5104351FS)

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5414411AA

TAB, PIVOT, W35 - BLK
(Superseded to 5414411AAFS)

$7.49

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0380

Snapper Pro 5102556AA

HANDLE, REVERSING - BLK
(Superseded to 5102556AAFS)

$38.99

$

Usually ships in 2-12 days

0

0390

Snapper Pro 5109888

BOLT, 3/8-16 X 1/2, 1.00 SHOULDER, CZ
(Superseded to 5109888FS)

$7.99

$

Usually ships in 2-12 days

0

0400

Snapper Pro 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

0410

Snapper Pro 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

0420

Snapper Pro 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

0430

Snapper Pro 5104159

ROD, 5/16-24 X 15.48, LH-RH, CZ
(Superseded to 5104159FS)

$9.49

$

Usually ships in 2-12 days

0

0440

Snapper Pro 84008514

SPACER (.325 X .496 X 1.000)

$

$

Currently unavailable

0450

Snapper Pro 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

In Stock, only 2 left!

0

0460

Snapper Pro 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

0470

Snapper Pro 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

0480

Snapper Pro 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

0490

Snapper Pro 5414184AA

WELD, W35 CONTROL PIVOT, LH - BLK
(Superseded to 5414184AAFS)

$114.99

$

Usually ships in 2-12 days

0

0500

Snapper Pro 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

0510

Snapper Pro 5104171

ROD, 3/8 X 12, HEADED - CZ
(Superseded to 5104171FS)

$10.99

$

Usually ships in 2-12 days

0

0520

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

$9.49

$

Usually ships in 2-12 days

0

0570

Snapper Pro 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 YZ
(Superseded to 5025015X6SM)

$3.99

$

Usually ships in 2-12 days

0

0580

Snapper Pro 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

Usually ships in 2-12 days

0

0590

Snapper Pro 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

0640

Snapper Pro 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

0660

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

0680

Snapper Pro 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

0690

Snapper Pro 5414183AA

WELD, W35 CONTROL PIVOT, RH - BLK

$

$

Currently unavailable

0700

Snapper Pro 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

0730

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0760

Snapper Pro 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

0790

Snapper Pro 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

0800

Snapper Pro 5021773

SPRING-COMP, .438ID X 1.75LG X .137WR
(Superseded to 5021773FS)

$10.99

$

Usually ships in 2-12 days

0

0810

Snapper Pro 5109457

ROD, 1/2 HEX, 5/16-24 X 15.50,LH-RH, CZ
(Superseded to 5109457FS)

$14.99

$

Usually ships in 2-12 days

0

5060

Snapper Pro 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

5080

Snapper Pro 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

5090

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5091

Snapper Pro 5022649

BODY CLIP, 3/8-16 X .688" DEEP
(Superseded to 5022649FS)

$3.49

$

Usually ships in 2-12 days

0

5100

Snapper Pro 5421102AA

WELD, SPEED CONTROL PIVOT, W45 - BLK

$

$

Currently unavailable
