SW 45 (5901904) - Snapper Pro SW45 CC Series 61" Walk-Behind Mower, 21hp Kawasaki Engine Deck Group Parts Diagram

SW45 CC Series 61" Walk-Behind Mower, 21hp Kawasaki

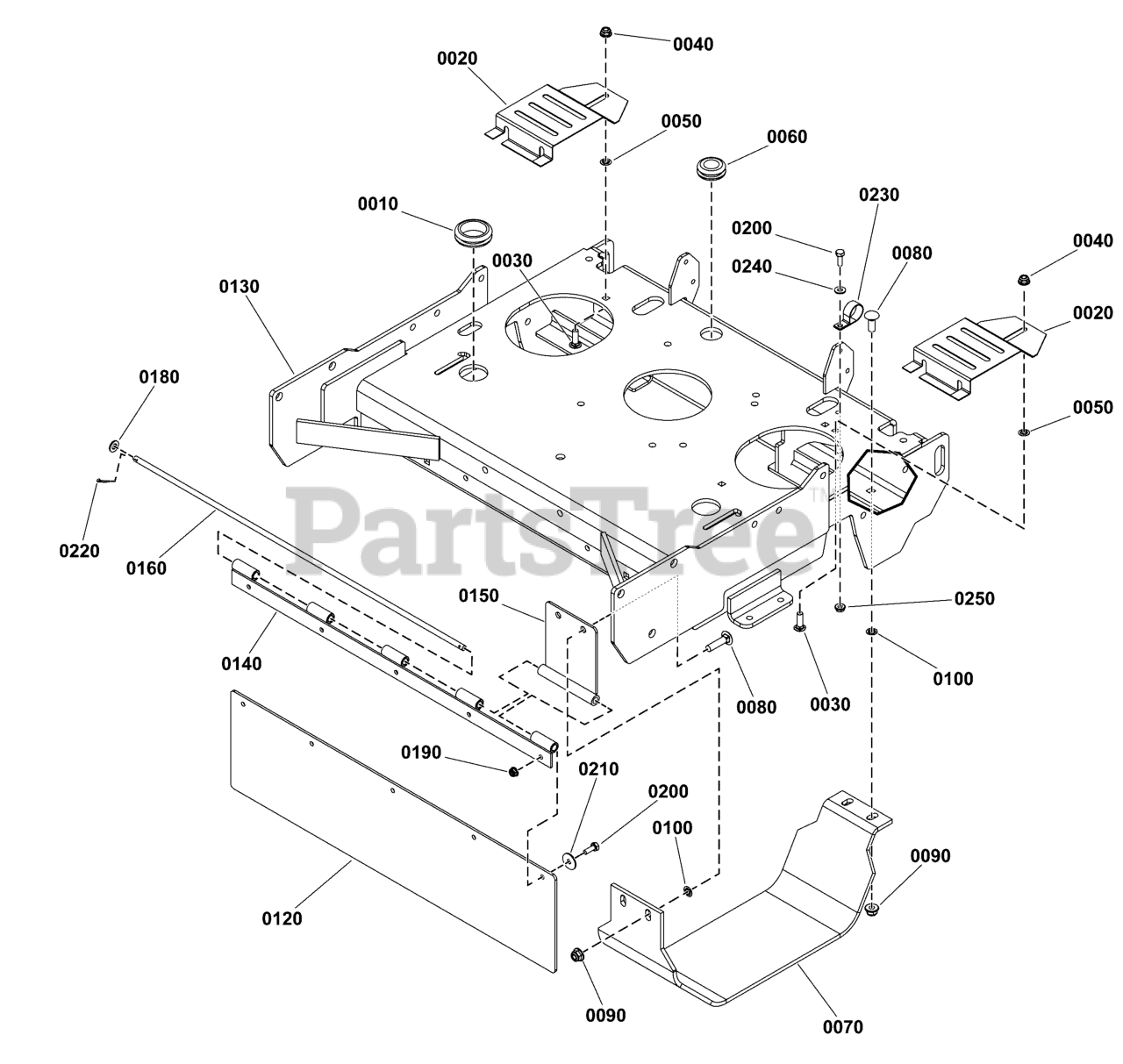

Engine Deck Group Parts Diagram

  • Title
0010

Snapper Pro 5102677

GROMMET, 1-1/2" ID FOR 1/4" METAL

$

$

Currently unavailable

0020

Snapper Pro 5412030AA

PLATE, FAN GUARD - BLK

$

$

Currently unavailable

0030

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0040

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Snapper Pro 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5420466AA

PLATE, TRANS PROTECTOR, W45 - BLK
(Superseded to 5420466AAFS)

$97.99

$

Usually ships in 2-12 days

0

0080

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper Pro 80004497

BOLT,3/8-16X1.000,RND HD CRRG,ZINC/CLEAR
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0090

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper Pro 80005327

RETAINER,3/8,PUSHNUT,ZINC/CLEAR
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper Pro 5108724

FLAP, RUBBER, 3/16 X 6.75 X 26.00
(Superseded to 5108724FS)

$59.99

$

Usually ships in 2-12 days

0

0130

Snapper Pro 5420312D

WELD, ENGINE DECK, W45 - RED
(Superseded to 5420312DFS)

$1185.99

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5420214AA

WELD, LOWER FLAP MOUNT - BLK
(Superseded to 5420214AAFS)

$47.99

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5420213AA

WELD, UPPER FLAP MOUNT - BLK
(Superseded to 5420213AAFS)

$136.99

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5108918

ROD, 5/16 X 26.375, CZ
(Superseded to 5108918FS)

$11.99

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0190

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0200

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0210

Snapper Pro 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

0220

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0230

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0250

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0
