SW 45 (5901903) - Snapper Pro SW45 CC Series 52" Walk-Behind Mower, 21hp Kawasaki Transaxle SERVICE PARTS - 5108694 and 5108693 Parts Diagram

SW45 CC Series 52" Walk-Behind Mower, 21hp Kawasaki

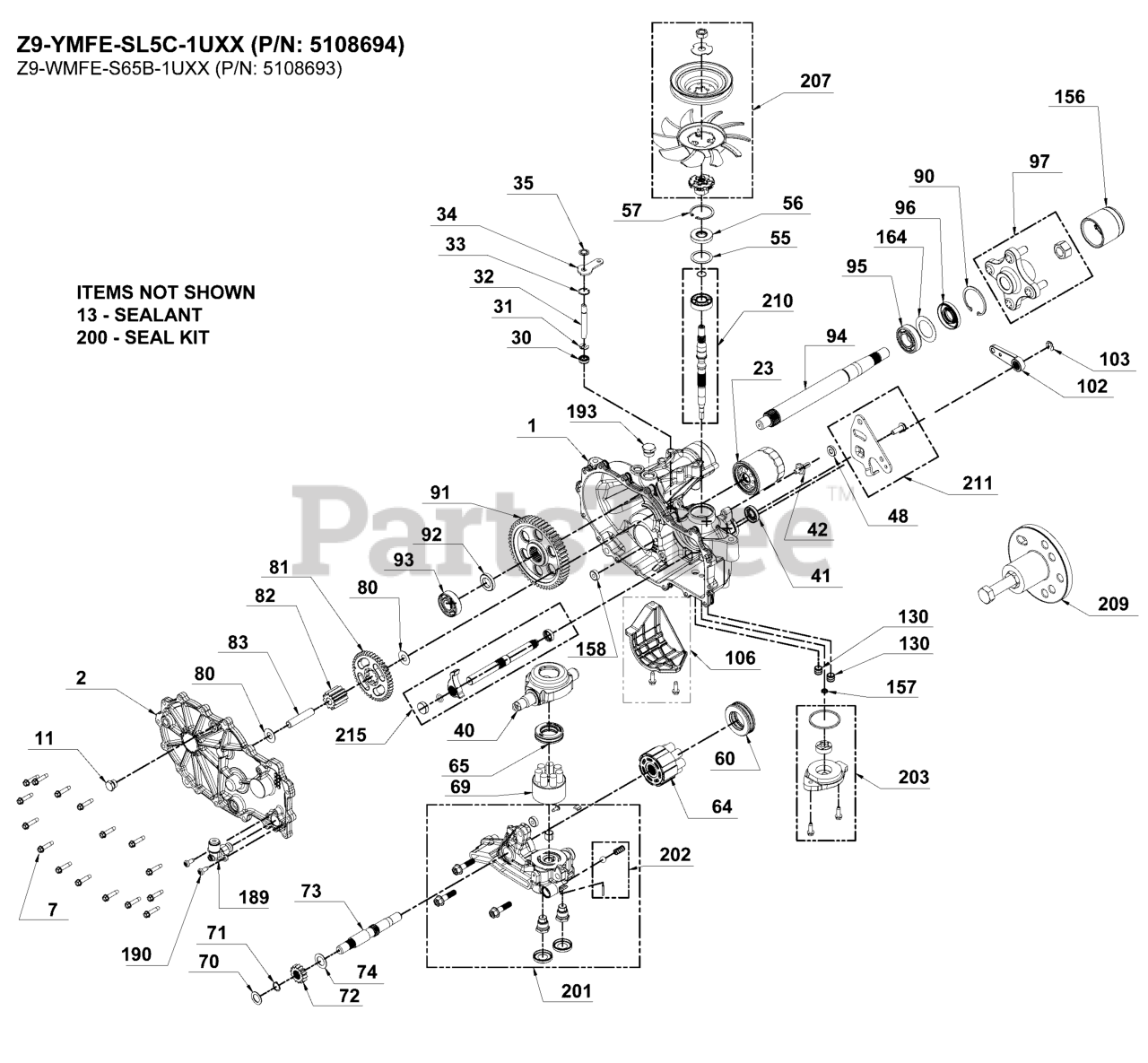

Transaxle SERVICE PARTS - 5108694 and 5108693 Parts Diagram

  • Title

5108694

Snapper Pro 5108694

TRANSAXLE, ZT3400, Z9-YMFE-SL5C-1UXX
(Superseded to 5108694FS)

$1430.99

$

Usually ships in 2-12 days

0

5108693

Snapper Pro 5108693

TRANSAXLE, ZT3400, Z9-WMFE-SL5B-1UXX
(Superseded to 5108693FS)

$1430.99

$

Usually ships in 2-12 days

0

1

KIT, MAIN HOUSING LH, CHARGE, CONTROL

$

$

Not available

2

KIT, COVER, SIDE, LH, COOLER

$

$

Not available

7

SCREW, HEX WASHER

$

$

Not available

11

PLUG EXTERNAL HEX VENT 9/16-18

$

$

Not available

13

TUBE, SEALANT

$

$

Not available

23

FILTER, SPIN-ON 2.6 X 3.0

$

$

Not available

30

SEAL, LIP .375 X .75 X .25

$

$

Not available

31

BYPASS RETAINING RING 1

$

$

Not available

32

ROD, BYPASS .375 X 2.88

$

$

Not available

33

BYPASS RETAINING RING 2

$

$

Not available

34

ARM, BYPASS

$

$

Not available

35

RING, RETAINING .375 EXTERNAL

$

$

Not available

40

SWASHPLATE, TRUNNION

$

$

Not available

41

SEAL, LIP 10 X 32 X 7

$

$

Not available

42

STUD, SHORT 5/16-24

$

$

Not available

48

SPACER

$

$

Not available

55

Snapper Pro 1730272

SPACER (50951)

$

$

Not available

56

Snapper Pro 5023414

Lip Seal 17 x 40 x 7 PTC
(Superseded to 5023414SM)

$18.99

$

In Stock, only 1 left!

0

57

Snapper Pro 5023415

Spacer
(Superseded to 5023415SM)

$9.49

$

Usually ships in 2-12 days

0

60

BEARING, THRUST 35 x 62 x 18

$

$

Not available

64

KIT, 16cc CYLINDER BLOCK ASSEMBLY STEAM TREAT

$

$

Not available

65

BEARING, THRUST PLASTIC CAGE

$

$

Not available

69

KIT, BLOCK 7 PISTON

$

$

Not available

70

WASHER, .63 X 1.00 X .05 FLAT

$

$

Not available

71

Snapper Pro 1706130

RING-SNAP (44145)

$

$

Not available

72

GEAR, 14T (STEEL)

$

$

Not available

73

SHAFT, MOTOR

$

$

Not available

74

WASHER, .71 X 1.16 X .04 FLAT

$

$

Not available

80

WASHER, .51 X 1.00 X .03 FLAT

$

$

Not available

81

GEAR, 45T

$

$

Not available

82

GEAR, 11T (STEEL)

$

$

Not available

83

PIN, JACKSHAFT

$

$

Not available

90

RING, RETAINING 2.25 INTERNAL

$

$

Not available

91

GEAR, 54T FORGED

$

$

Not available

92

SPACER, .750 X 1.320 X .257

$

$

Not available

93

KIT, BEARING

$

$

Not available

94

Snapper Pro 5104822X2

SHAFT, AXLE, ZT-3400, 53528

$254.99

$

Usually ships in 2-12 days

0

95

BEARING, BALL, AXLE INBOARD

$

$

Not available

96

Snapper Pro 5103589X1

KIT, SEAL, AXLE - HG# 53699

$26.99

$

Usually ships in 2-12 days

0

97

Snapper Pro 5103382

HUB, ASM, TRANS 5101188/89 & 5102154/55

$192.99

$

Usually ships in 2-12 days

0

102

Snapper Pro 5103750

BRAKE ARM, ZT3400
(Superseded to 5103750YP)

$13.99

$

Usually ships in 2-12 days

0

103

Snapper Pro 5104055

E-CLIP, BRAKE ARM, ZT3100 & ZT3400
(Superseded to 5104055YP)

$4.99

$

Usually ships in 2-12 days

0

106

KIT, FILTER GUARD

$

$

Not available

130

TUBE, CHARGE TRIPLE O-RING

$

$

Not available

156

Snapper Pro 5104822X3

CAP, AXLE, ZT-3400, 53501

$18.99

$

Usually ships in 2-12 days

0

157

KIT, GEROTOR SEAL

$

$

Not available

158

MAGNET

$

$

Not available

164

WASHER, 1.355 x 2.035 x .021 FLAT

$

$

Not available

189

Snapper Pro 5108072X10

ASSEMBLY, AUX COOLER PORT (#55672)

$90.99

$

Usually ships in 2-12 days

0

190

SCREW, PAN HEAD, 1/4-20 X .625

$

$

Not available

193

PLUG, 3/4-16

$

$

Not available

200

Snapper Pro 5103589X2

KIT, SEAL - HG# 73239

$154.99

$

Usually ships in 2-12 days

0

201

KIT, CENTER SECTION, LH CHARGE

$

$

Not available

202

KIT, CHARGE RELIEF

$

$

Not available

203

Snapper Pro 5101026X12

KIT, CHARGE PUMP, ZT2800, ZT3100

$150.99

$

Usually ships in 2-12 days

0

207

Snapper Pro 5104580X1

FAN & PULLEY KIT, ZT3400'S, STAND-ON

$106.99

$

In Stock, only 1 left!

0

209

KIT, HUB PULLER

$

$

Not available

210

KIT, INPUT SHAFT

$

$

Not available

211

KIT, CONTROL ARM

$

$

Not available

215

KIT, OUTBOARD, RH ROT B / LH ROT A

$

$

Not available
