SW 45 (5901903) - Snapper Pro SW45 CC Series 52" Walk-Behind Mower, 21hp Kawasaki 52" Mower Deck Group - Rollers Parts Diagram

SW45 CC Series 52" Walk-Behind Mower, 21hp Kawasaki

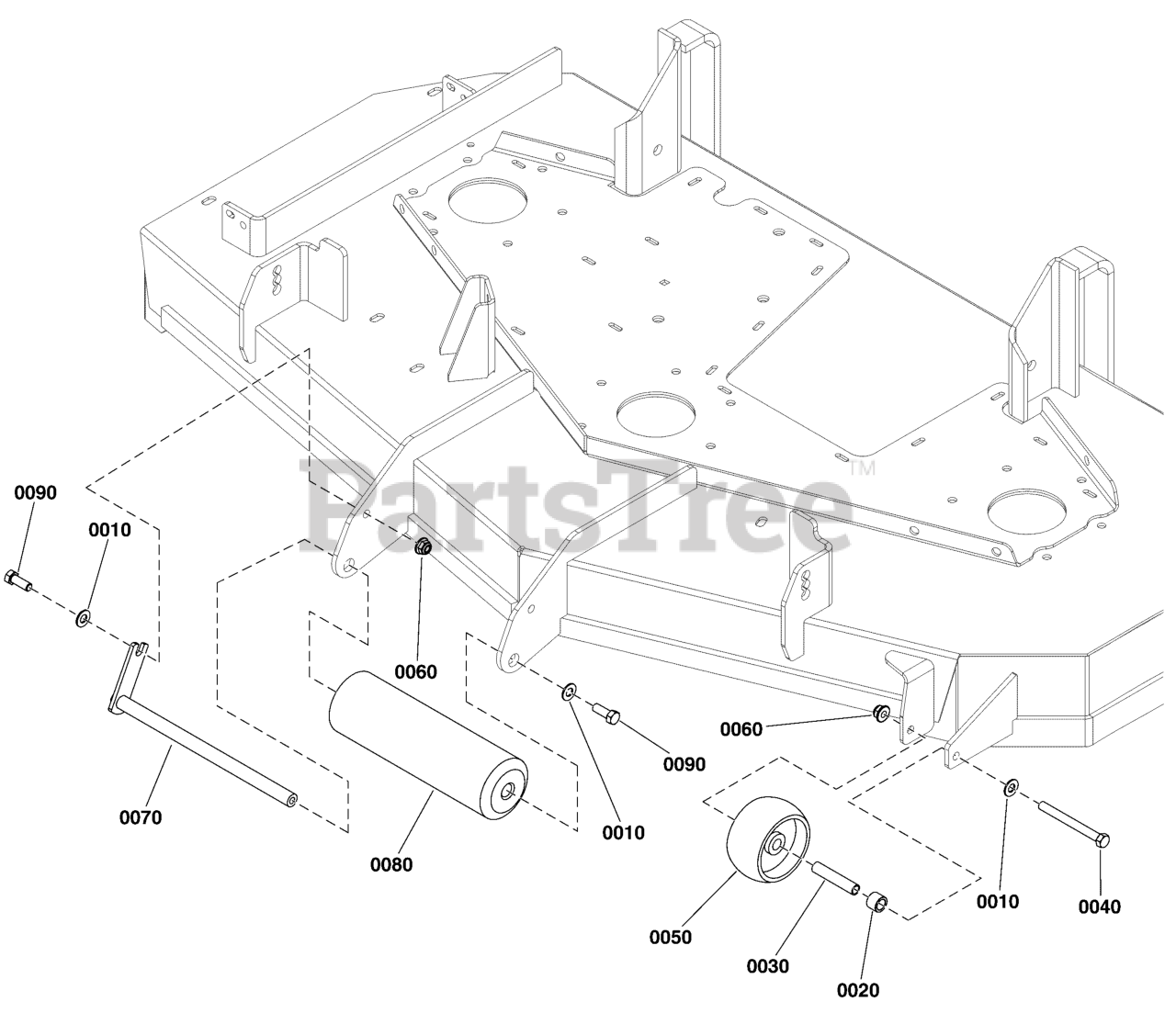

52" Mower Deck Group - Rollers Parts Diagram

  • Title

0010

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5047027

SPACER, .51 X .75 X .56, PM, CZ
(Superseded to 5047027SM)

$5.49

$

In Stock, Qty 20+

0

0030

Snapper Pro 5104675

SPACER, .38 X .50 X 2.50, CZ
(Superseded to 5104675YP)

$3.99

$

In Stock, only 2 left!

0

0040

Snapper Pro 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper Pro 1714760

WHEEL- 2.00 WIDE 3.88 DIA 0.531ID POLY
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

0060

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0070

Snapper Pro 5105755

PIN, ROLLER, CZ
(Superseded to 5041655AYP)

$46.99

$

In Stock, only 1 left!

0

0080

Snapper Pro 5020785

ROLLER, DECK
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 20+

0

0090

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0
