SW 45 (5901902) - Snapper Pro SW45 CC Series 48" Walk-Behind Mower, 21hp Kawasaki Transaxle Drive Group Parts Diagram

SW45 CC Series 48" Walk-Behind Mower, 21hp Kawasaki

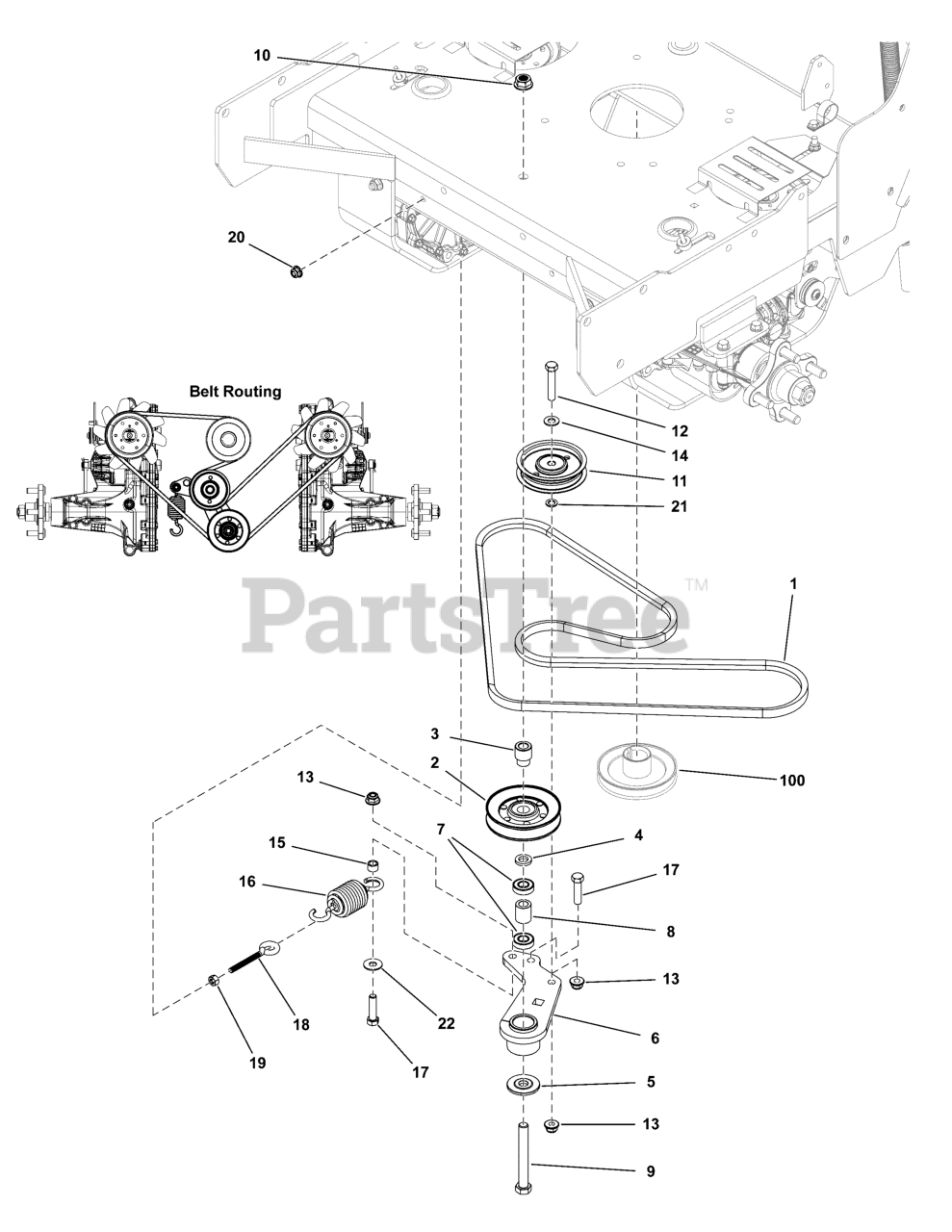

Transaxle Drive Group Parts Diagram

  • Title

1

Snapper Pro 5104193

BELT, A-SEC, COG TYPE, 76.2" EL ARAMID
(Superseded to 5104193FS)

$48.99

$

In Stock, Qty 7

0

2

Snapper Pro 5021225

PULLEY-IDLER-V, 4.00OB, .669ID, .88W,STL
(Superseded to 5021225FS)

$26.99

$

In Stock, only 1 left!

0

3

Snapper Pro 5104237

INSERT, BEARING, .51ID X .90OD X 1.15L
(Superseded to 5104237FS)

$13.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5104286

SPACER, .52 X .88 X .14, HT
(Superseded to 5104286FS)

$6.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 15

0

6

Snapper Pro 5420337AA

WELD, IDLER, HYDRO, W45 - BLK
(Superseded to 5420337AAFS)

$1244.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

8

Snapper Pro 5104153

SPACER, .52 X .84 X 1.00, PM
(Superseded to 5104153FS)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 4 left!

0

10

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

11

Snapper Pro 5104191

PULLEY, FLAT IDLER, 3-1/4" FLANGED
(Superseded to 5104191FS)

$36.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5103676

SPACER, .39 X .55 X .38, PM, CZ
(Superseded to 5103676YP)

$6.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5104676

SPRING EXT, 1.50ODX4.75LGX.177WR, BLK
(Superseded to 5104676FS)

$38.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

18

Snapper Pro 5025141X26

EYE BOLT,5/16-18 X3.5,2.13THRD,.55EYE,CZ
(Superseded to 5025141X26YP)

$7.99

$

In Stock, Qty 9

0

19

Snapper Pro 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5104937

SPACER, .385"ID X .625" OD X .062" THK
(Superseded to 5104937FS)

$2.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

100

Refer to: Engine & PTO Group

$

$

Not available
