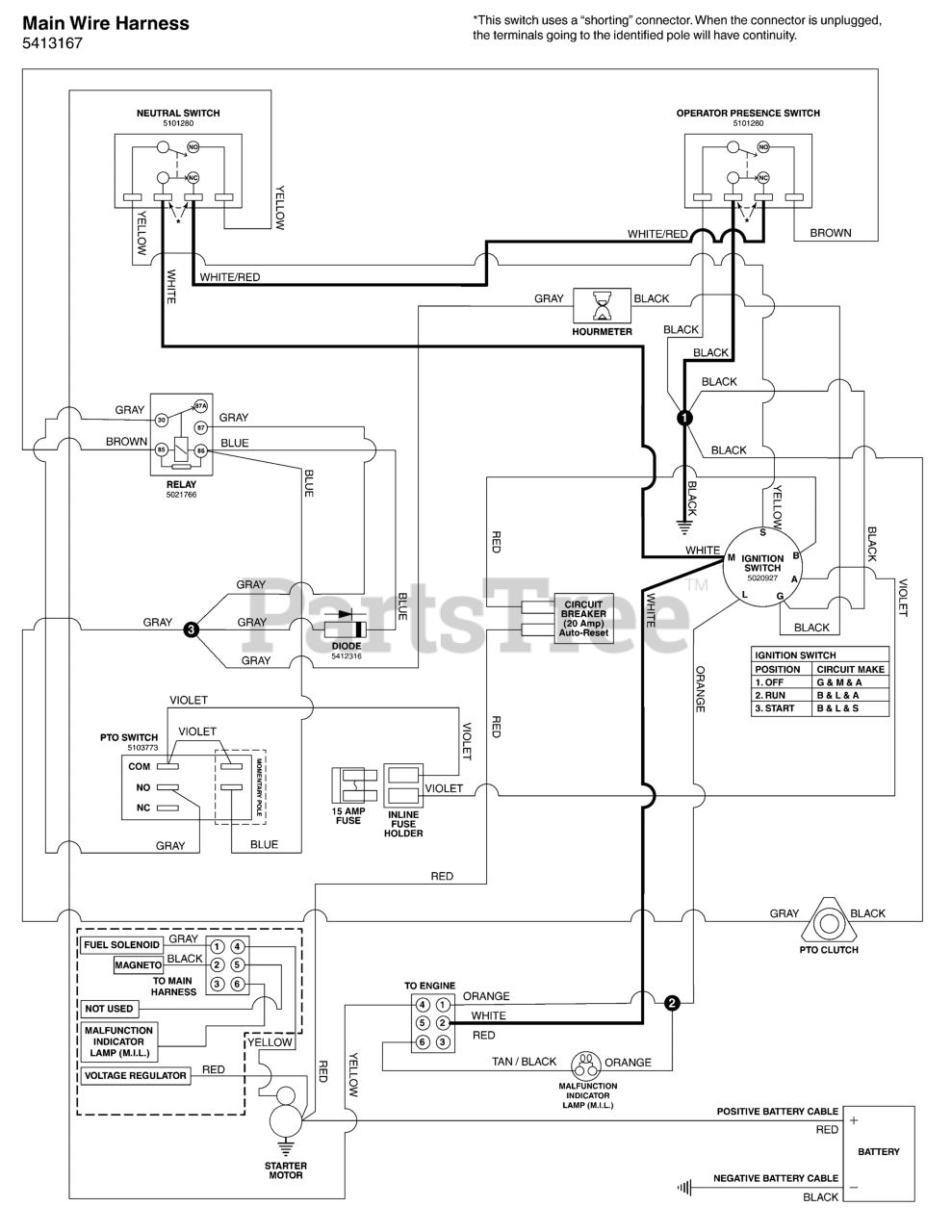

SW 35 (5901448) - Snapper Pro SW35 Series 61" Walk-Behind Mower, 28hp Briggs & Stratton Electrical Schematic - Engine Op. Pres. Circuit B&S EFI S/N: 2017711825 & Below Parts Diagram

SW35 Series 61" Walk-Behind Mower, 28hp Briggs & Stratton

Electrical Schematic - Engine Op. Pres. Circuit B&S EFI S/N: 2017711825 & Below Parts Diagram
