SW 35 (5901232) - Snapper Pro SW35 CC Series 61" Walk-Behind Mower, 24hp Kawasaki Handle Bar / Control Group Parts Diagram

SW35 CC Series 61" Walk-Behind Mower, 24hp Kawasaki

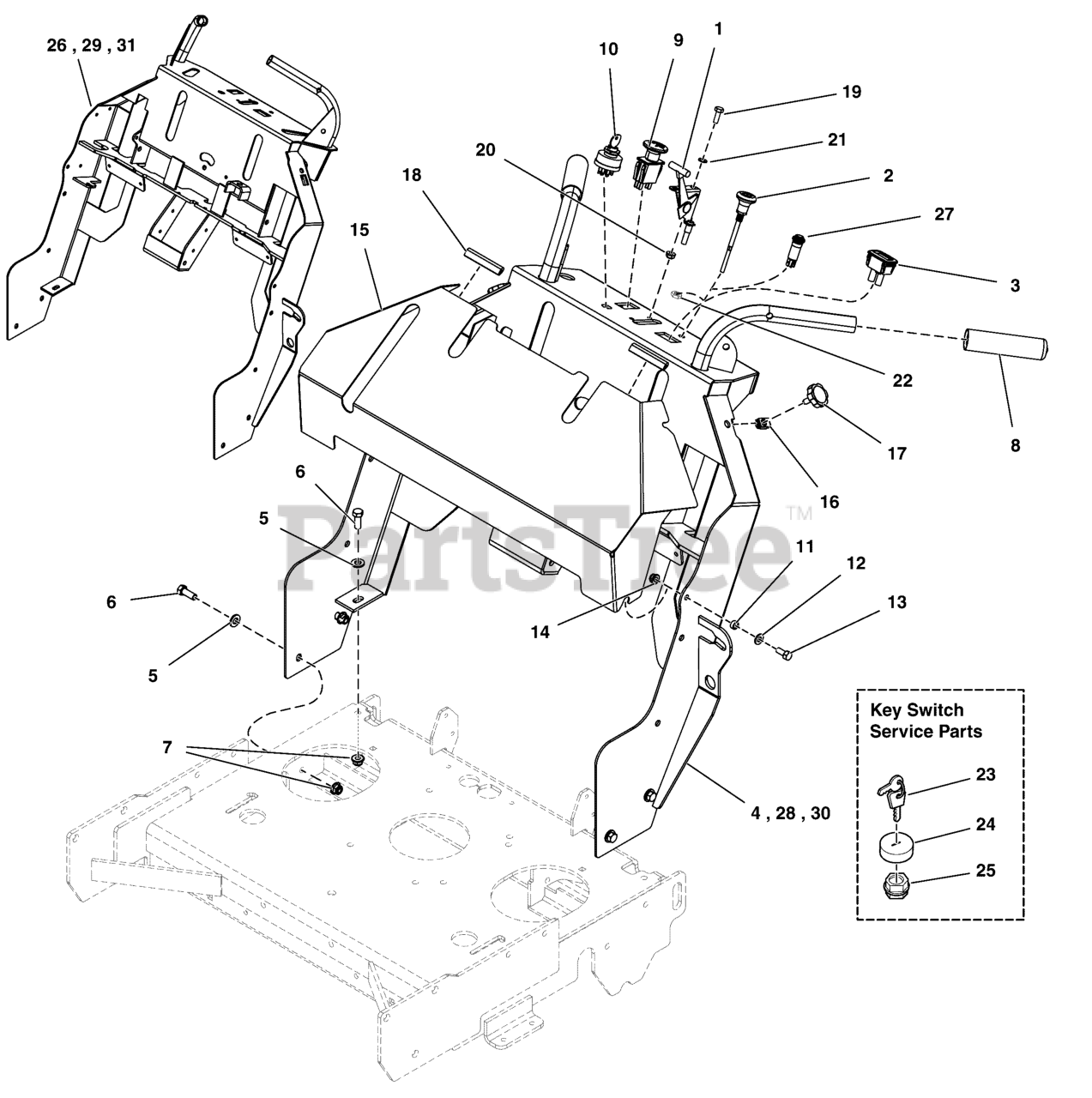

Handle Bar / Control Group Parts Diagram

  • Title

1

Snapper Pro 5104657

CABLE, THROTTLE, 43" DETENTED
(Superseded to 5104657FS)

Note: (Kawasaki Models)

$36.99

$

Usually ships in 2-12 days

0

1

Snapper Pro 5104657

CABLE, THROTTLE, 43" DETENTED
(Superseded to 5104657FS)

Note: (Briggs & Stratton Models)(Was 5102163)

$36.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

Note: (Kawasaki Electric Start Models)

$40.99

$

In Stock, Qty 5

0

2

Snapper Pro 5102622

CABLE, CHOKE CONTROL, 43.5", DETENTED

Note: (Kawasaki Manual Start Models)

$40.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5047779

CABLE, CHOKE CONTROL, 51" (Z)
(Superseded to 5047779SM)

Note: (Briggs & Stratton Carbureted Models)

$52.99

$

In Stock, only 4 left!

0

3

HOUR METER

Note: (Refer to Note: *)

$

$

Not available

4

Snapper Pro 5412059D

** WELD, HANDLE BARS, WALK - RED

Note: (Standard Handle Bars - S/N: 2016973573 & Below)

$

$

Currently unavailable

4

Snapper Pro 5413418D

** WELD, HANDLE BARS, F/SW35 - RED

Note: (Standard Handle Bars - S/N: 2016973574 - 2017118253)

$1007.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

6

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

7

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper Pro 5104659

GRIP, FOAM, .940" X 4.62" X .187"
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5104697

PTO SWITCH, MOMENTARY, SMALL KNOB
(Superseded to 5104697FS)

$30.99

$

In Stock, Qty 14

0

10

Snapper Pro 5021842

SWITCH, Ignition, Complete
(Superseded to 5021842SM)

Note: (Manual Start Models)

$37.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Electric Start Models)

$33.99

$

In Stock, only 3 left!

0

11

Snapper Pro 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

In Stock, only 4 left!

0

12

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

14

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5600952

ASSM, HB GUARD W/DECALS, SW35 - DOM (5412377B)

$163.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5108141

KNOB, 5/16-18 X 1.00, ROSETTE, BLK
(Superseded to 5108141FS)

$4.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5050853X3

BLACK BODY MOLDING, 3" LONG
(Superseded to 5050853X3FS)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

21

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025309

NUT, 3/8-24 Hex Jam
(Superseded to 5025309SM)

Note: (SV)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

24

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5413419D

** WELD, HANDLE BAR, SW35/FW35, CC - RED

Note: (Centralized Control Handle Bars - S/N: 2017118253 & Below)

$

$

Currently unavailable

27

Snapper Pro 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

Note: (Models with Briggs & Stratton EFI Engines)

$29.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5413924D

** WELD, HANDLE BARS, F/SW35 - RED

Note: (Standard Handle Bars - S/N: 2017118254 - 2017170234)

$940.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5413925D

** WELD, HANDLE BAR, SW35/FW35, CC - RED

Note: (Centralized Control Handle Bars - S/N: 2017118254 - 2017170234)

$1037.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5413682D

WELD HANDLE BARS W35 - RED
(Superseded to 5413682DFS)

Note: (Standard Handle Bars - S/N: 2017170235 & Above)

$978.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5413683D

**WELD, HANDLE BARS, W35, CC - RED
(Superseded to 5413683DFS)

Note: (Centralized Control Handle Bars - S/N: 2017170235 & Above)

$1244.99

$

Usually ships in 2-12 days

0
