SW 30 (5900964) - Snapper Pro SW30 Series 48" Walk-Behind Mower, 18hp Kawasaki Front Frame Group Parts Diagram

SW30 Series 48" Walk-Behind Mower, 18hp Kawasaki

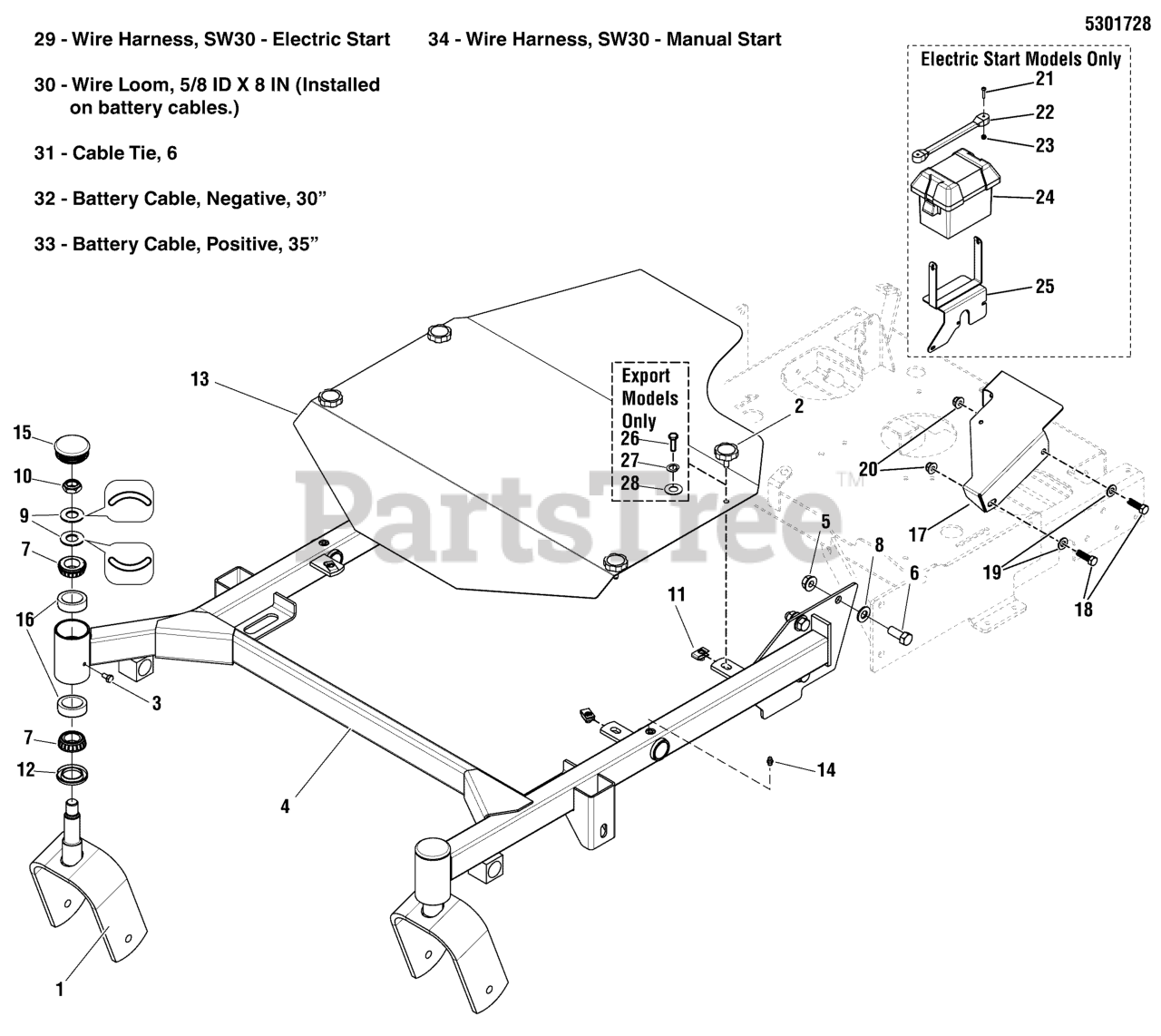

Front Frame Group Parts Diagram

  • Title

1

Snapper Pro 5401759D

WELD., FRONT CASTER YOKES - RED
(Superseded to 5401759DYP)

$136.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5101731

KNOB, 5/16-18 X 1.00, ROSETTE, BLK
(Superseded to 5101731YP)

$10.99

$

In Stock, only 4 left!

0

3

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

4a

Snapper Pro 5407974D

WELD, FRONT FRAME

Note: (48" & 52" - S/N: 2014713852 & Above)

$978.99

$

Usually ships in 2-12 days

0

4b

Snapper Pro 5407232D

WELD, FRONT FRAME

Note: (61" - S/N: 2014713852 & Above)

$

$

Currently unavailable

4c

Snapper Pro 5406890D

WELD, FRONT FRAME

Note: (48" - S/N: 2014713851 & Below)

$

$

Currently unavailable

4d

Snapper Pro 5405205D

WELD, FRONT FRAME

Note: (52" - S/N: 2014713851 & Below)

$978.99

$

Usually ships in 2-12 days

0

4e

Snapper Pro 5405353D

WELD, FRONT FRAME

Note: (61" - S/N: 2014713851 & Below)

$859.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

6

Snapper Pro 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

9

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

11

Snapper Pro 5025452

BODY CLIP 5/16-18 X 1/4" MAT
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

13a

Snapper Pro 5407397D

GUARD, FRONT FRAME

$110.99

$

Usually ships in 2-12 days

0

13b

Snapper Pro 5405235D

GUARD, FRONT FRAME

Note: (5900899 Models S/N: 2014970405 & Below)

$

$

Currently unavailable

14

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

15

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

16

Snapper Pro 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5405926D

GUARD, LEFT, SW30-52 - RED

Note: (MANUAL Start Models)

$33.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: (48" & 52" Models)

$3.99

$

In Stock, Qty 6

0

19

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (48" & 52" Models)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (48" & 52" Models)

$4.49

$

In Stock, Qty 20+

0

21

Snapper Pro 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

Note: (ELECTRIC Start Models)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

Note: (ELECTRIC Start Models)

$13.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5025271

NUT, #10-24, HEX NYLON FLANGE
(Superseded to 5025271FS)

Note: (ELECTRIC Start Models)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

Note: (ELECTRIC Start Models)

$65.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5406602D

WELD, BATTERY MOUNT, SW30-61 - RED

Note: (ELECTRIC Start Models)

$101.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1, GD5 YZ
(Superseded to 5025011X8FS)

Note: (CE Models)

$3.49

$

In Stock, Qty 16

0

27

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

Note: (CE Models)

$3.99

$

In Stock, only 2 left!

0

28

Snapper Pro 5025155

WASHER, 5/16" SAE

Note: (CE Models)

$

$

Currently unavailable

29

Snapper Pro 5405546

WIRE HARNESS, SW30 KAV ELEC

Note: (ELECTRIC Start Models)

$251.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5050861X8

WIRE LOOM, 5/8 ID X 8 IN
(Superseded to 5050861X8FS)

Note: (ELECTRIC Start Models)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5021030

CABLE TIE, 6
(Superseded to 5021030SM)

Note: (ELECTRIC Start Models)

$2.99

$

In Stock, only 3 left!

0

32

Snapper Pro 5101396

CABLE, BATTERY, NEGATIVE, 30"
(Superseded to 5101396YP)

Note: (ELECTRIC Start Models)

$35.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5044876

BATTERY CABLE, POSITIVE, 35
(Superseded to 5044876SM)

Note: (ELECTRIC Start Models)

$29.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5405854

WIRE HARNESS, SW30 - MANUAL START

Note: (MANUAL Start Models)

$160.99

$

Usually ships in 2-12 days

0
