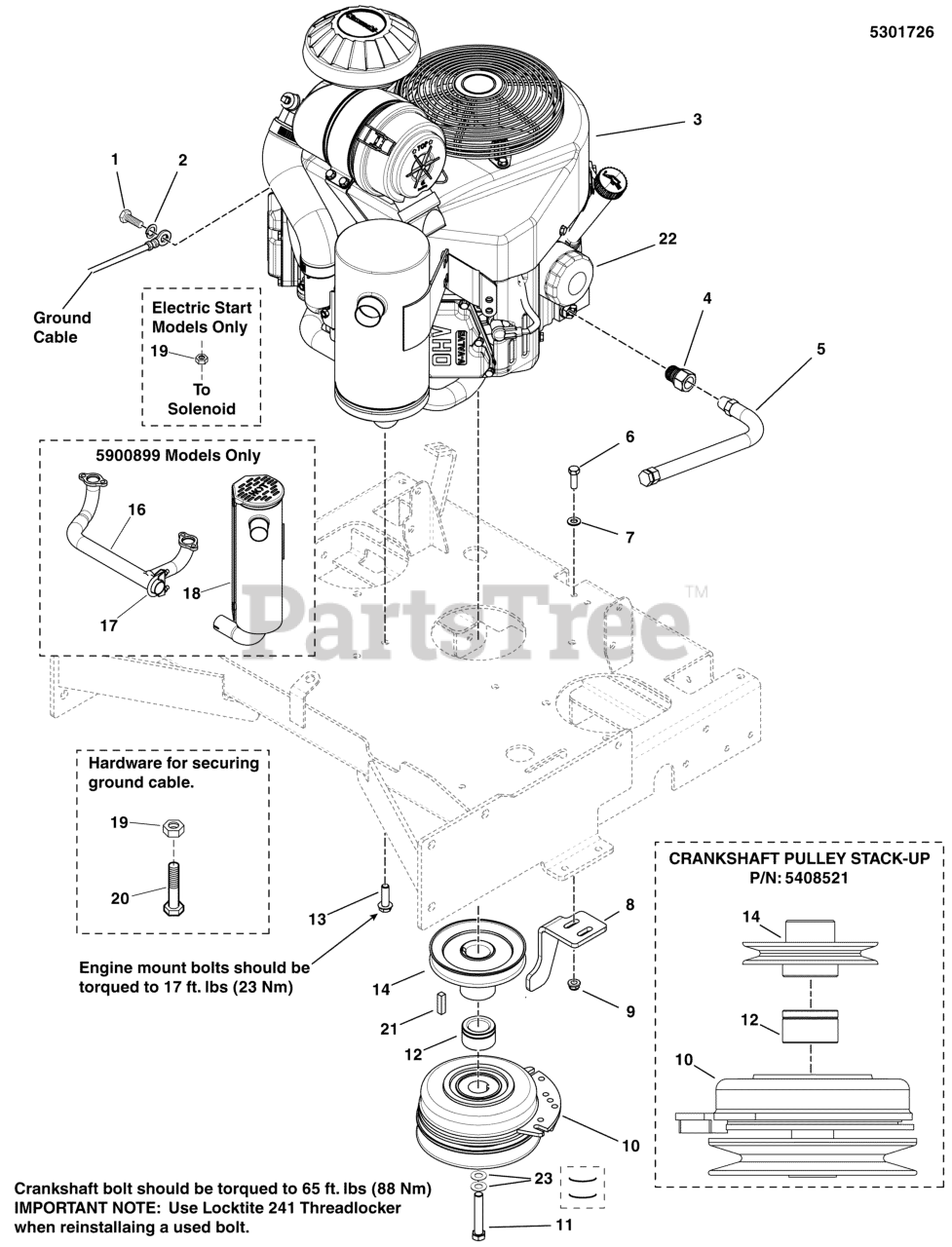

SW 30 (5900964) - Snapper Pro SW30 Series 48" Walk-Behind Mower, 18hp Kawasaki Engine & PTO Group Parts Diagram

SW30 Series 48" Walk-Behind Mower, 18hp Kawasaki

Engine & PTO Group Parts Diagram

  • Title

1

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

3

ENGINE, KAWASAKI

$

$

Not available

4

Snapper Pro 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

7

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Snapper Pro 5405281D

PLATE, CLUTCH ANCHOR - RED

$22.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

11

Snapper Pro 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

$5.49

$

In Stock, only 2 left!

0

12

Snapper Pro 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025532

BOLT,HEX FLG,SER GD5 3/8-16X1-1/4PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

14

Snapper Pro 5102129

PULLEY, CRANKSHAFT, 1.125 ID X 4.50 OD

$65.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5102278X3

FILTER, AIR

$

$

Not available

16

Snapper Pro 5102153

MANIFOLD

Note: (5900899 MODELS)

$148.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5022810

CLAMP, MUFFLER & MANIFOLD
(Superseded to 5022810FS)

Note: (5900899 MODELS)

$7.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5102152

MUFFLER

Note: (5900899 MODELS)

$281.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

Note: (ELECTRIC START MODELS)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025249

BOLT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5102278X1

FILTER, OIL

$

$

Not available

23

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0
