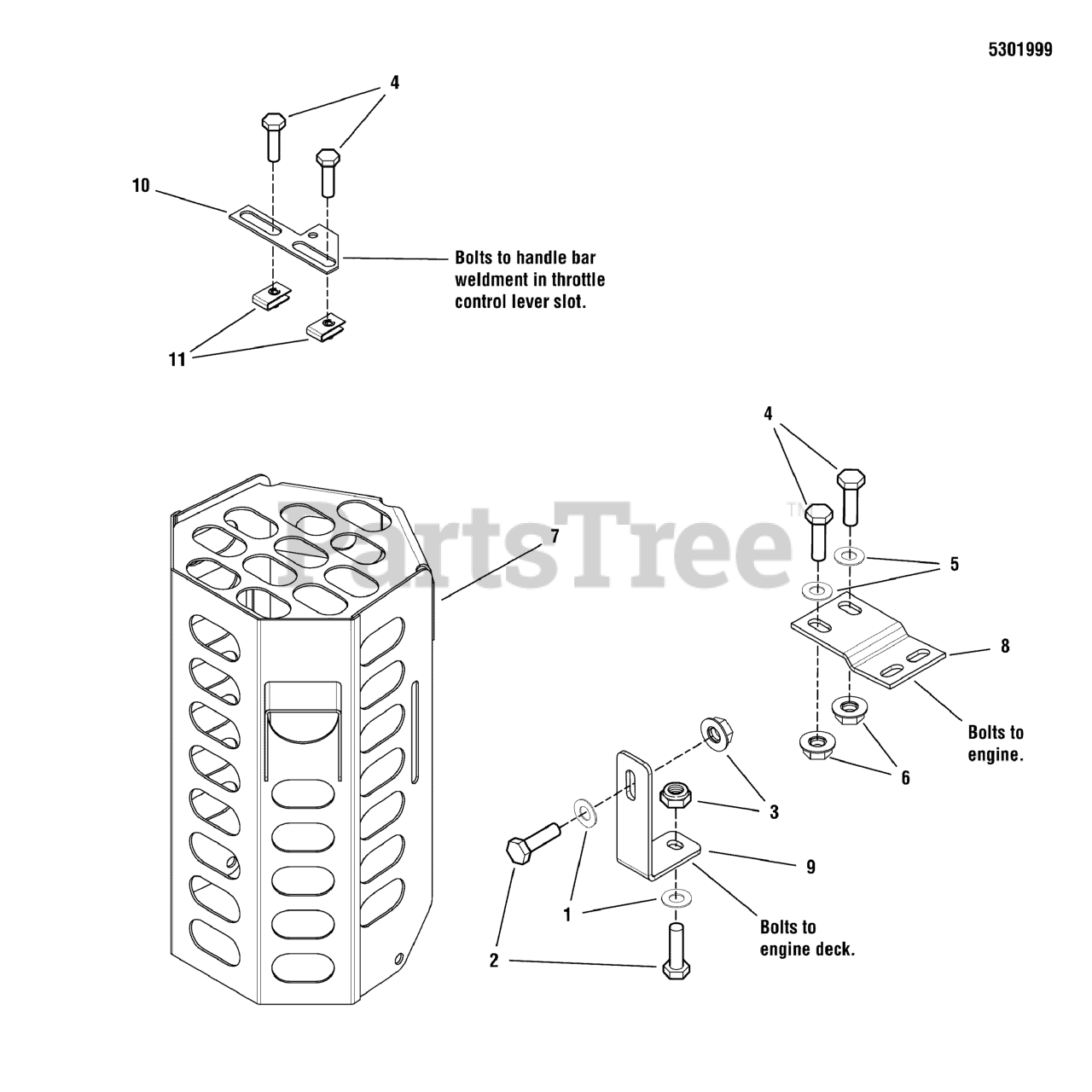

SW 30 (5900908) - Snapper Pro SW30 Series 52" Walk-Behind Mower, 18hp Kawasaki Guards & Covers Group - Export Models Parts Diagram

SW30 Series 52" Walk-Behind Mower, 18hp Kawasaki

Guards & Covers Group - Export Models Parts Diagram

  • Title
1

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

2

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

3

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

7

Snapper Pro 5406416D

WELD, MUFFLER GUARD, MUFFLER - RED

$183.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5406347D

BRACKET, GUARD MOUNT, UPPER - RED

$

$

Currently unavailable

9

Snapper Pro 5406348D

BRACKET, GUARD MOUNT, LOWER - RED

$

$

Currently unavailable

10

PLATE, THROTTLE STOP

$

$

Not available

11

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0
