SW 30 (5900887) - Snapper Pro SW30 Series 52" Walk-Behind Mower, 20hp Kawasaki 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

SW30 Series 52" Walk-Behind Mower, 20hp Kawasaki

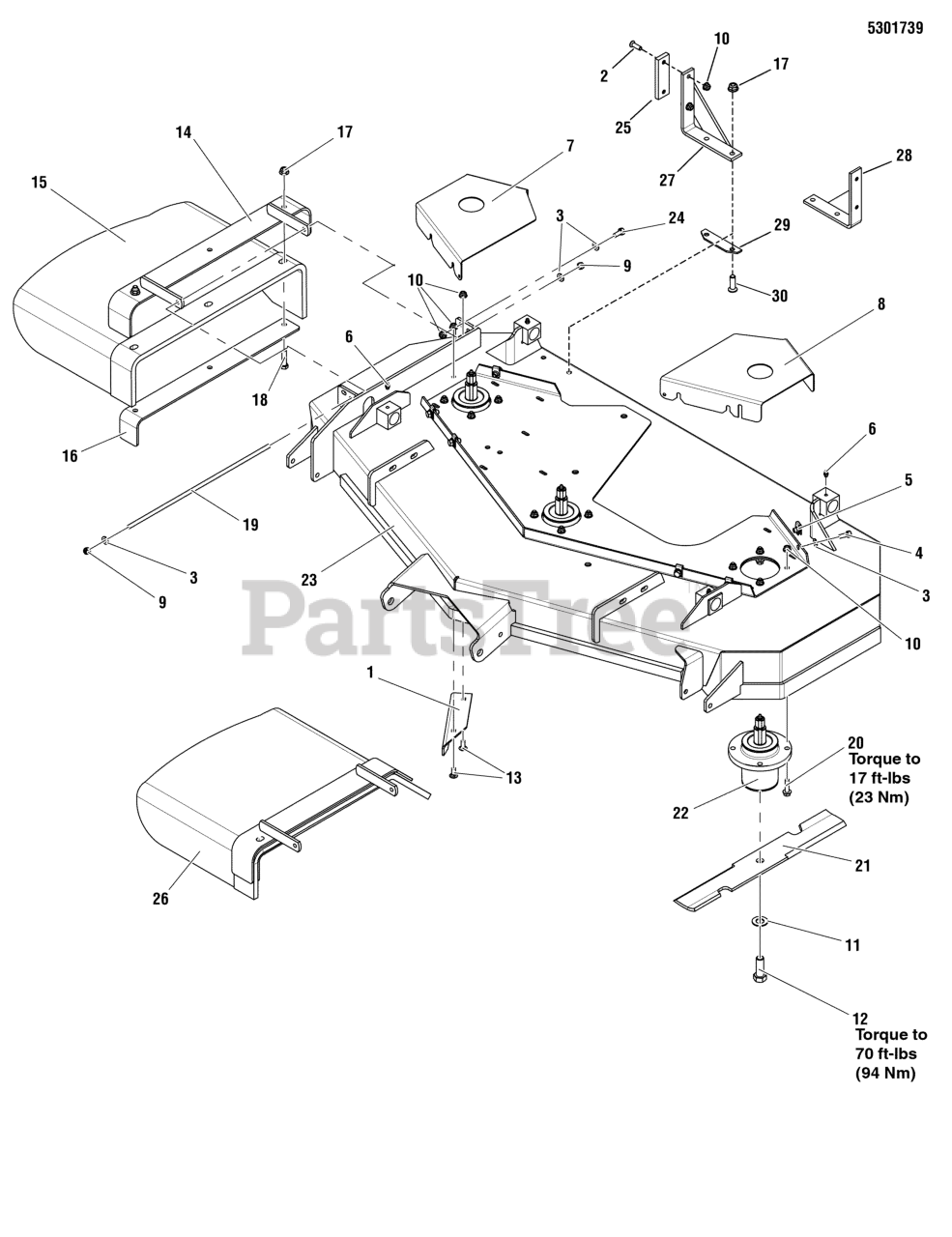

52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5405557A

PLATE, DEFLECTOR - BLK
(Superseded to 5405557AAFS)

Note: (52" Models)

$19.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

5

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5404890D

GUARD, DECK, 52, RH, SW20 - RED

$40.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5404891D

GUARD, DECK, 52, LH, SW20 - RED

$40.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

10

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

12

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

14

Snapper Pro 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

15

Snapper Pro 5402404

CHUTE, DISCHARGE, BEND RUBBER 52"
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5402362A

SUPPORT,DISCHARGE CHUTE - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLCK FLG
(Superseded to 5025394SM)

Note: (S/N: 2014739347 & Below QTY. 6)

$4.49

$

In Stock, Qty 20+

0

18

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5042555

ROD, 5/16 X 13.75, TBE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

21

Snapper Pro 5021227S

BLADE, SET OF THREE

$80.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer sold seperately)

$231.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5600377

DECK SHELL W/ DECALS, 52, SW30

Note: (S/N: 2014739347 & Below)

$1896.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5600511

DECK SHELL W/ DECALS, SW30 52

Note: (S/N: 2014739348 & Above)

$1937.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

25

Snapper Pro 5102702

PAD, FRICTION, .375 X 1.25 X 4.00
(Superseded to 5102702YP)

$6.99

$

In Stock, only 2 left!

0

26

Snapper Pro 5600132

KIT, DISCHARGE CHUTE, 44/48/52

$

$

Not available

27

Snapper Pro 5405860D

WELD, FRICTION PAD HOLDER, RH - RED

Note: (S/N: 2014739347 & Below)

$56.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5405861D

WELD, FRICTION PAD HOLDER, LH - RED

Note: (S/N: 2014739347 & Below)

$56.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5405890D

PLATE, BRACKET SUPPORT - RED

Note: (S/N: 2014739347 & Below)

$9.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 1960702

BOLT, Carriage, 3/8-16 X 1

Note: (S/N: 2014739347 & Below)

$

$

Not available
