SW 25 (5901498) - Snapper Pro SW25 CC Series 48" Walk-Behind Mower, 19hp Kawasaki Electrical Schematic - Cranking Circuit Electric Start S/N: 2017711286 to 2017954955 Parts Diagram

SW25 CC Series 48" Walk-Behind Mower, 19hp Kawasaki

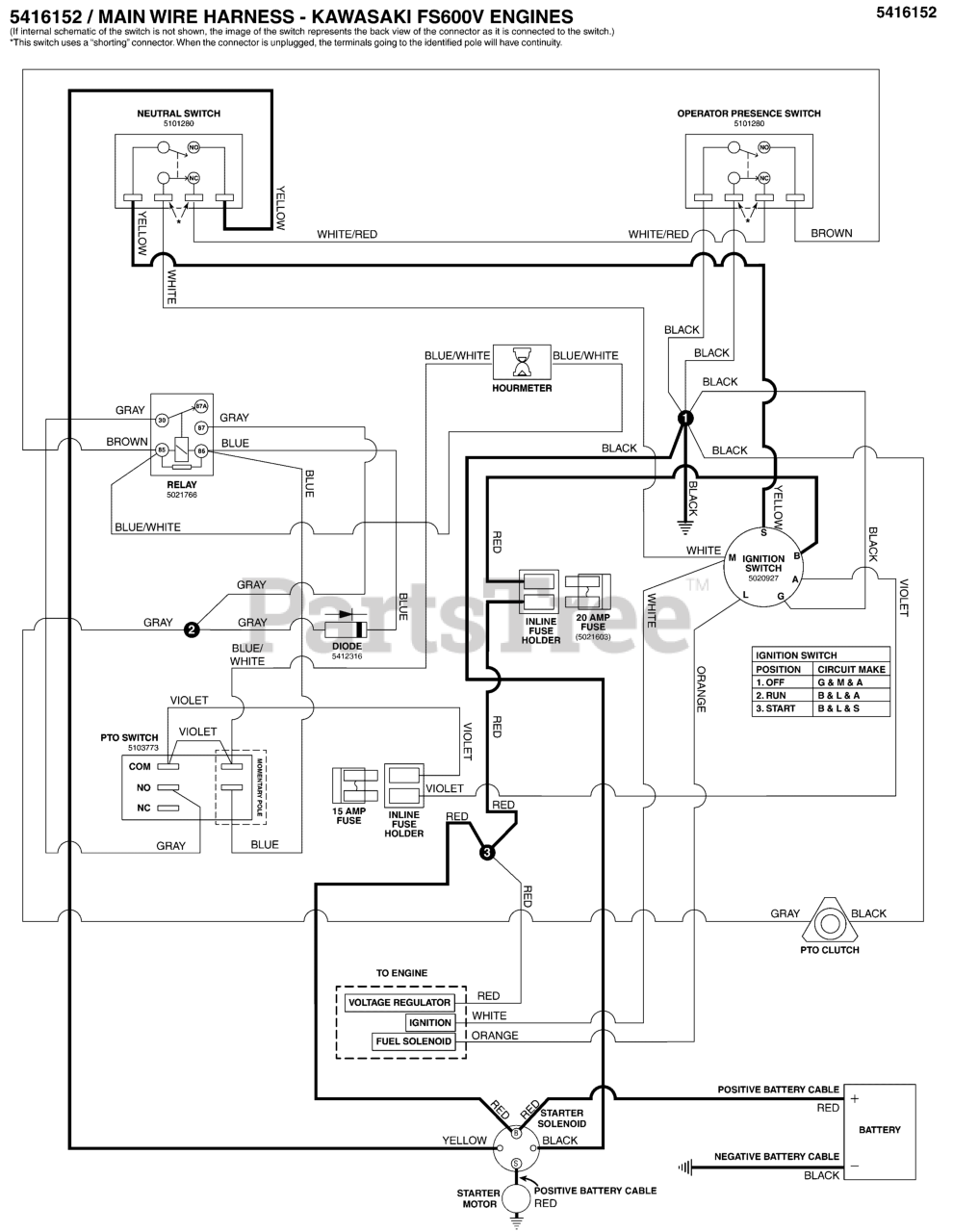

Electrical Schematic - Cranking Circuit Electric Start S/N: 2017711286 to 2017954955 Parts Diagram
