SW 25 (5901440) - Snapper Pro SW25 CC Series 48" Walk-Behind Mower, 19hp Kawasaki Wheel & Tire Group Parts Diagram

SW25 CC Series 48" Walk-Behind Mower, 19hp Kawasaki

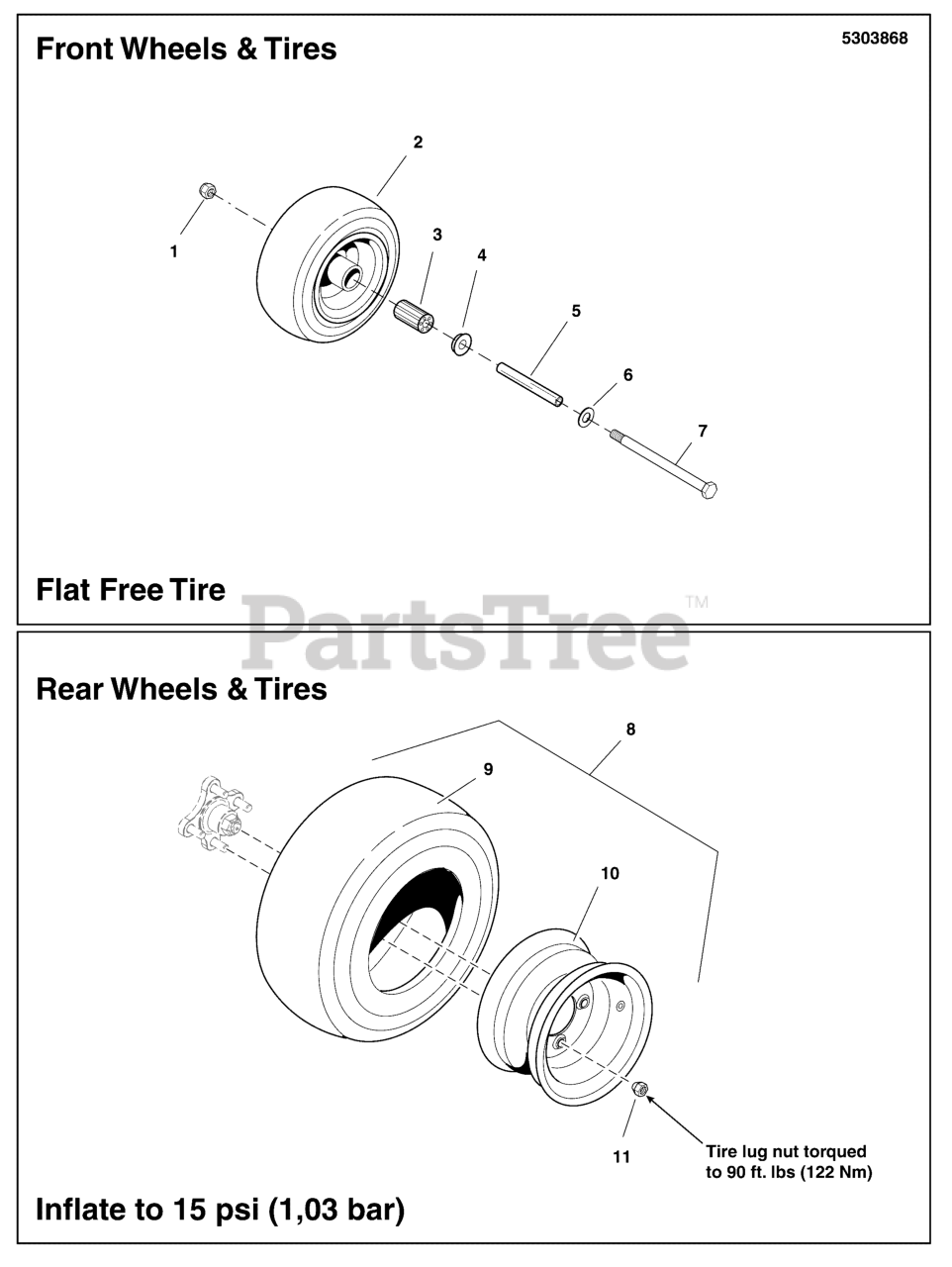

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5100790

TIRE ASSM, 9 X 3.5 - 4, FF / CB
(Superseded to 5100790FS)

$116.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

Note: (SV)

$

$

Currently unavailable

4

Snapper Pro 5021043

RETAINER, BEARING

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5041657

AXLE, CASTER WHEEL
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

7

Snapper Pro 5025017X48

BOLT, 1/2-13 X 6 GD5 CZ
(Superseded to 5025017X48SM)

$6.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5101068

TIRE ASSM, 20 X 7 - 10, TURF, 4 BOLT
(Superseded to 5101068FS)

$284.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5101068X1

TIRE, 20X7.00-10NHS, TURF MASTER

Note: (SV)

$225.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101068X2

WHEEL, 10 X 6.00 4/4 SOLID, F237

Note: (SV)

$228.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0
