SW 25 (5901440) - Snapper Pro SW25 CC Series 48" Walk-Behind Mower, 19hp Kawasaki Motion Control Group - Upper (Centralized Controls) Parts Diagram

SW25 CC Series 48" Walk-Behind Mower, 19hp Kawasaki

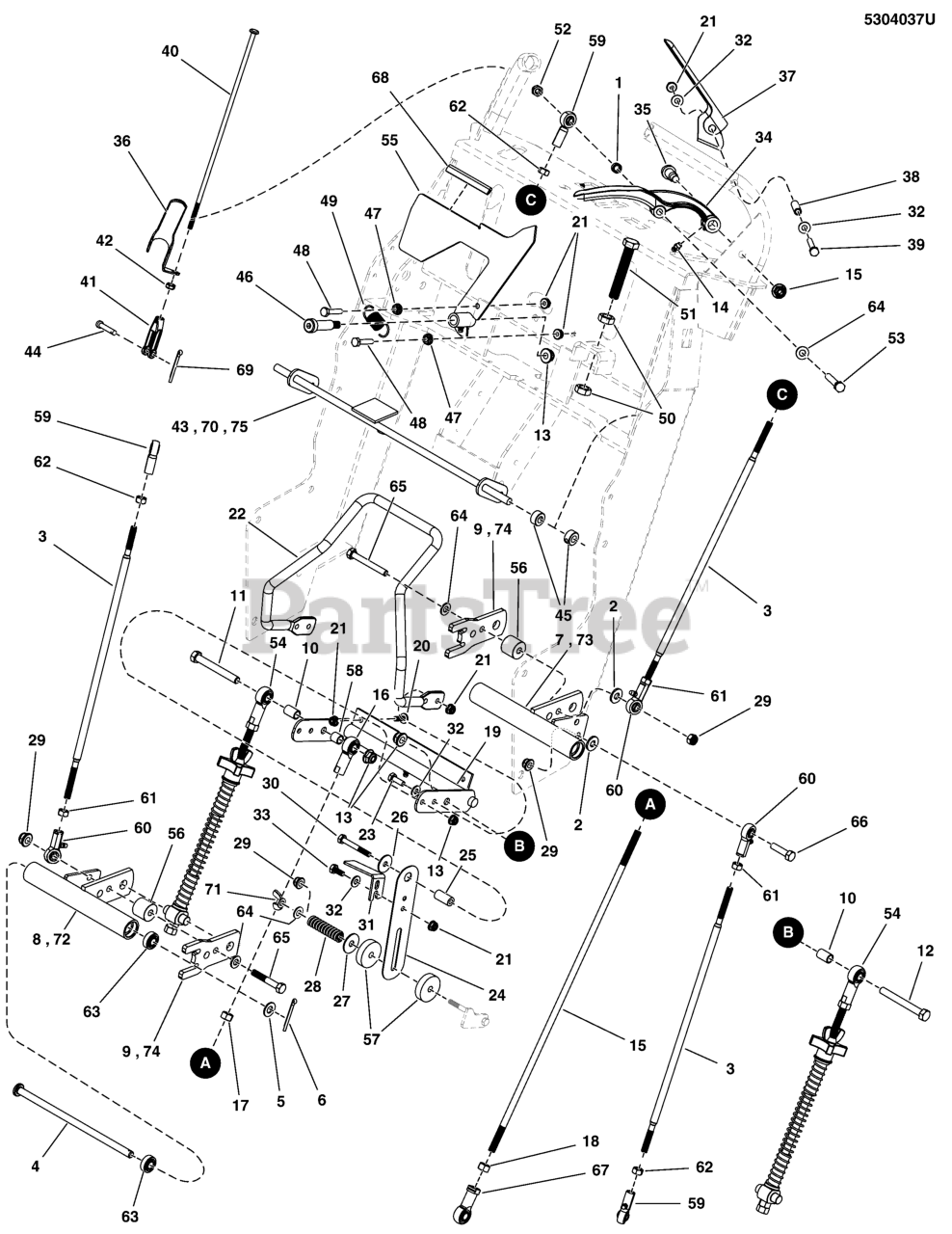

Motion Control Group - Upper (Centralized Controls) Parts Diagram

  • Title

1

Snapper Pro 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

3

Snapper Pro 5104159

ROD, 5/16-24 X 15.48, LH-RH, CZ
(Superseded to 5104159FS)

$9.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5104328

ROD, 3/8 X 8.49, HEADED
(Superseded to 5104328FS)

$8.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5412616A

WELD, CENTER PIVOT HUB, LH - WALK - BLK

Note: (S/N: 2017170234 & Below)

$104.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5412617A

WELD, CENTER PIVOT HUB, RH - WALK - BLK

Note: (S/N: 2017170234 & Below)

$105.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5411633A

TAB, CONTROL PIVOT - BLK

Note: (S/N: 2017170234 & Below)

$8.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5047199

SPACER, .38 X .50 X .75
(Superseded to 5047199FS)

$7.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

15

Snapper Pro 5104164

ROD, 3/8-24, 19.00, LH-RH CZ
(Superseded to 5104164FS)

$12.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025317

NUT, 3/8-24 HEX, LH
(Superseded to 5025317FS)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5412891A

NLA - WELD, SPEED CONTROL, SW35 - BLK
(Superseded to 5412891AAFS)

$60.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 1960715

SCREW-TRUSS HD TORX DR 1/4-20X0.750 T27
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

21

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

22

Snapper Pro 5412664A

WELD, SPEED BAR - BLK
(Superseded to 5412664AAFS)

$74.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

24

Snapper Pro 5409272

PLATE, FRICTION CONTROL, SS
(Superseded to 5409272FS)

$28.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5101274

SPACER, .26 X .50 X 1.00
(Superseded to 5101274FS)

$5.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

27

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

28

Snapper Pro 5104221

SPRING, COMP, .40 X .60 X 2.25, BLACK
(Superseded to 5104221FS)

$11.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (Qty: 7 - S/N: 2017118253 & Below)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5412363A

BRACKET, SWITCH ENGAGEMENT - BLK

$6.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

33

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

34

Snapper Pro 5102556A

HANDLE, REVERSING - BLK
(Superseded to 5102556AAFS)

$38.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5109888

BOLT, 3/8-16 X 1/2, 1.00 SHOULDER, CZ
(Superseded to 5109888FS)

$7.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5104201A

NLA - FLAP, OPS - BLK
(Superseded to 5104201AAFS)

$32.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5104202A

NLA - FLAP, OPS - BLK

$28.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 5101215

SPACER, .26 X .38 X 1.25, CZ
(Superseded to 5101215YP)

$8.49

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025010X14

BOLT, 1/4-20 X 1-3/4 GD5 CZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

40

Snapper Pro 5101242

ROD, OPC LINK, SNP PRO WB
(Superseded to 5101242FS)

$4.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper Pro 5412020A

WELD, OPC ROD, WALK - BLK

Note: (S/N: 2017118253 & Below)

$65.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

46

Snapper Pro 5025220

BOLT-3/8-16 x 1-1/2, 1/2 SHOULDER
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper Pro 5025010X10

BOLT, 1/4-20 X 1-1/4 GD5 CZ
(Superseded to 5025010X10SM)

$3.99

$

In Stock, only 4 left!

0

49

Snapper Pro 5105337

SPRING, EXT, 0.525 X 0.058 X 2.250 SS
(Superseded to 5105337FS)

$7.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0

51

Snapper Pro 5025426

BOLT, 1/2-20 X 2-1/2, FLT
(Superseded to 5025426FS)

$14.99

$

Usually ships in 2-12 days

0

52

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

53

Snapper Pro 5025011X18

BOLT, 5/16-18 X 2-1/4 GD5 CZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

54

SEE MOTION CONTROL GROUP - SPRING ASSEMBLIES

$

$

Not available

55

Snapper Pro 5413693A

WELD, SPEED INDICATOR, W25 - BLK

$47.99

$

Usually ships in 2-12 days

0

56

Snapper Pro 5104351

SPACER, .33 X 1.00 X .88, CZ
(Superseded to 5104351FS)

$4.49

$

Usually ships in 2-12 days

0

57

Snapper Pro 5104176

PAD, T-712 FRICTION MATERIAL
(Superseded to 5104176FS)

$11.99

$

Usually ships in 2-12 days

0

58

Snapper Pro 5101640

SPACER, .38 X .50 X .50
(Superseded to 5101640YP)

$7.49

$

Usually ships in 2-12 days

0

59

Snapper Pro 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

60

Snapper Pro 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

62

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

63

Snapper Pro 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

64

Snapper Pro 5025155

WASHER, 5/16" SAE

Note: (Qty: 2 - S/N: 2017118253 & Below)

$

$

Currently unavailable

65

Snapper Pro 5025011X20

BOLT, 5/16-18 X 2-1/2 GD5 CZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

66

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

67

Snapper Pro 5022392

BALL JOINT, 3/8-24 FEMALE, LH
(Superseded to 5022392FS)

$24.99

$

Usually ships in 2-12 days

0

68

Snapper Pro 5104568

U-CHANNEL, RPVC #6236 X 4"
(Superseded to 5104568FS)

$2.99

$

Usually ships in 2-12 days

0

69

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

70

Snapper Pro 5413926A

WELD, OPC ROD, WALK - BLK

Note: (S/N: 2017118254 - 2017170234)

$64.99

$

Usually ships in 2-12 days

0

71

Snapper Pro 703429

NUT, Wing, 5/16-18

Note: (S/N: 2017118254 & Above)

$3.99

$

Usually ships in 2-12 days

0

72

Snapper Pro 5414181A

WELD, W25 CONTROL PIVOT, RH - BLK

Note: (S/N: 2017170235 & Above)

$88.99

$

Usually ships in 2-12 days

0

73

Snapper Pro 5414182A

WELD, W25 CONTROL PIVOT, LH - BLK

Note: (S/N: 2017170235 & Above)

$101.99

$

Usually ships in 2-12 days

0

74

Snapper Pro 5414411A

TAB, PIVOT, W35 - BLK

Note: (S/N: 2017170235 & Above)

$

$

Currently unavailable

75

Snapper Pro 5414516A

WELD, OPC ROD, WALKBEHIND - BLK

Note: (S/N: 2017170235 & Above)

$71.99

$

Usually ships in 2-12 days

0
