SW 25 (5901438) - Snapper Pro SW25 CC Series 48" Walk-Behind Mower, 15hp Kawasaki Handle Bar & Instrument Control Group Parts Diagram

SW25 CC Series 48" Walk-Behind Mower, 15hp Kawasaki

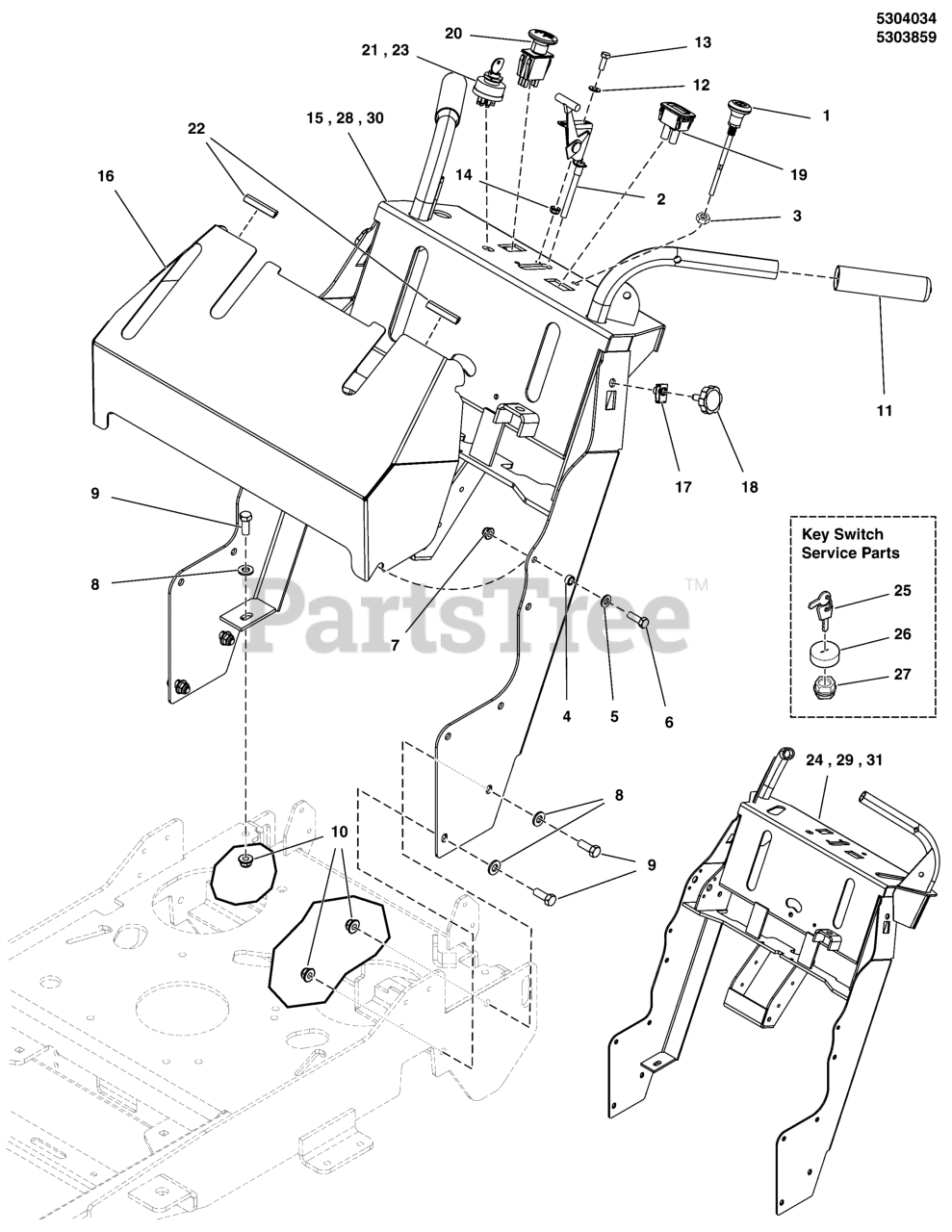

Handle Bar & Instrument Control Group Parts Diagram

  • Title

1

Snapper Pro 5047779

CABLE, CHOKE CONTROL, 51"
(Superseded to 5047779SM)

$52.99

$

In Stock, only 4 left!

0

2

Snapper Pro 5104660

CABLE, THROTTLE, 48" DETENTED
(Superseded to 5104660FS)

Note: (Kawasaki Models)

$24.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5047629

CABLE THROTTLE, 48"
(Superseded to 5047629SM)

Note: (Briggs & Stratton Models)

$62.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025309

NUT, HEX 3/8-24
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

In Stock, only 4 left!

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

9

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

10

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Snapper Pro 5104659

GRIM, FOAM, .940" ID X 4.62" X .187", BLK
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

14

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

15

Snapper Pro 5412590D

** WELD, HANDLE BARS, FW25 - RED

Note: (Standard Handle Bars - S/N: 2017118253 & Below)

$

$

Currently unavailable

16

Snapper Pro 5600848

ASSM, HB GUARD W/DECALS, SW25 - DOM

Note: (5413336D)

$171.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

18

Snapper Pro 5108141

KNOB, 5/16-18 X 1.00, ROSETTE, BLK
(Superseded to 5108141FS)

$4.99

$

In Stock, only 1 left!

0

19

* HOUR METER, ASSEMBLE

$

$

Not available

20

Snapper Pro 5104697

PTO SWITCH, MOMENTARY, SMALL KNOB
(Superseded to 5104697FS)

$30.99

$

In Stock, Qty 14

0

21

Snapper Pro 5021842

SWITCH, IGNITION, 2 POST
(Superseded to 5021842SM)

Note: (Manual Start)

$37.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5050853X3

BLACK BODY MOLDING, 3" LONG
(Superseded to 5050853X3FS)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Electric Start)

$33.99

$

In Stock, only 3 left!

0

24

Snapper Pro 5412707D

** WELD, HANDLE BARS, FW25 CC - RED

Note: (Centralized Control Handle Bars - S/N: 2017118253 & Below)

$

$

Currently unavailable

25

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

26

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

27

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

28

Snapper Pro 5413922D

** WELD, HANDLE BARS, FW25 - RED

Note: (Standard Handle Bars - S/N: 2017118254 - 2017170234)

$

$

Currently unavailable

29

Snapper Pro 5413923D

** WELD, HANDLE BARS, FW25 CC - RED

Note: (Centralized Control Handle Bars - S/N: 2017118254 - 2017170234)

$

$

Currently unavailable

30

Snapper Pro 5414456B

** WELD, HANDLE BARS, W25 - STND - RED
(Superseded to 5414456BFS)

Note: (Standard Handle Bars - S/N: 2017170235 & Above)

$1019.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5414457B

** WELD, HANDLE BARS, W25 - CC - RED
(Superseded to 5414457BFS)

Note: (Centralized Control Handle Bars - S/N: 2017170235 & Above)

$1019.99

$

Usually ships in 2-12 days

0
