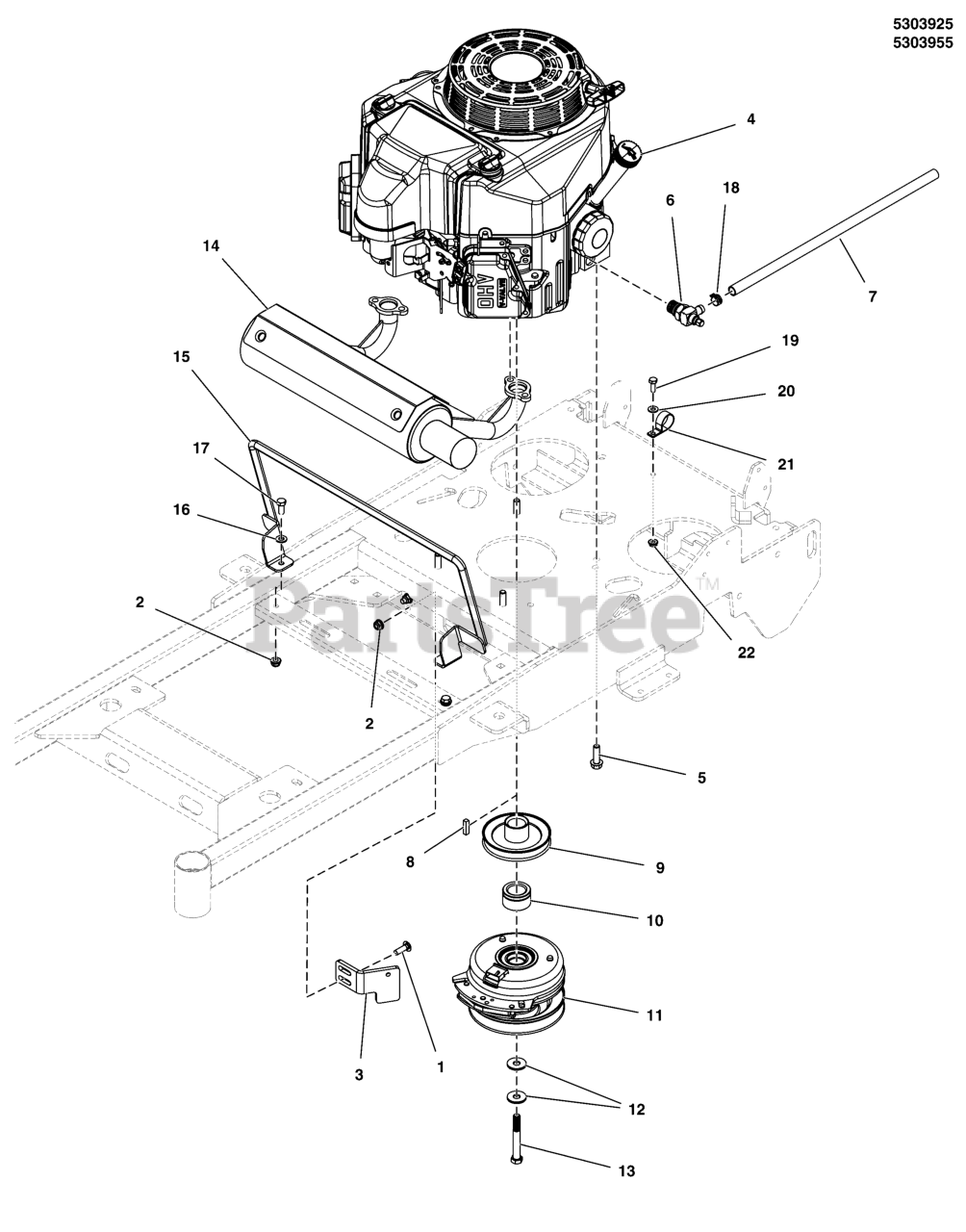

SW 25 (5901438) - Snapper Pro SW25 CC Series 48" Walk-Behind Mower, 15hp Kawasaki Engine & PTO Group Parts Diagram

SW25 CC Series 48" Walk-Behind Mower, 15hp Kawasaki

Engine & PTO Group Parts Diagram

  • Title

1

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

2

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5413242A

PLATE, CLUTCH ANCHOR, SW25/FW25 - BLK
(Superseded to 5421638AAFS)

$147.99

$

Usually ships in 2-12 days

0

4

ENGINE 15HP KAW MAN START 1-1/8"X108.8MM

$

$

Not available

4

ENGINE, 18.5HP KAWASAKI, FS600V, ELEC ST

$

$

Not available

5

Snapper Pro 5025532

BOLT, 3/8-16 X 1-1/4, SF, PLT W/PATCH
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

6

Snapper Pro 5104567

VALVE, OIL DRAIN, 90 DEG. M20 X 2.5 THD
(Superseded to 5104567FS)

$43.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5104570X18

TUBING,CLEAR PVC,1/2"IDX5/8"OD X 18"LG

$

$

Currently unavailable

8

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5104236

PULLEY, CRANKSHAFT, 1.125ID X 4.50OD, OS
(Superseded to 5104236FS)

$44.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5103892

SPACER, 1.13 X 1.75 X .75, CZ
(Superseded to 5103892YP)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5104440

CLUTCH, WARNER, 105 ft lbs - 1.13"
(Superseded to 5104440FS)

$343.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

13

Snapper Pro 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

$5.49

$

In Stock, only 2 left!

0

14

Snapper Pro 5104539

MUFFLER, 15-19HP KAWI, WALKS
(Superseded to 5104539FS)

$272.99

$

In Stock, only 1 left!

0

15

Snapper Pro 5413678A

WELD, GUARD, MUFFLER, W25 - BLK

Note: (USA Models Only)

$78.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

18

Snapper Pro 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0
