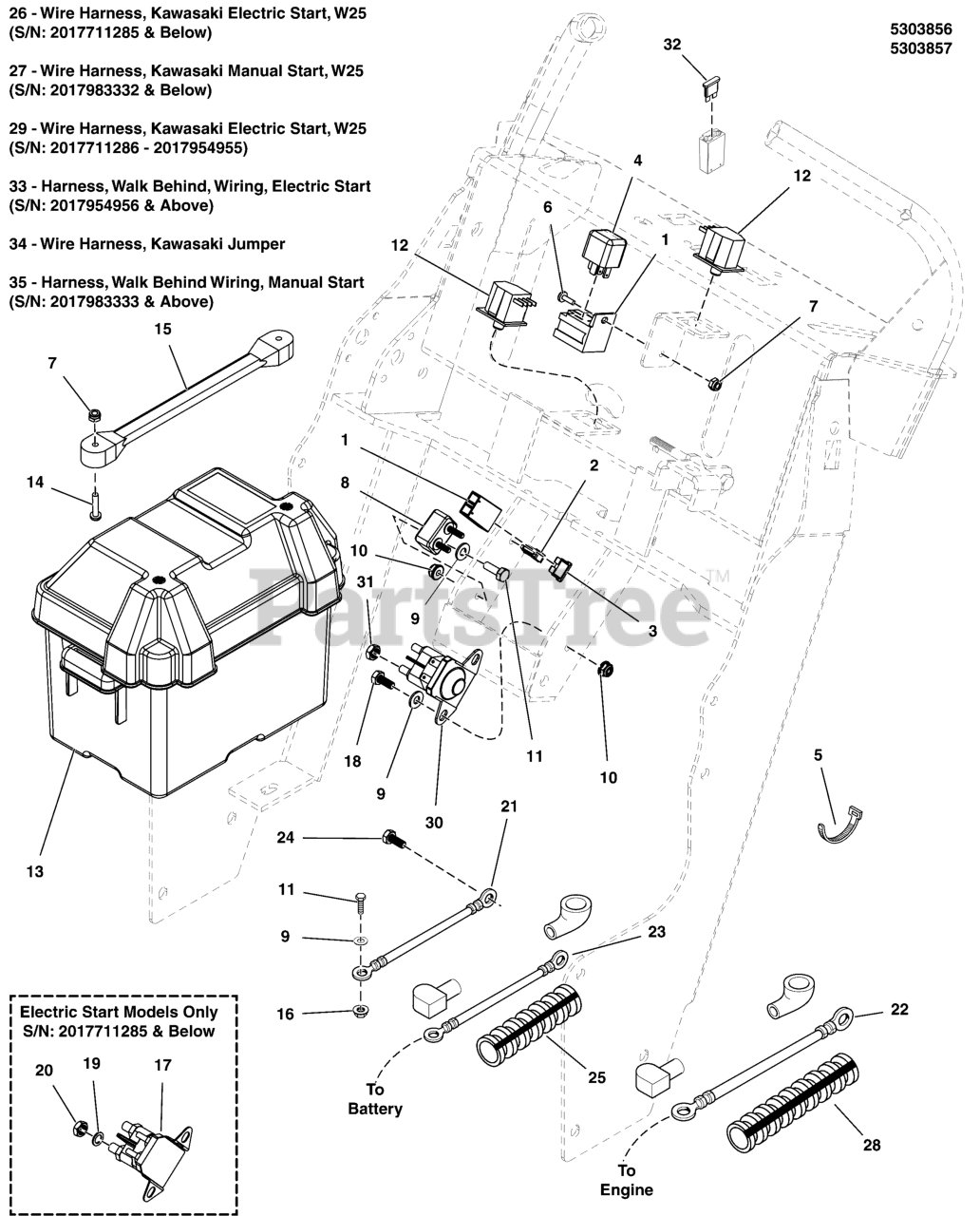

SW 25 (5901438) - Snapper Pro SW25 CC Series 48" Walk-Behind Mower, 15hp Kawasaki Electrical Group Parts Diagram

SW25 CC Series 48" Walk-Behind Mower, 15hp Kawasaki

Electrical Group Parts Diagram

  • Title

1

SEE WIRE HARNESS PART NUMBER

$

$

Not available

2

Snapper Pro 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

Note: (Qty: 1 - Manual Start Models)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021766

RELAY, 12 VOLT, 40 AMP
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

6

Snapper Pro 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

7

Snapper Pro 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

Note: (Qty: 1 - Manual Start Models)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

Note: (Electric Start Models Only - S/N: 2017711285 & Below)

$14.99

$

In Stock, Qty 20+

0

9

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

Note: (Electric Start Models Only)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

Note: (Electric Start Models Only)

$3.99

$

In Stock, Qty 20+

0

11

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

Note: (Electric Start Models Only)

$3.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5101280

SWITCH, PLUNGER, NO/NC SNAP-IN, LOW PROFILE
(Superseded to 5101280YP)

$30.99

$

In Stock, Qty 11

0

13

Snapper Pro 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

Note: (Electric Start Models Only)

$65.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

Note: (Electric Start Models Only)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

Note: (Electric Start Models Only)

$13.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (Electric Start Models Only)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

Note: (Electric Start Models Only - S/N: 2017711285 & Below)

$29.99

$

Usually ships in 2-12 days

0

18

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

Note: (Electric Start Models Only)

$

$

Not available

19

Snapper Pro 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

Note: (Electric Start Models Only - S/N: 2017711285 & Below)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

Note: (Electric Start Models Only - S/N: 2017711285 & Below)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

Note: (Electric Start Models Only)

$16.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5023488

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5023488SM)

Note: (Electric Start Models Only)

$27.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5047136

BATTERY CABLE, POS, 15, 1/4-5/16
(Superseded to 5047136SM)

Note: (Electric Start Models Only)

$22.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5050927X10

WIRE LOOM, 3/8 ID X 10 IN
(Superseded to 5050927X10FS)

Note: (Electric Start Models Only)

$2.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5412954

WIRE HARNESS, KAWI ELEC START, SW25

Note: (Electric Start Models Only - S/N: 2017711285 & Below)

$296.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5412955

WIRE HARNESS, KAWI MANUAL START, SW25

Note: (Manual Start Models Only - S/N: 2017983332 & Below)

$275.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5050927X16

WIRE LOOM, 3/8 ID X 16 IN
(Superseded to 5050927X16YP)

Note: (Electric Start Models Only)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5416152

WIRE HARNESS, W25, KAWI ELECTRIC

Note: (Electric Start Models Only - S/N: 2017711286 - 2017954955)

$841.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 1755382

SOLENOID, STD-BRACKET, 2-SPADE
(Superseded to 1755382FS)

Note: (Electric Start Models Only - S/N: 2017711286 & Above)

$27.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

Note: (Electric Start Models Only - S/N: 2017711286 & Above)

$3.49

$

In Stock, Qty 12

0

32

Snapper Pro 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

Note: (Electric Start Models Only - S/N: 2017711286 & Above)

$4.99

$

In Stock, only 2 left!

0

33

Snapper Pro 5105538

HARNESS, WALK BEHIND, WIRING
(Superseded to 5105538FS)

Note: (Electric Start Models Only - S/N: 201954956 & Above)

$195.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5104811

WIRE HARNESS, JUMPER, KAWI
(Superseded to 5104811YP)

Note: (Electric Start Models Only - S/N: 201954956 & Above)

$18.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5105539

HARNESS, MANUAL START WALK WIRING

Note: (Manual Start Models Only - S/N: 2017983333 & Above)

$

$

Currently unavailable
