SW 25 (5901436) - Snapper Pro SW25 CC Series 36" Walk-Behind Mower, 19hp Kawasaki 36" Mower Deck - Housing, Covers, Spindles & Blades S/N: 2017555757 & Above Parts Diagram

SW25 CC Series 36" Walk-Behind Mower, 19hp Kawasaki

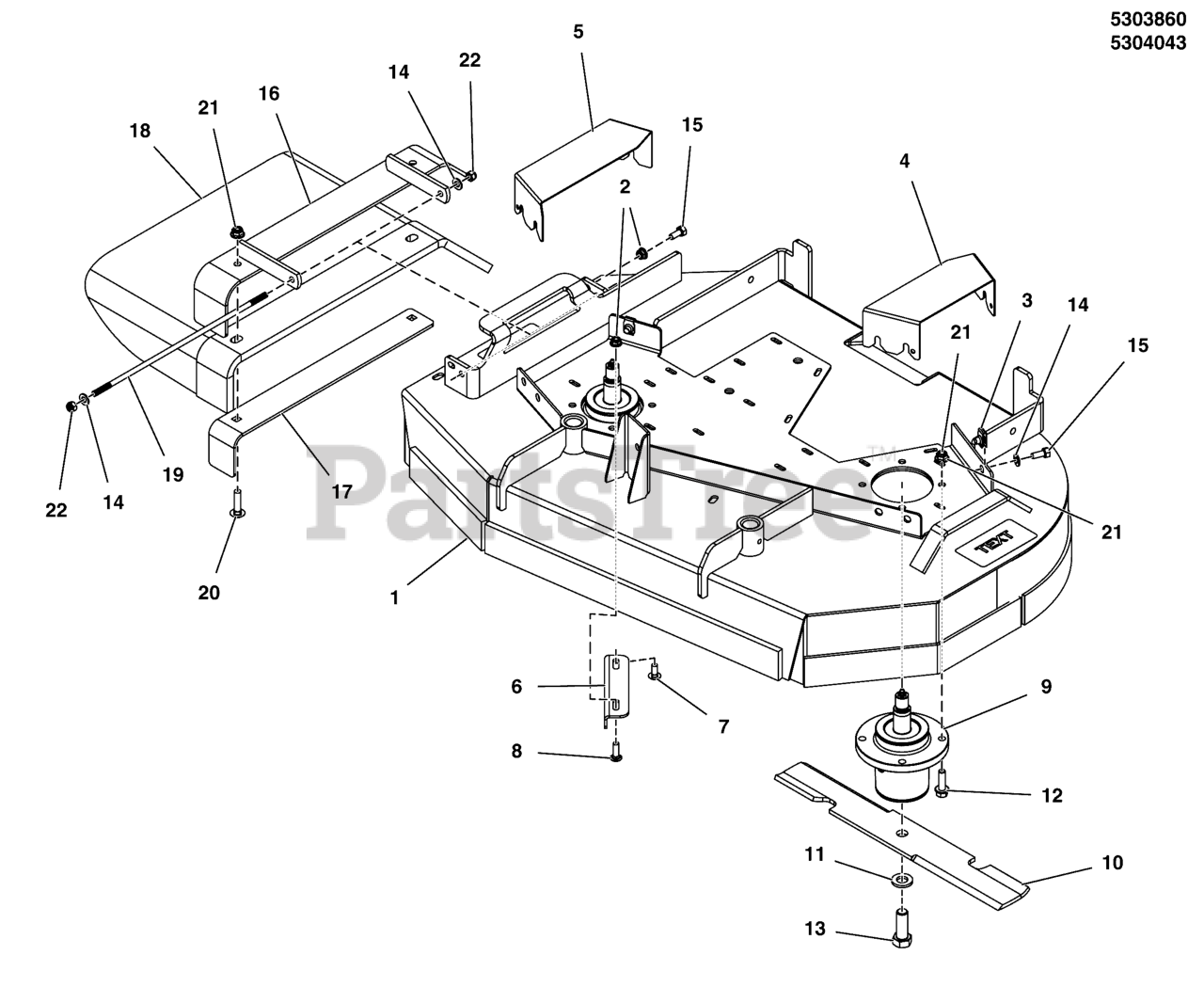

36" Mower Deck - Housing, Covers, Spindles & Blades S/N: 2017555757 & Above Parts Diagram

  • Title

1

Snapper Pro 5601052

DECK SHELL W/DECALS, SW25-36 (5415679D)

$1155.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5415811D

GUARD, DECK, LH, W25 36 - RED

$

$

Currently unavailable

5

Snapper Pro 5415810D

GUARD, DECK, RH, W25 36 - RED

$

$

Currently unavailable

6

Snapper Pro 5415547A

PLATE, DEFLECTOR, 36" - BLK

$12.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

8

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

9

Snapper Pro 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101756X2

BLADE SET, 36 DECK (2)

Note: (SET OF 2 BLADES)

$59.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

12

Snapper Pro 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

16

Snapper Pro 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5413401A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413401AA)

$32.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5413498

CHUTE, RUBBER DISCHARGE CHUTE (5104441)

Note: (5104441)

$165.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

22

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0
