SW 25 (5901435) - Snapper Pro SW25 Series 36" Walk-Behind Mower, 15hp Kawasaki Motion Control Group - Spring Assemblies Parts Diagram

SW25 Series 36" Walk-Behind Mower, 15hp Kawasaki

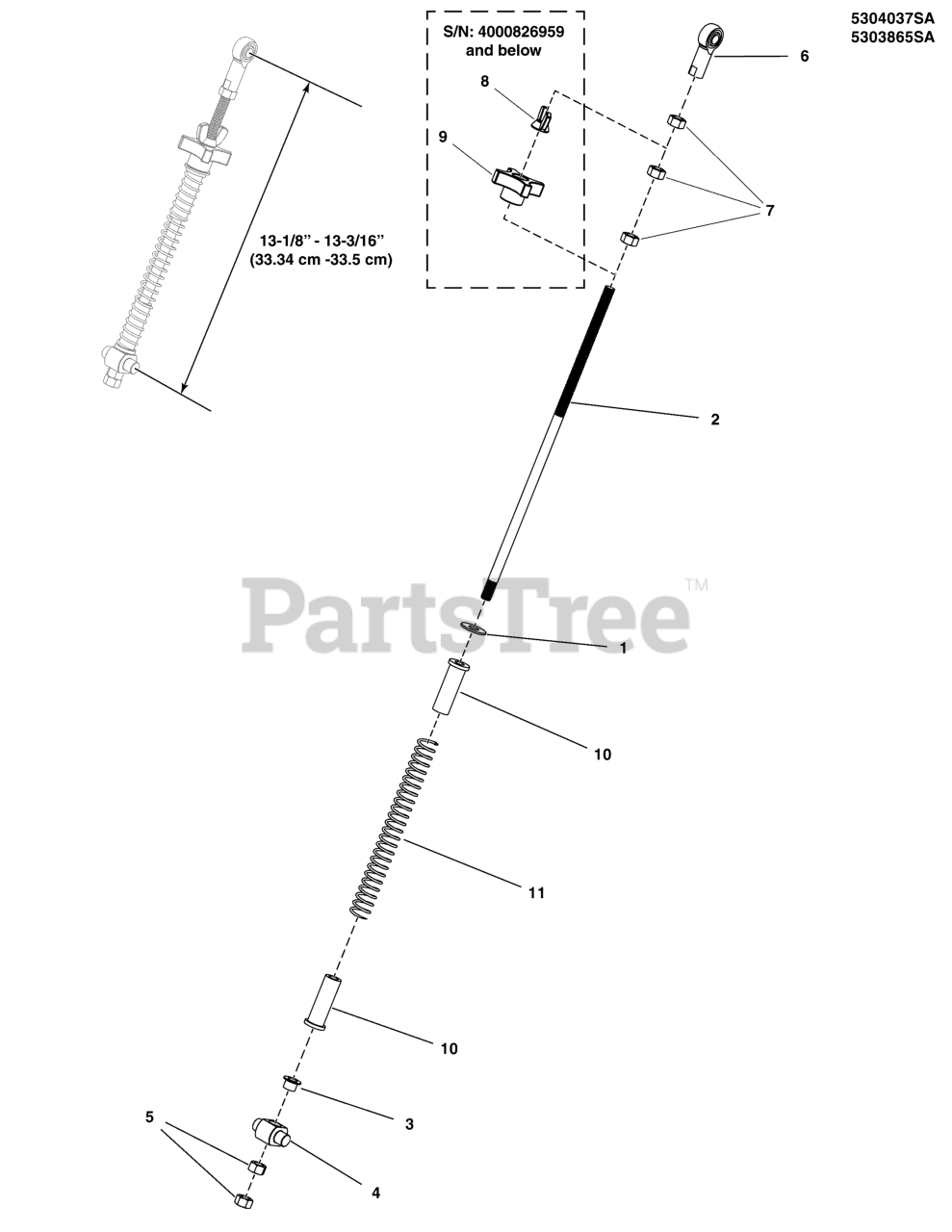

Motion Control Group - Spring Assemblies Parts Diagram

  • Title

1

Snapper Pro 5025401

WASHER, 3/8 USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5104229

ROD, CONTROL SYSTEM, WALK
(Superseded to 5104229FS)

$39.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5102773

BUSHING, .38ID X .47 OD X .38L, FL
(Superseded to 5102773FS)

$2.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5103022

TRUNION, 1/2" POSTS, STAINLESS
(Superseded to 5103022FS)

$34.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

Note: (Qty: 2 - S/N: 4000826959 and below)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025608

WING NUT, 3/8-24, CZ
(Superseded to 5025608FS)

Note: (S/N: 4000826959 and below)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5104174

KNOB, 4 ARM, 3/8-24
(Superseded to 5104174FS)

Note: (S/N: 4000826959 and below)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5104374

SPRING,COMP,.645IDX8.00LGX.080WR,BLK E-C
(Superseded to 5104374FS)

$4.99

$

Usually ships in 2-12 days

0
