SW 25 (5901435) - Snapper Pro SW25 Series 36" Walk-Behind Mower, 15hp Kawasaki 36" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2017555757 & Above Parts Diagram

SW25 Series 36" Walk-Behind Mower, 15hp Kawasaki

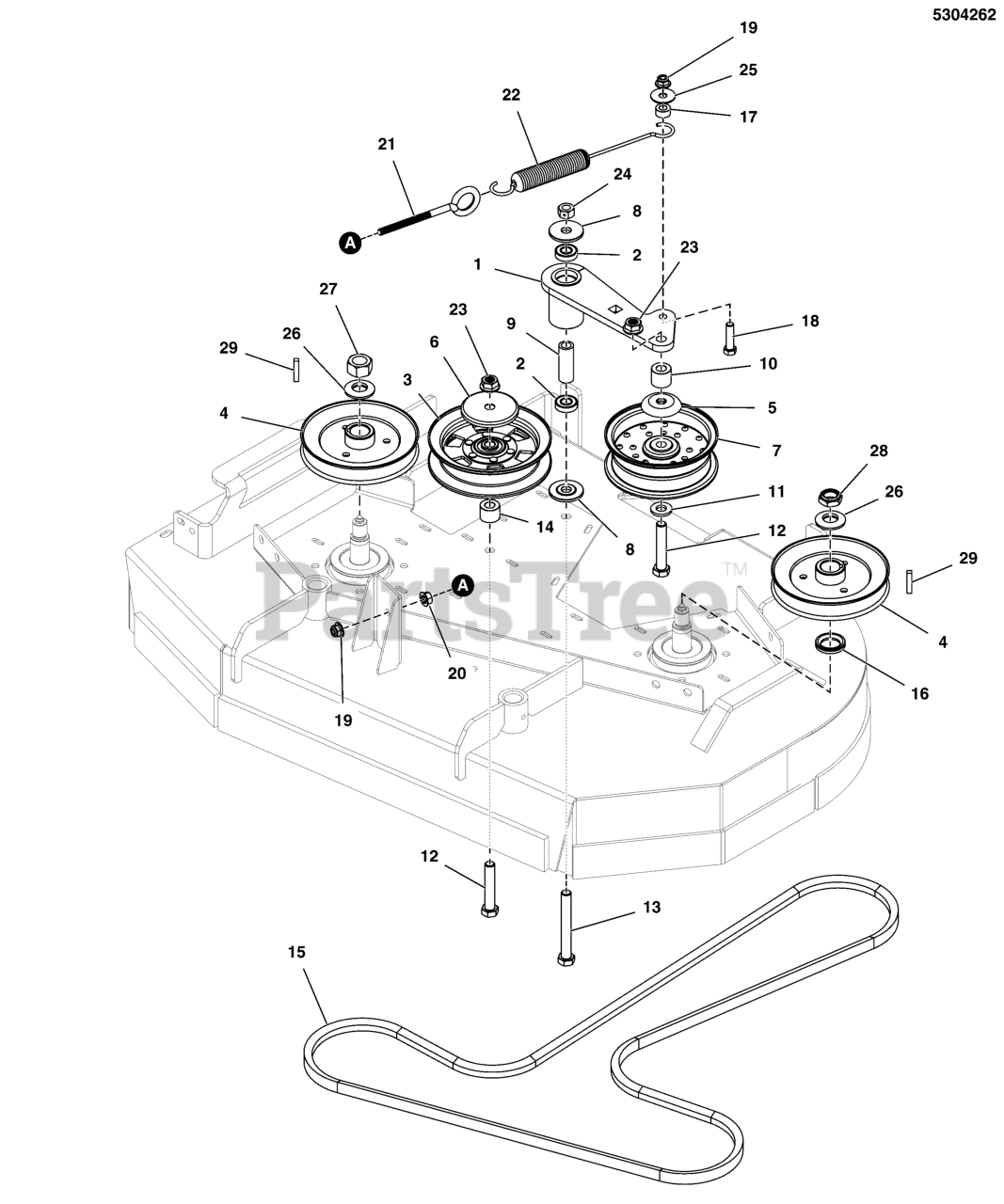

36" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2017555757 & Above Parts Diagram

  • Title

1

Snapper Pro 5415807A

WELD, IDLER ARM, DECK DRIVE, W25 36 -BLK

$102.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 13

0

3

Snapper Pro 5104716

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID
(Superseded to 5104716YP)

$59.99

$

In Stock, Qty 12

0

4

Snapper Pro 5101351

PULLEY, 5.926OB X .985ID, SINGLE B-SEC
(Superseded to 5101351YP)

$69.99

$

In Stock, Qty 9

0

5

Snapper Pro 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

6

Snapper Pro 5105145

SHIELD, BEARING, 1/2 ID X 2-7/8 OD, CZ
(Superseded to 5105145YP)

$4.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5101312

PULLEY, IDLER, 5.00 WIDE W/ .51 BORE
(Superseded to 5101312FS)

$71.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 15

0

9

Snapper Pro 5104172

SPACER, .505 X .75 X 2.085, CZ
(Superseded to 5104172FS)

$8.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5044673

SPACER, .52 X 1.00 X .88, PM, CZ
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025440

WASHER, 1/2 GD9 CZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

12

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

13

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

14

Snapper Pro 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

15

Snapper Pro 5104353

BELT, B-SEC, 97.6"EL, ARAMID, WRAPPED
(Superseded to 5104353FS)

$92.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5049185

SPACER, 1.00 X 1.50 X .25, CZ
(Superseded to 5049185SM)

$15.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 3 left!

0

18

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

20

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

21

Snapper Pro 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

22

Snapper Pro 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

24

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

25

Snapper Pro 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

26

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

28

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

29

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0
