SW 25 (5901435) - Snapper Pro SW25 Series 36" Walk-Behind Mower, 15hp Kawasaki 36" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2017555756 & Below Parts Diagram

SW25 Series 36" Walk-Behind Mower, 15hp Kawasaki

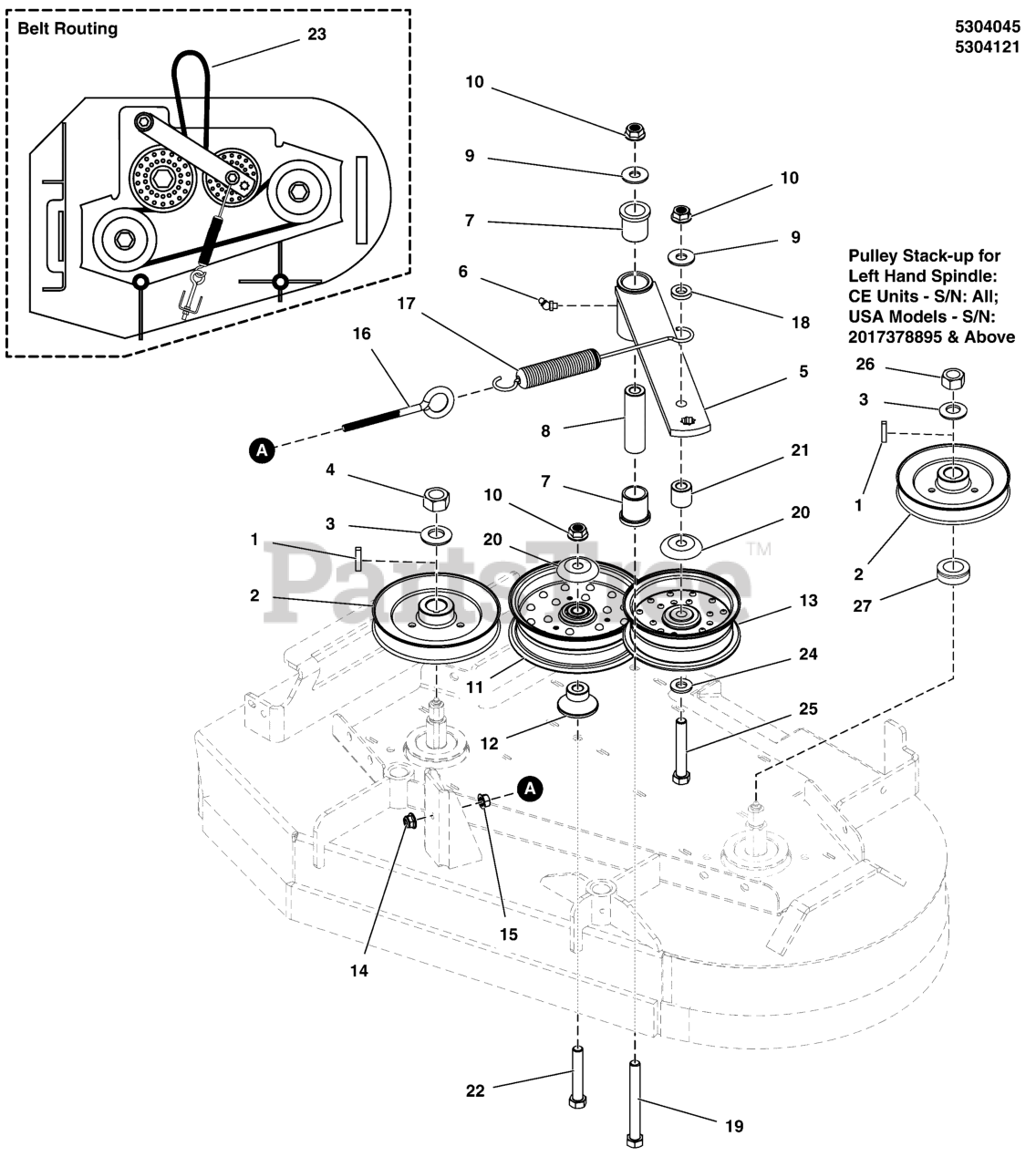

36" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2017555756 & Below Parts Diagram

  • Title

1

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

2

Snapper Pro 5101351

PULLEY, 5.926 OVER BALL
(Superseded to 5101351YP)

$69.99

$

In Stock, Qty 9

0

3

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

Note: (Qty: 2 - USA Units S/N: 2017378894 & Below)

$3.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5401741A

WELD, IDLER ARM (10.50) - BLK
(Superseded to 5401741AYP)

$117.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5020020

GREASE FITTING
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

8

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

9

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

10

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

11

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

12

Snapper Pro 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

13

Snapper Pro 5101312

PULLEY, IDLER, 5.00 WIDE W/ .51 BORE
(Superseded to 5101312FS)

$71.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

16

Snapper Pro 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5044609

SPACER, .52 X 1.00 X .38, CZ
(Superseded to 5044609SM)

$6.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025017X40

BOLT, 1/2-13 X 5 GD5 CZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

20

Snapper Pro 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

21

Snapper Pro 5044673

SPACER, .52 X 1.00 X .88, PM, CZ
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5104353

BELT, B-SEC, 97.6"EL, ARAMID, WRAPPED
(Superseded to 5104353FS)

$92.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025440

WASHER, 1/2 GD9 CZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

25

Snapper Pro 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

26

Snapper Pro 5025448

NUT, 3/4-16, HEX NYLON LOCK
(Superseded to 5025448SM)

Note: (CE Units - S/N: All; USA Units - S/N: 2017378895 & Above)

$3.49

$

In Stock, Qty 20+

0

27

Snapper Pro 5049185

SPACER, 1.00 X 1.50 X .25, CZ
(Superseded to 5049185SM)

Note: (CE Units - S/N: All; USA Units - S/N: 2017378895 & Above)

$15.99

$

In Stock, only 1 left!

0
