SW 20 (5900757) - Snapper Pro SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton Front Frame Group Parts Diagram

SW20 Series 48" Walk-Behind Mower, 16hp Briggs & Stratton

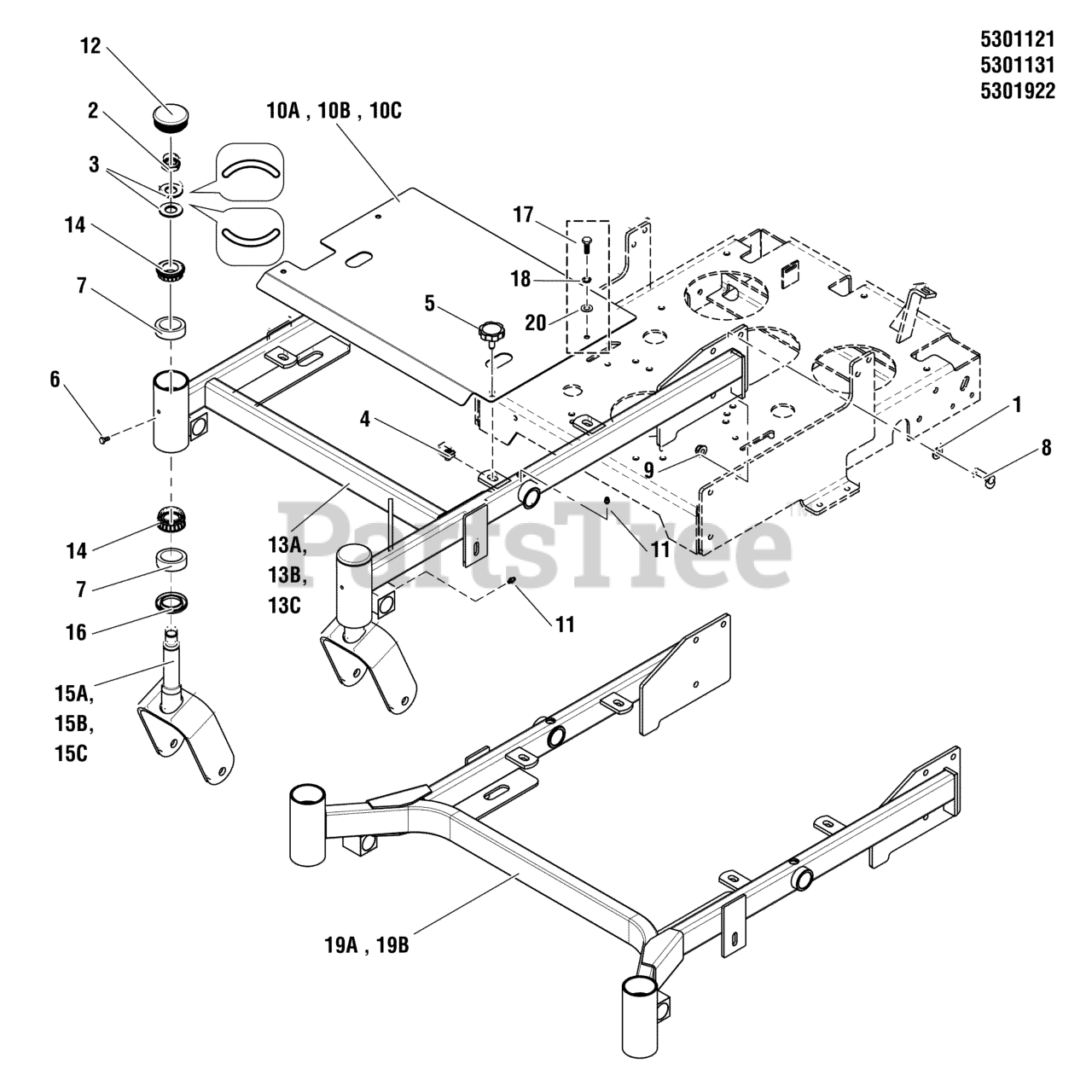

Front Frame Group Parts Diagram

  • Title

1

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

2

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

3

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5101731

KNOB, 5/16-18 X 1.00, ROSETTE, BLK
(Superseded to 5101731YP)

Note: (Domestic Models)

$10.99

$

In Stock, only 4 left!

0

6

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

7

Snapper Pro 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

10a

Snapper Pro 5403338D

PLATE, DECK GUARD

Note: (36" Models)

$69.99

$

Usually ships in 2-12 days

0

10b

Snapper Pro 5403429D

GUARD, DECK LIFT

Note: (48" Models - S/N: 2013477945 & Below)

$57.99

$

Usually ships in 2-12 days

0

10c

Snapper Pro 5404846D

GUARD, DECK LIFT

Note: (48" Models - S/N: 2013477946 & Above)

$

$

Currently unavailable

11

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

12

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

13a

Snapper Pro 5406487D

WELD, FRONT FRAME

Note: (36" Models - FS481V & FS541V Engines)

$

$

Currently unavailable

13b

Snapper Pro 5403289D

WELD, FRONT FRAME

Note: (36" Models - FH381V Engine - S/N: 2012951690 & Above)

$889.99

$

Usually ships in 2-12 days

0

13c

Snapper Pro 5403289D

WELD, FRONT FRAME

Note: (36" Models - FH381V Engine - S/N: 2012951689 & Below)

$889.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

15a

Snapper Pro 5401759D

WELD, CASTER YOKE
(Superseded to 5401759DYP)

Note: (36" Models - FS481V & FS541V Engines)

$136.99

$

Usually ships in 2-12 days

0

15b

Snapper Pro 5407308D

WELD, CASTER YOKE
(Superseded to 5407308DFS)

Note: (All 48" & 36" Models - FH381V - S/N: 2012954690 & Above)

$121.99

$

Usually ships in 2-12 days

0

15c

Snapper Pro 84008464

YOKE, Caster

Note: (36" Models - FH381V Engine - S/N: 2012951689 & Below)

$

$

Currently unavailable

16

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

17

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

Note: (Export Models)

$3.49

$

In Stock, Qty 16

0

18

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

Note: (Export Models)

$3.99

$

In Stock, only 2 left!

0

19a

Snapper Pro 5403626D

WELD, FRONT FRAME

Note: (48" Models - S/N: 2013477945 & Below)

$

$

Currently unavailable

19b

Snapper Pro 5404845D

WELD, FRONT FRAME

Note: (48" Models - S/N: 2013477946 & Above)

$770.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025155

WASHER, 5/16" SAE

Note: (Export Models)

$

$

Currently unavailable
