SW 20 (5900700) - Snapper Pro SW20 Series 48" Walk-Behind Mower, 17hp Kawasaki Motion Control Group - Upper (S/N: 2013371557 & Below) Parts Diagram

SW20 Series 48" Walk-Behind Mower, 17hp Kawasaki

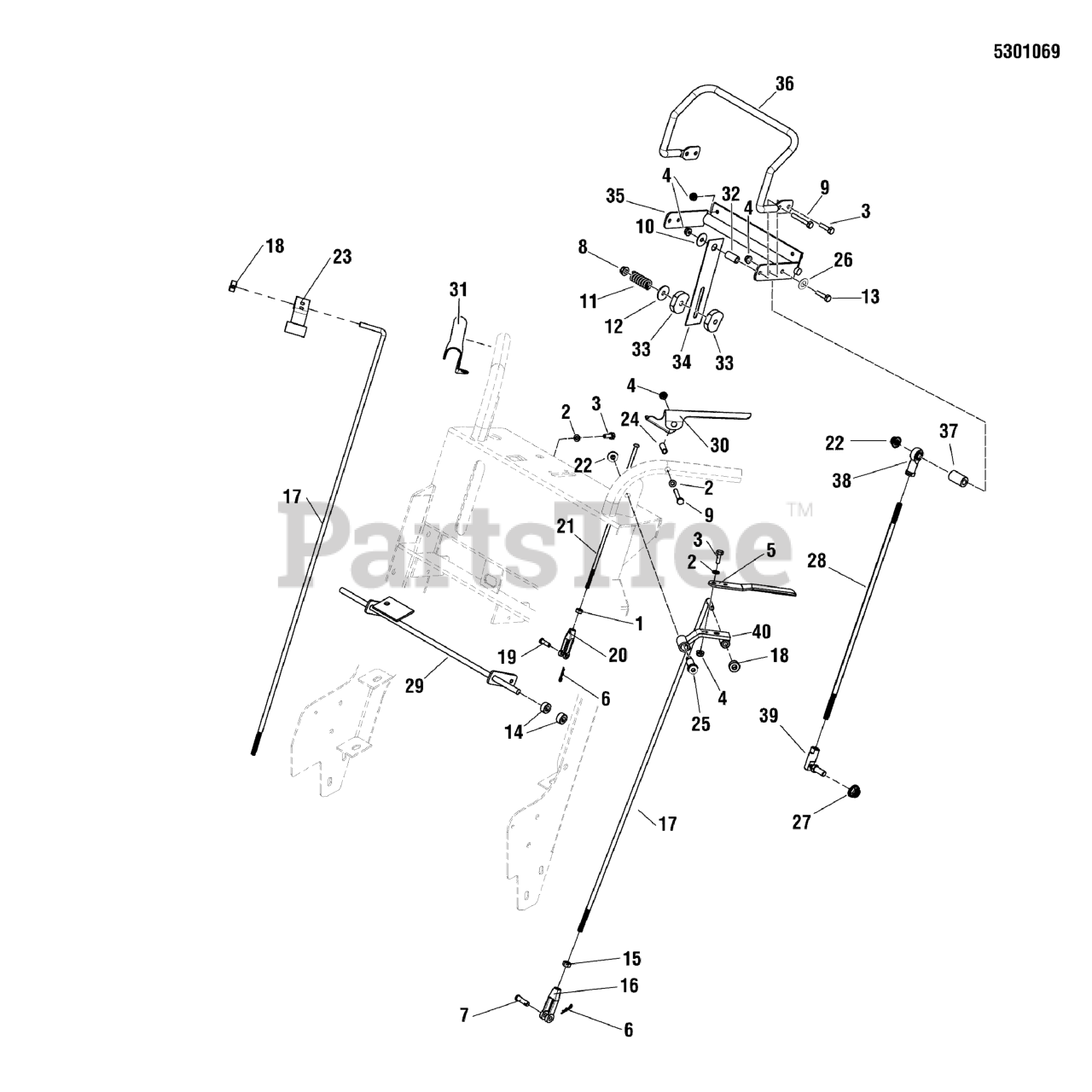

Motion Control Group - Upper (S/N: 2013371557 & Below) Parts Diagram

  • Title

1

Snapper Pro 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5101287A

LEVER, REVERSE HANDLE

$10.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025213X8

PIN, CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025010X14

BOLT, 1/4-20 X 1-3/4" GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5025288

WASHER, 1/4" FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

11

Snapper Pro 5021773

SPRING, BRAKE
(Superseded to 5021773FS)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025164

WASHER, 5/16" FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

14

Snapper Pro 5010546

COLLAR, 3/8" SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5101244

ROD, REVERSING, SNP PRO WB
(Superseded to 5600272)

$101.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5020047

COLLAR, 5/16" SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

19

Snapper Pro 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101242

ROD, OPC LINK, SNP PRO WB
(Superseded to 5101242FS)

$4.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

23

Snapper Pro 5403307D

WELD, REVERSE HANDLE - RH

$

$

Currently unavailable

24

Snapper Pro 5101215

SPACER, .26 X .38 X 1.250, YZ
(Superseded to 5101215YP)

$8.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025220

BOLT, 3/8-16 x 1-1/2", 1/2" SHOULDER
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025097

NUT, 3/8-24 HEX NYLON LOCK
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5101236

ROD, CRUISE CONTROL, SNP PRO WB

$42.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5403239D

WELD, OPC SHAFT- RED

$93.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5104202A

NLA - FLAP, OPS - BLK

$28.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5104201A

NLA - FLAP, OPS - BLK
(Superseded to 5104201AAFS)

$32.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5101274

SPACER, .26 X .50 X 1.00 YZ
(Superseded to 5101274FS)

$5.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 5044726

DDS BRAKE PUCK
(Superseded to 5104176)

$11.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5403778

PLATE, FRICTION CONTROL

$14.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5403776D

WELD, SPEED CONTROL,DDS - RED

$114.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5100744

BAR, SPEED CONTROL, DIPPED

$59.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5101245

SPACER, .38 X .75 X 1.25, YZ
(Superseded to 5101245YP)

$7.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 5022392

ROD END, 3/8-24 LH FEMALE
(Superseded to 5022392FS)

$24.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5020805

BALL JOINT, 3/8-24 FEM, STUD.
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5403959D

WELD, REVERSE HANDLE - LH

$45.99

$

Usually ships in 2-12 days

0
