SW 20 (5900539) - Snapper Pro SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki Parking Brake Group Parts Diagram

SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki

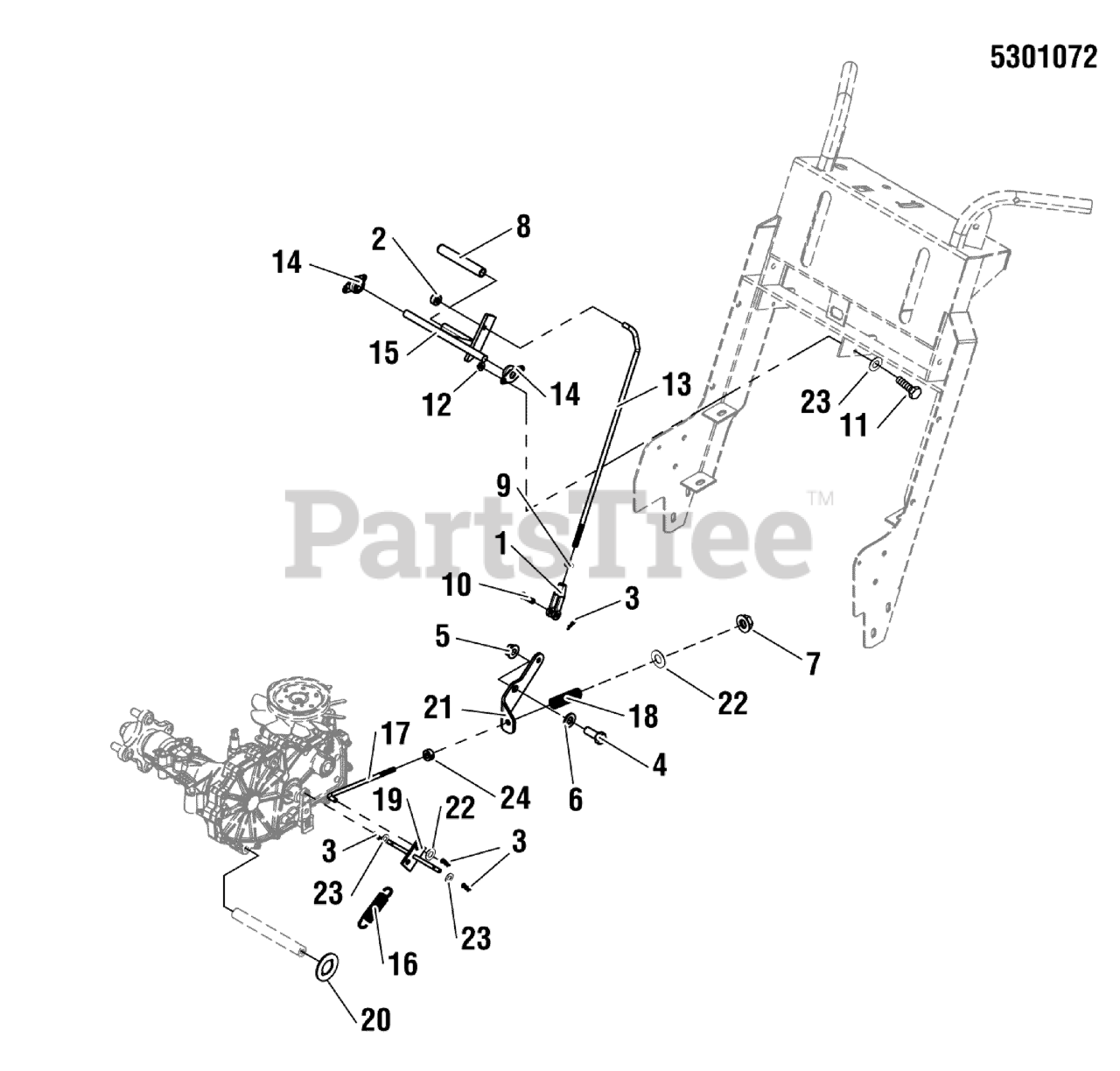

Parking Brake Group Parts Diagram

  • Title
1

Snapper Pro 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

3

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

6

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

7

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

8

Snapper Pro 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025213X8

PIN, CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

13

Snapper Pro 5101116

ROD, PULLER ROD
(Superseded to 5101116SM)

$16.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101123

BEARING, 1/2" FLANGED
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5403361D

WELD BRAKE SHAFT - RED

$21.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5101253

SPRING-EXT, .75 OD X 3.40 LG, X .115 WR

$15.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5101246

ROD, LOWER BRAKE CONTROL

$5.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5023242

SPRING, CONTROL ROD
(Superseded to 5023242SM)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5403395D

WELD, BRAKE LINK CONNECTOR - RED

$42.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5403960

WASHER, KEYED, 1-1/2 OD

$6.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5403312D

LINK, BRAKE PIVOT

$10.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5102997

COLLAR, DOUBLE SPLIT, 5/16 CZ
(Superseded to 5102997FS)

$17.99

$

Usually ships in 2-12 days

0
