SW 20 (5900539) - Snapper Pro SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki Motion Control Group - Lower (36" Models - Kawasaki FS Engines) Parts Diagram

SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki

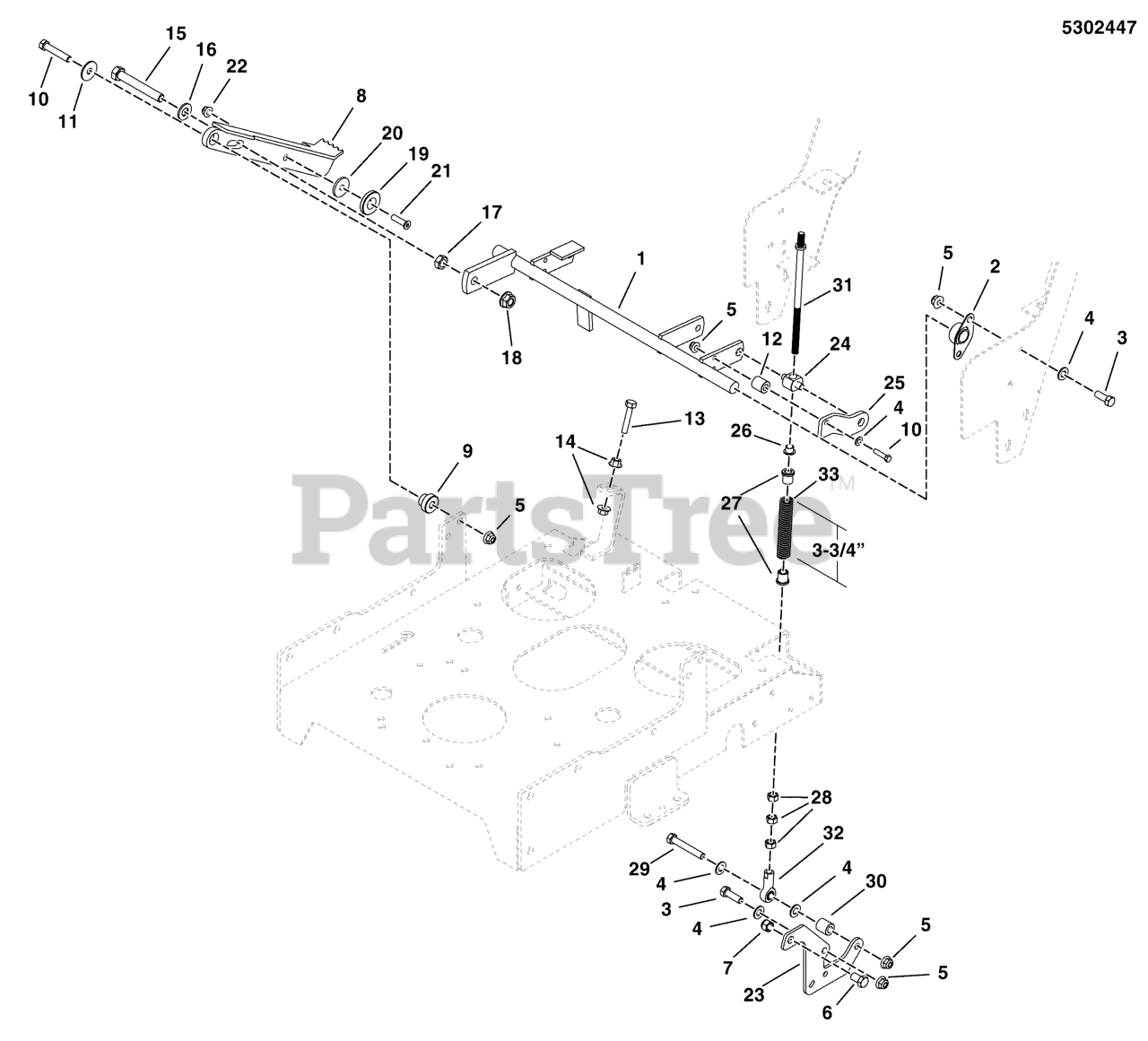

Motion Control Group - Lower (36" Models - Kawasaki FS Engines) Parts Diagram

  • Title

1

Snapper Pro 5407178D

WELD, CONTROL SHAFT, SW20 - RED

$124.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

3

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

4

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper Pro 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 YZ
(Superseded to 5025015X6SM)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5407090D

WELD, FOOT PEDAL, SW30 - RED

$61.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5102406

SPACER, .38 X 1.13 X .781 STEP, CZ
(Superseded to 5102406FS)

$15.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

11

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5047125

SPACER, .39 X 1.00 X .88, CZ
(Superseded to 5047125SM)

$7.99

$

In Stock, only 2 left!

0

13

Snapper Pro 5025538

BOLT, 5/16-24 X 1-3/4, FULL THRD, GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 725338

NUT, .31-24 HEX FLG SERRATED LK
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

15

Snapper Pro 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

16

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

17

Snapper Pro 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

18

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

19

Snapper Pro 5102701

SPACER, .34 X 1.54 X .25 - UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

20

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

21

Snapper Pro 5025561

SCREW, 5/16-18 X 1-1/4, FSHS, BLK, ALLEN

$2.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5407040D

PLATE, CONTROL ARM, SW20 - RED

$14.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5103022

TRUNION, 1/2" POSTS, STAINLESS
(Superseded to 5103022FS)

$34.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5407113D

BRACKET, PIVOT SUPPORT - RED

$14.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102773

BUSHING, .38ID X .47 OD X .38L, FL
(Superseded to 5102773FS)

$2.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5102709

BUSHING, .38 X .75 X .75, PLASTIC
(Superseded to 5102709FS)

$9.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

30

Snapper Pro 5042658

SPACER, .38 X .75 X 1.06, YZ
(Superseded to 5042658SM)

$7.49

$

In Stock, only 1 left!

0

31

Snapper Pro 5102716

ROD, RETURN CONTROL, SW30

$32.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5023320

SPRING-COMP, .615ID X 4.00LG X .080WR
(Superseded to 5023320SM)

$8.49

$

In Stock, only 1 left!

0
