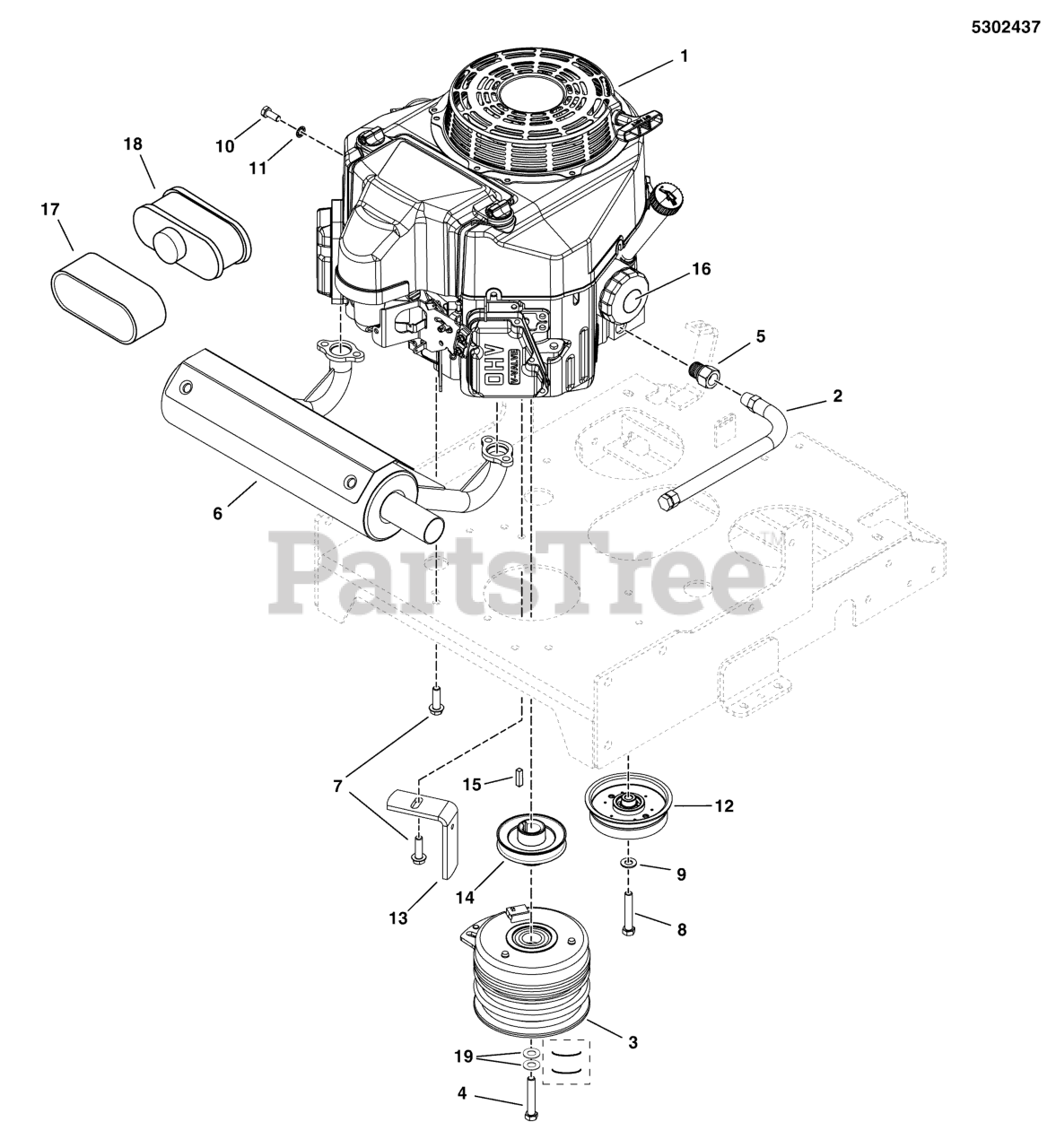

SW 20 (5900539) - Snapper Pro SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki Engine & PTO Group - Kawasaki FS Engines Parts Diagram

SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki

Engine & PTO Group - Kawasaki FS Engines Parts Diagram

  • Title

1

ENGINE, KAWASAKI, MANUAL START, FS SERIES

$

$

Not available

2

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5102217

CLUTCH, WARNER, 125 ft lbs - 1"

$373.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

$5.49

$

In Stock, only 1 left!

0

5

Snapper Pro 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5102765

MUFFLER, KAWASAKI, HORIZONTAL

$275.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025532

BOLT,HEX FLG,SER GD5 3/8-16X1-1/4PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

8

Snapper Pro 5025058X16

BOLT, 3/8-16 X 2 GD5 TFL
(Superseded to 5025058X16SM)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5102496

PULLEY, IDLER, SINGLE FLANGE, 4" OD

$57.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5406655D

ANCHOR, CLUTCH, SINGLE HOLE - RED

$13.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101311

PULLEY, CRANKSHAFT, 1.0005 ID X 4.25 OD

$36.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

16

Snapper Pro 5102278X1

FILTER, OIL (SV)

$

$

Not available

17

Snapper Pro 5102278X2

FILTER, AIR, OUTER (SV)

$

$

Not available

18

Snapper Pro 5102278X3

FILTER, AIR, INNER (SV)

$

$

Not available

19

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0
