SW 20 (5900539) - Snapper Pro SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki 36" Mower Deck - Pulleys, Belt & Idler Arm (Kawasaki FS Engines) Parts Diagram

SW20 Series 36" Walk-Behind Mower, 15hp Kawasaki

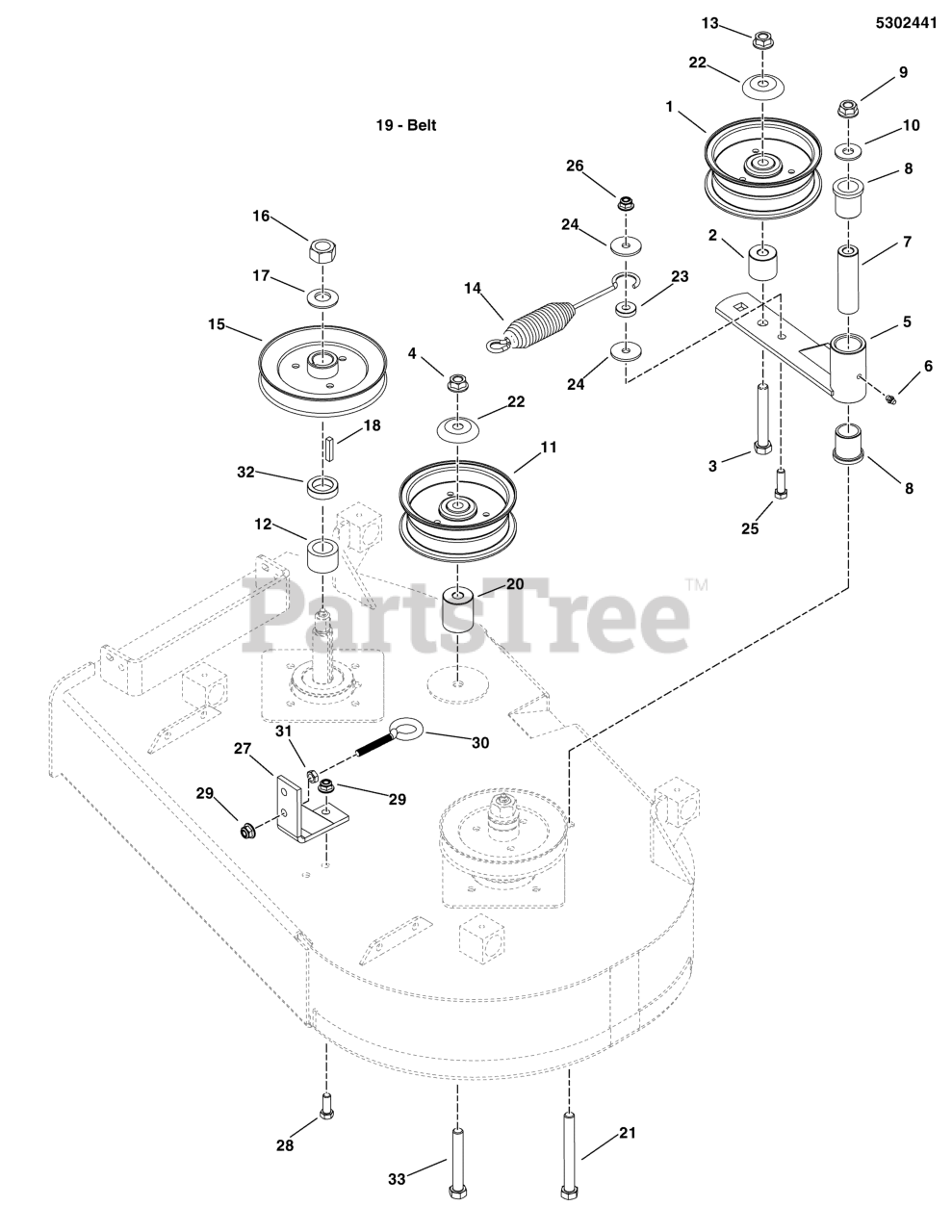

36" Mower Deck - Pulleys, Belt & Idler Arm (Kawasaki FS Engines) Parts Diagram

  • Title

1

Snapper Pro 5101312

PULLEY, IDLER, 5.00 WIDE W/ .51 BORE
(Superseded to 5101312FS)

$71.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5102543

SPACER, .52 X 1.38 X 1.25, CZ

$18.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

5

Snapper Pro 5403424D

WELD, IDLER ARM SHORT - RED

$107.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

8

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

9

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

10

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5101312

PULLEY, IDLER, 5.00 WIDE W/ .51 BORE
(Superseded to 5101312FS)

$71.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101306

SPACER, 1.00 X 1.50 X 1.00 CZ

$13.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

14

Snapper Pro 5100632

SPRING, EXTENSION, SWIVEL. LONG HOOK
(Superseded to 5100632YP)

$38.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5023178

PULLEY-6.122 OD X .98 BORE
(Superseded to 5023178SM)

$71.99

$

In Stock, only 2 left!

0

16

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

19

Snapper Pro 5020871

BELT, BP-SEC, 87.99EL, ARAMID, WRPD

$85.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5102409

SPACER. .52 X 1.50 X 1.75, CZ

$25.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

22

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

23

Snapper Pro 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

24

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

26

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Snapper Pro 5403902D

WELD, ANCHOR EYEBOLT - RED

$

$

Currently unavailable

28

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

29

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

30

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

31

Snapper Pro 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 14

0

32

Snapper Pro 5042133

SPACER, 1.01 X 1.50 X .37, CZ
(Superseded to 5042133YP)

$12.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0
