SW-18KH - Scag Walk-Behind Mower, 18hp Kohler (SN: 10000 - 19999) CUTTER DECK 36" Parts Diagram

Walk-Behind Mower, 18hp Kohler

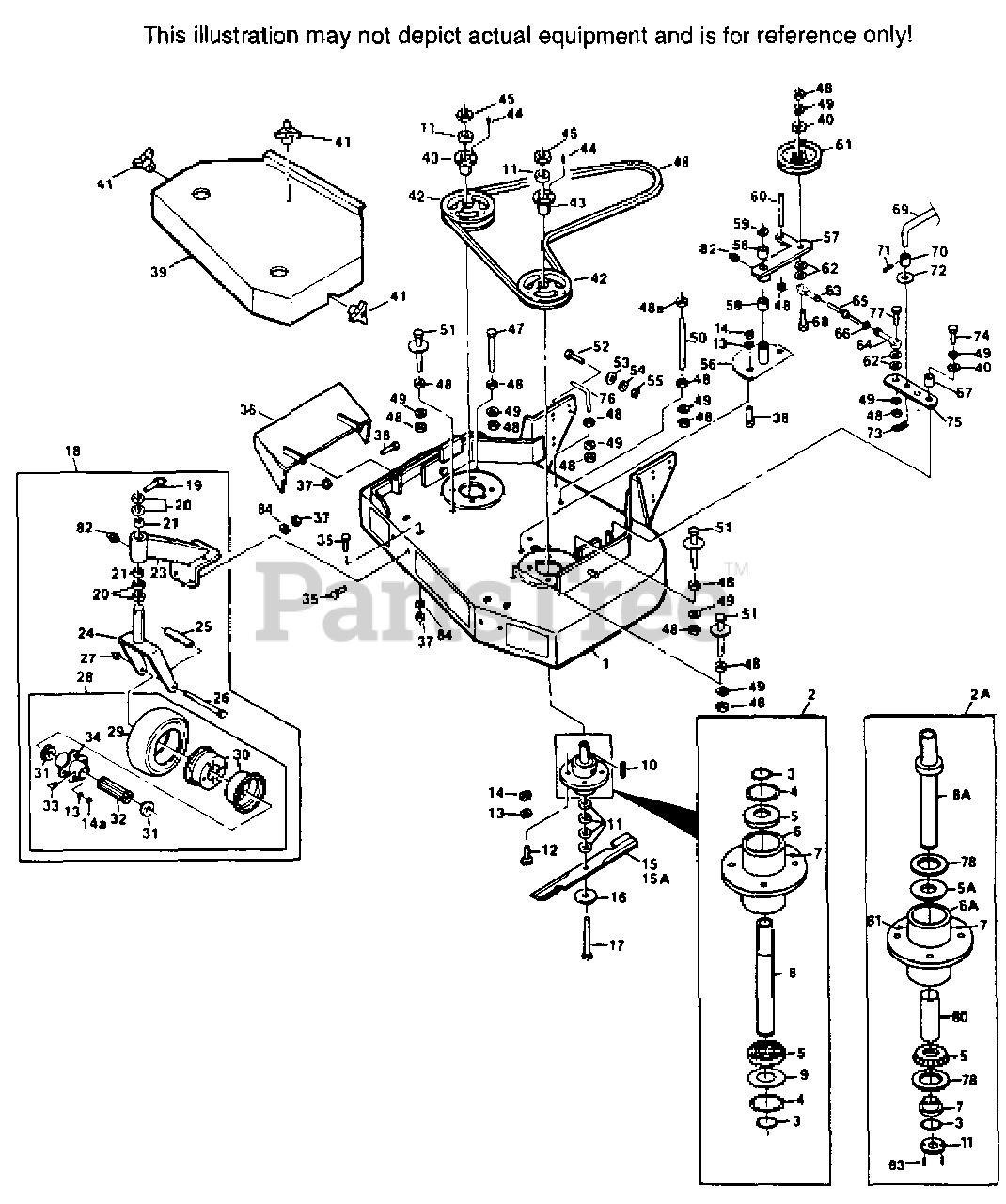

CUTTER DECK 36" Parts Diagram

  • Title

1

Scag 46397

CUTTER DECK(INCLUDES DECALS)

$

$

Not available

2

Scag 46020

CUTTER SPINDLE ASSY.(INCLUDES ITEMS 3-9)
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

2A

Scag 46400

CUTTER SPINDLE ASSY.

$

$

Not available

3

Scag 04050-04

RETAINING RING, 1" EXT-INVERTED

$1.99

$

In Stock, Qty 5

0

4

Scag 04050-07

RETAINING RING, 2-7/16 INT.BSC

$3.99

$

Usually ships in 2-12 days

0

5

Scag 48101-02

BEARING, SPINDLE

$25.99

$

Usually ships in 2-12 days

0

5A

Scag 48668

TAPERED BEARING

$24.99

$

In Stock, Qty 20+

0

6

Scag 41001

SPINDLE HOUSING

$

$

Not available

6A

Scag 41007

SPINDLE HOUSING
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

7

Scag 48114-02

GREASE FITTING, STR., 5/16 SERR

$1.99

$

In Stock, only 3 left!

0

8

Scag 43001-02

SPINDLE, CUTTER BLADE

$53.99

$

In Stock, only 3 left!

0

8A

Scag 45391

SPINDLE SHAFT
(Superseded to 43275)

$68.99

$

Usually ships in 2-12 days

0

9

Scag 04041-02

WASHER, 1-5/16 X 2-7/16 X 16 GA.

$22.99

$

In Stock, only 2 left!

0

10

Scag 04063-08

KEY, 1/4 X 1/4 X 2

$1.49

$

In Stock, Qty 20+

0

11

Scag 43038

SPACER, CUTTER BLADE - SMALL
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

?11A

Scag 43201

SPACER, CUTTER BLADE - LARGE

$20.99

$

Usually ships in 2-12 days

0

12

HEX HD. BOLT, 5/16-18 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

13

LOCKWASHER, SPRING, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

14

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

14A

HEX NUT, 5/16-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

15

Scag 48108

CUTTER BLADE 18"
(Superseded to 481707)

$23.99

$

In Stock, Qty 20+

0

15A

Scag 48185

CUTTER BLADE 18" HI LIFT
(Superseded to 481711)

$41.99

$

Usually ships in 2-12 days

0

16

Scag 04040-10

FLAT WASHER, 5/8 W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

HEX HD. BOLT, 5/8-11 X 9-1/2

$15.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSEMBLY(INCLUDES ITEMS 19-28)

$405.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.99

$

In Stock, Qty 7

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2" LONG

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

BRONZE BEARING

$2.99

$

In Stock, Qty 5

0

23

Scag 46082

SUPPORT ASSEMBLY(INCLUDES ITEMS 21, 82).

$152.99

$

In Stock, only 1 left!

0

24

Scag 45006

CASTER YOKE

$67.99

$

In Stock, only 1 left!

0

25

Scag 43022

SLEEVE, CASTER WHEEL BRG.

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

HEX HD. BOLT, 1/2-13 X 5-1/2

$4.49

$

In Stock, Qty 15

0

27

HEX LOCKNUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

28

Scag 48307

WHEEL ASSY.(INCLUDES 13-14A, 29-34)

$155.99

$

Usually ships in 2-12 days

0

29

Scag 48307-02

TIRE ONLY CASTER WHEEL
(Superseded to 481774)

$89.99

$

Usually ships in 2-12 days

0

Scag 48006-03

INNER TUBE ONLY (NOT SHOWN)
(Superseded to 481773)

$21.99

$

In Stock, only 2 left!

0

30

Scag 48307-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$72.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

RETAINER, BEARING, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$28.99

$

In Stock, only 2 left!

0

33

Scag 48114-03

GREASE FITTING, 45 DEG. 1/4-28

$5.49

$

In Stock, Qty 6

0

34

Scag 48006-05

HUB ASSEMBLY
(Superseded to 481768)

$66.99

$

Usually ships in 2-12 days

0

35

HEX HD BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

36

Scag 45100

DISCHARGE CHUTE
(Superseded to 461291)

$97.99

$

Usually ships in 2-12 days

0

37

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

38

HEX HD BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

39

Scag 46085

BELT COVER ASSEMBLY(INCLUDES DECAL)
(Superseded to 46797)

$349.99

$

Usually ships in 2-12 days

0

40

WASHER, 25/64 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

?40A

WASHER, 13/32 X 13/16 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

41

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

42

Scag 48127

PULLEY(INCLUDES ITEMS 43-44)
(Superseded to 482744)

$

$

Not available

43

Scag 48141

TAPERED HUB

$30.99

$

In Stock, only 1 left!

0

44

HEX HD. BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

45

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

46

Scag 48204

BELT, BLADE DRIVE

$41.99

$

In Stock, Qty 5

0

47

HEX HD. BOLT, 3/8-16 X 5

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

48

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

?48A

HEX NUT, 3/8-16 CTR LOCKNUT

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

49

LOCKWASHER, SPRING 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

50

Scag 04004-02

SUPPORT, BELT COVER

$1.99

$

Usually ships in 2-12 days

0

51

Scag 45098

BELT GUIDE

$15.99

$

Usually ships in 2-12 days

0

52

HEX HD. BOLT, 7/16-14 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

53

WASHER, 15/32 X 59/64 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

54

LOCKWASHER, SPRING, 7/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

55

HEX NUT, 7/16-14 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

56

Scag 45423

IDLER PIVOT

$77.99

$

Usually ships in 2-12 days

0

57

Scag 46434

IDLER ARM ASSY.(INCLUDES ITEMS 82 & 58)

$191.99

$

Usually ships in 2-12 days

0

58

Scag 48100-02

BRONZE BEARING

$3.99

$

In Stock, only 2 left!

0

59

Scag 04050-05

RETAINING RING, 1 1/8" EXT,-"E"

$0.99

$

In Stock, Qty 20+

0

60

Scag 04004-04

STUD

$2.49

$

Usually ships in 2-12 days

0

61

Scag 48269

IDLER PULLEY, BELT CLUTCH
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

62

FLAT WASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

63

Scag 48544

ROD END - L.H. THD(SILVER)

$27.99

$

Usually ships in 2-12 days

0

64

Scag 48464

ROD END - R.H. THD(GOLD)

$23.99

$

In Stock, only 1 left!

0

65

Scag 48590

LINK, TURNBUCKLE

$33.99

$

Usually ships in 2-12 days

0

66

HEX NUT, 3/8-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

67

Scag 43042

SLEEVE, CLUTCH ROD

$6.49

$

In Stock, only 1 left!

0

68

HEX HD. BOLT, 3/8-16 X 2-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

69

Scag 44064

BLADE CLUTCH ROD, LOWER

$34.99

$

Usually ships in 2-12 days

0

70

Scag 43043

SLEEVE, CLUTCH ROD

$12.99

$

Usually ships in 2-12 days

0

71

COTTER PIN, 3/32 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

72

WASHER, 33/64 X 1 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

73

Scag 04062-01

HAIR PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

74

HEX HD. BOLT, 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

75

Scag 421107

CAM LINK

$56.99

$

In Stock, only 1 left!

0

76

Scag 44009

BELT GUIDE

$2.99

$

Usually ships in 2-12 days

0

77

HEX HEAD BOLT, 3/8-16 X 1 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

78

Scag 48681

SEAL, CUTTER SPINDLE
(Superseded to 481024)

$4.99

$

In Stock, Qty 20+

0

?79

Scag 43217

SPINDLE BUSHING

$15.99

$

Usually ships in 2-12 days

0

80

Scag 43218

SLEEVE, CUTTER SPINDLE

$8.99

$

Usually ships in 2-12 days

0

81

Scag 48677

RELIEF FITTING, CUTTER SPINDLE

$9.49

$

Usually ships in 2-12 days

0

82

Scag 48114-04

GREASE FITTING, CUTTER SPINDLE

$1.49

$

In Stock, Qty 20+

0

83

ROLL PIN, 1/8 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available

84

FLAT WASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS ARE GRADE 5 PLATED, ALL OTHER FASTENERS ARE ZINC PLATED.

$

$

Not available
