SW-18KH - Scag Walk-Behind Mower, 18hp Kohler (SN: 01801 - 09999) WIRING DIAGRAM FOR MANUAL START Parts Diagram

Walk-Behind Mower, 18hp Kohler

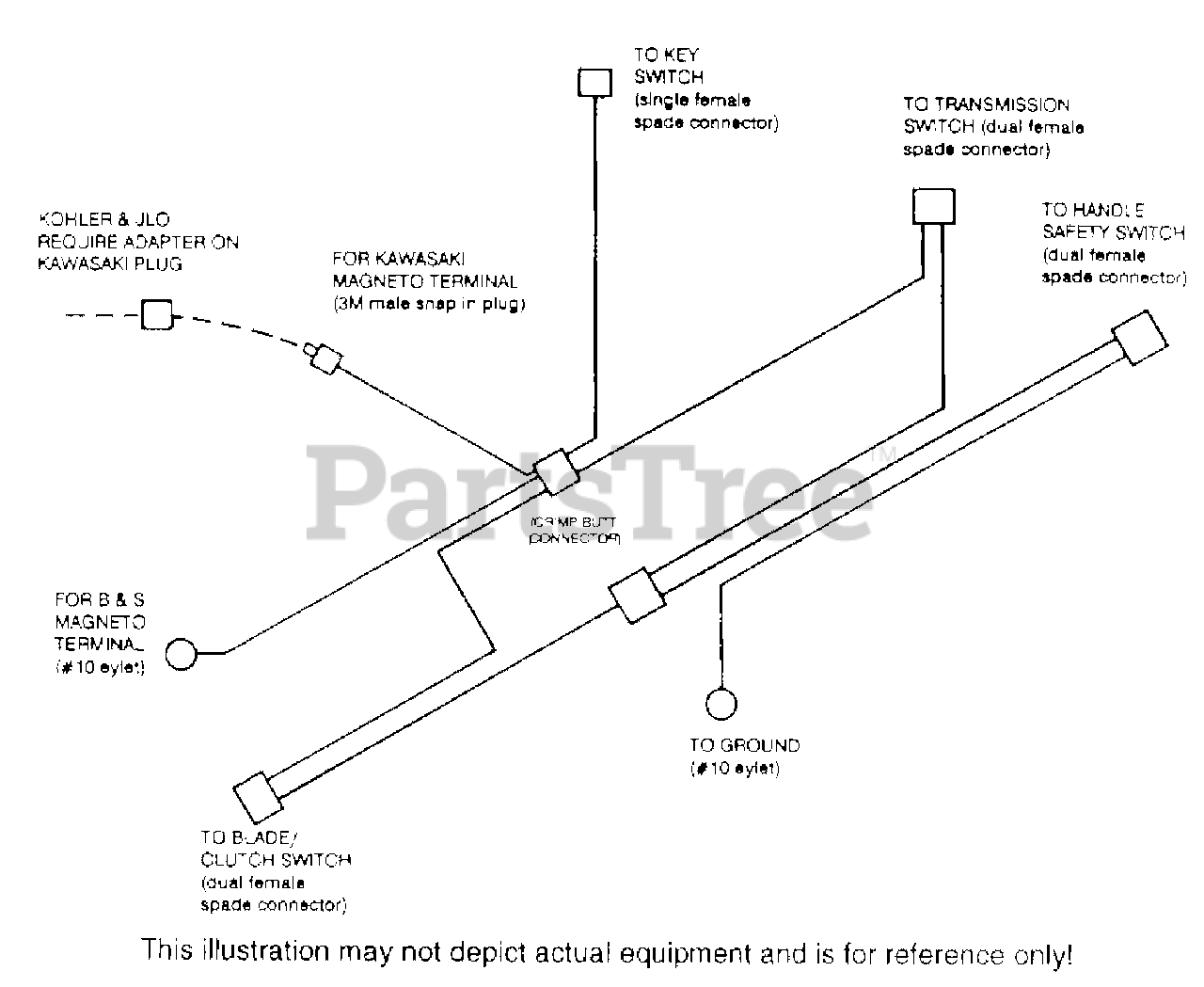

WIRING DIAGRAM FOR MANUAL START Parts Diagram

  • Title

1B

Scag 48268

ENGINE 18HP KOHLER(MV18 PS-58511)

$

$

Not available

1B

Scag 48358

ENGINE 20HP KOHLER EL. ST.(MV20 PS-57508)

$

$

Not available

2

Scag 48059-01

CABLE CLAMP

$0.99

$

In Stock, Qty 7

0

28

Scag 48379

PULLEY, TRACTION DRIVE

$60.99

$

Usually ships in 2-12 days

0

31

Scag 48378

PULLEY, BLADE DR.(INCL. 31-33)

$

$

Not available

32

Scag 48378-03

TAPER HUB(FOR 48378)
(Superseded to 48926)

$

$

Not available

48

Scag 04003-05

SHORT SQ. NECK CRG. BOLT, 3/8-18 X 1 1/2

$0.99

$

In Stock, Qty 18

0

49

Scag 45145

BATTERY BOX

$

$

Not available

50

Scag 42330

BRACKET, IDLER PULLEY

$

$

Not available

51

Scag 43063

SPACER

$7.99

$

In Stock, only 2 left!

0

52

Scag 04041-11

WASHER, 13/32 X 1-1/2 X 7 GA.

$1.99

$

In Stock, only 4 left!

0

53

Scag 42361

BATTERY CLAMP

$25.99

$

Usually ships in 2-12 days

0

54

Scag 42024

BATTERY COVER

$

$

Not available

55

Scag 48099

BATTERY COVER PAD

$5.99

$

Usually ships in 2-12 days

0

56

CARRIAGE HD BOLT, 1/4-20 X 6

$

$

Not available

63

HEX HD BOLT, 3/8-16 X 2

$

$

Not available

64

Scag 48030

CLAMP, FUEL HOSE
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

65

Scag 48257

PIPE CAP

$2.49

$

In Stock, only 1 left!

0

66

Scag 48254

PIPE 4" NIPPLE

$

$

Not available

68

Scag 04022-01

WING NUT, 1/4-20 ELASTIC STOP
(Superseded to 04029-01)

$2.49

$

In Stock, Qty 19

0

69

Scag 48015

BATTERY

$

$

Not available

70

HEX HD BOLT, 3/8-16 X 3/4

$

$

Not available

6

Scag 48293

WIRE HARNESS ELECTRIC START
(Superseded to 48611)

$180.99

$

Usually ships in 2-12 days

0

61

Scag 48017

KEY SWITCH

$22.99

$

Usually ships in 2-12 days

0

65

Scag 48058-02

FUEL HOSE(KH ONLY) 1/4 ID X 14 1/8
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

80

Scag 48266

THROTTLE CONTROL

$47.99

$

Usually ships in 2-12 days

0

96

Scag 48091

CHOKE CONTROL

$

$

Not available

99

Scag 44014

ROD, CONTROL PIVOT 20"
(Superseded to 45142)

$62.99

$

Usually ships in 2-12 days

0

105

Scag 48016

SOLENOID

$86.99

$

Usually ships in 2-12 days

0

106

BOLT, HEX HD 1/4-20 X 1/2

$

$

Not available
