SW-18CVE - Scag Walk-Behind Mower, 18hp Kohler (SN: 70000 - 79999) 32" Cutter Deck Parts Diagram

Walk-Behind Mower, 18hp Kohler

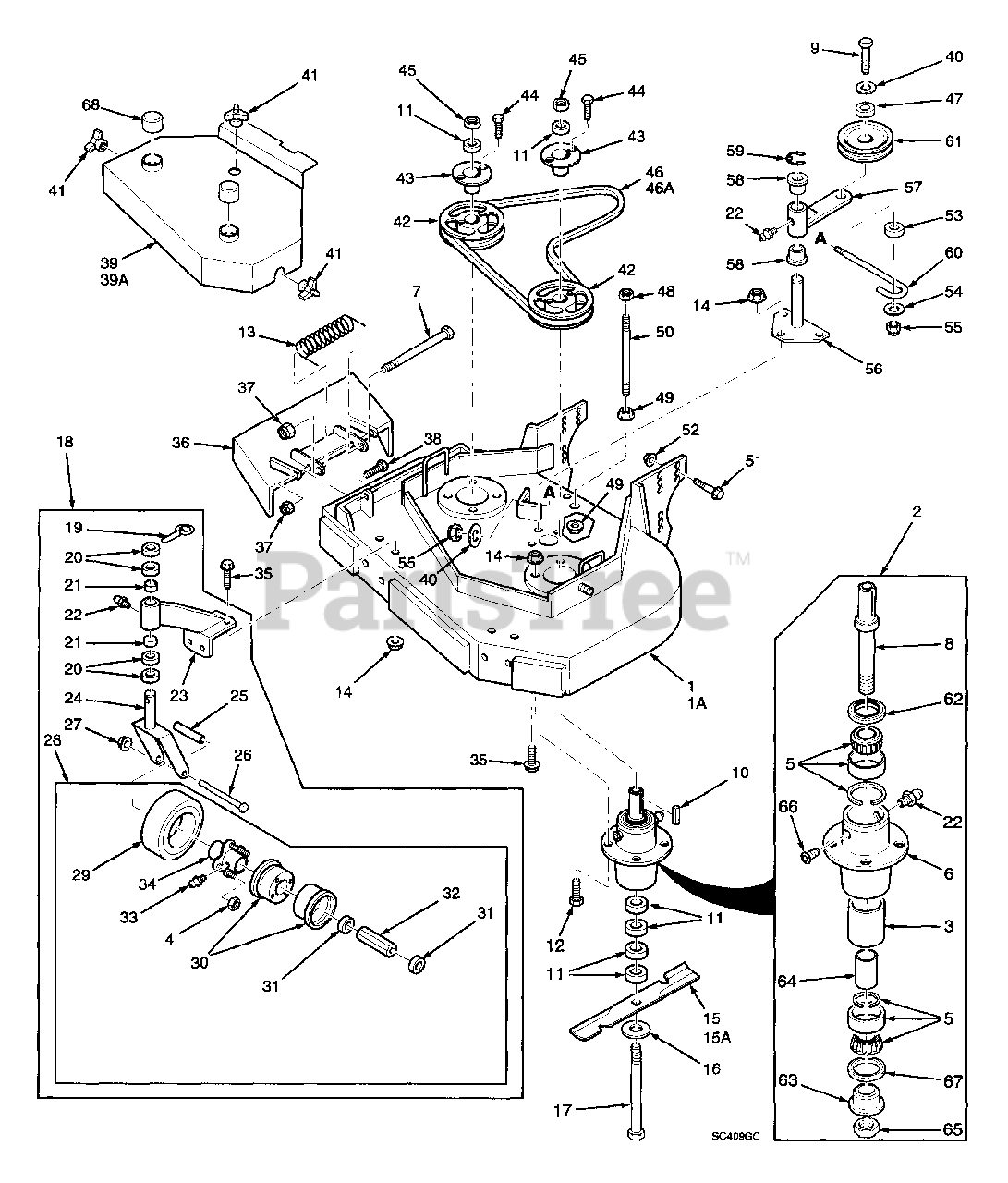

32" Cutter Deck Parts Diagram

  • Title

1

Scag 46849

Cutter Deck
(Superseded to 461708)

Note: Includes Decals

$1460.99

$

Usually ships in 2-12 days

0

1A

Scag 46850

Cutter Deck
(Superseded to 461553)

Note: Includes Decals; Not used on this model.

$1391.99

$

Usually ships in 2-12 days

0

2

Scag 46631

Cutter Spindle Assy.
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

3

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

4

Scag 48307-08

Tapered Nut, 5/16-24
(Superseded to 481771)

$1.99

$

Usually ships in 2-12 days

0

5

Scag 481022

Tapered Bearing Two

$61.99

$

In Stock, Qty 15

0

6

Scag 43294

Spindle Housing
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

7

Scag 04001-108

Bolt, 5/16-18 x 4-1/4" Hex Head

$2.49

$

In Stock, Qty 9

0

8

Scag 43298

Spindle Shaft
(Superseded to 43589)

$59.99

$

In Stock, only 1 left!

0

9

Scag 04001-77

Bolt, 3/8-16 x 3-1/2" Hex Head

$1.49

$

In Stock, Qty 7

0

10

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43278

Spacer, Cutter Blade - Small
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

Scag 04001-10

Bolt, 5/16-18 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

13

Scag 481050

Spring, Chute Return
(Superseded to 482245)

$11.99

$

In Stock, Qty 5

0

14

Scag 04019-03

Nut 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

15

Scag 48110

Cutter Blade, 16-1/2"
(Superseded to 481706)

$21.99

$

In Stock, Qty 20+

0

15A

Scag 48184

Cutter Blade, 16-1/2" Hi Lift
(Superseded to 481710)

$41.99

$

Usually ships in 2-12 days

0

16

Scag 04040-10

Flatwasher, 5/8 W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

Hex Hd Bolt, 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

18

Scag 46079

Caster Assembly

Note: Inc. 19 - 28

$405.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

Quick Pin

$8.99

$

In Stock, Qty 7

0

20

Scag 43037-01

Spacer, Caster Yoke, 1/2" long

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

Bronze Bearing

$2.99

$

In Stock, Qty 5

0

22

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

23

Scag 46082

Support Assembly

Note: Includes 21 - 23

$152.99

$

In Stock, only 1 left!

0

24

Scag 45006

Caster Yoke

$67.99

$

In Stock, only 1 left!

0

25

Scag 43022

Sleeve, Caster Wheel Bearing

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

Hex Hd. Bolt, 1/2-13 x 5-1/2"

$4.49

$

In Stock, Qty 15

0

27

Scag 04021-07

Elastic Stop Nut, 1/2-13

$0.99

$

In Stock, Qty 20+

0

28

Scag 48307

Wheel Assy

Note: Inc 4, 29 - 34

$155.99

$

Usually ships in 2-12 days

0

29

Scag 48307-02

Tire only, Caster Wheel
(Superseded to 481774)

$89.99

$

Usually ships in 2-12 days

0

Scag 48006-03

Inner Tube only
(Superseded to 481773)

Note: Not Shown

$21.99

$

In Stock, only 2 left!

0

30

Scag 48307-04

Rim Pair, Caster Wheel
(Superseded to 481772)

$72.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

Retainer, Bearing, Caster Wheel
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

Roller Bearing, Caster Wheel
(Superseded to 481769)

$28.99

$

In Stock, only 2 left!

0

33

Scag 48114-03

Grease Fitting, 45 degree 1/4-28

$5.49

$

In Stock, Qty 6

0

34

Scag 48006-05

Hub Assembly
(Superseded to 481768)

$66.99

$

Usually ships in 2-12 days

0

35

Scag 04017-16

Cpscrw, 5/16-18 x 3/4" Ser. Flg HH

$0.99

$

In Stock, Qty 10

0

36

Scag 46725

Discharge Chute
(Superseded to 461291)

$97.99

$

Usually ships in 2-12 days

0

37

Scag 04021-10

Hex Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

38

Scag 04001-09

Hex Hd Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

39

Scag 46853

Belt Cover Assy
(Superseded to 461709)

Note: Includes Decal

$233.99

$

Usually ships in 2-12 days

0

39A

Scag 46797

Belt Cover Assy

Note: Includes Decal; Not used on this model.

$349.99

$

Usually ships in 2-12 days

0

40

Scag 04041-07

Flat Washer, 3/8" Special

$0.99

$

In Stock, Qty 20+

0

41

Scag 04029-03

Wing Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

42

Scag 48924

Pulley
(Superseded to 482744)

$30.99

$

In Stock, only 1 left!

0

43

Scag 48926

Tapered Hub

$31.99

$

In Stock, Qty 20+

0

44

Scag 04001-01

Hex Hd. Bolt, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

45

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

46

Scag 48278

Belt, Blade Drive

$62.99

$

In Stock, Qty 5

0

46A

Scag 48204

Belt, Blade Drive

Note: Not used on this model.

$41.99

$

In Stock, Qty 5

0

47

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

48

Scag 04021-05

Hex Nut, 3/8-16 Center Locknut

$0.99

$

In Stock, Qty 20+

0

49

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

50

Scag 04004-02

Support, Belt Cover

$1.99

$

Usually ships in 2-12 days

0

51

Scag 04017-42

Cpscrw, 7/16-14 x 1" Ser. Flg HH

$2.49

$

In Stock, Qty 10

0

52

Scag 04019-05

Nut, 7/16-14 Serrated Flange

$0.99

$

In Stock, Qty 12

0

53

Scag 43277

Spacer, J-Hook

$6.49

$

In Stock, only 1 left!

0

54

Scag 04041-12

Washer, 3/8 x 1-1/2 x 16 GA

$0.99

$

In Stock, Qty 9

0

55

Scag 04021-09

Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

56

Scag 45423

Idler Pivot

$77.99

$

Usually ships in 2-12 days

0

57

Scag 46748

Idler Arm Assy

Note: Includes 22 & 58

$100.99

$

Usually ships in 2-12 days

0

58

Scag 48100-02

Bronze Bearing

$3.99

$

In Stock, only 2 left!

0

59

Scag 04050-05

Retaining Ring, 1-1/8" Ext "E"

$0.99

$

In Stock, Qty 20+

0

60

Scag 44078

J-Hook

$6.99

$

In Stock, only 2 left!

0

61

Scag 48269

Idler Pulley, Belt Clutch
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

62

Scag 481024

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

63

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

64

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

65

Scag 481035

Nut

$7.99

$

In Stock, only 3 left!

0

66

Scag 48677

Relief Fitting, Cutter Spindle

$9.49

$

Usually ships in 2-12 days

0

67

Scag 481025

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

68

Scag 48098

Spindle Shield

$2.49

$

In Stock, only 3 left!

0
