SW-18B - Scag Walk-Behind Mower, 18hp Briggs & Stratton (SN: 0690 - 9999) TRANSAXLE ASSEMBLY Parts Diagram

Walk-Behind Mower, 18hp Briggs & Stratton

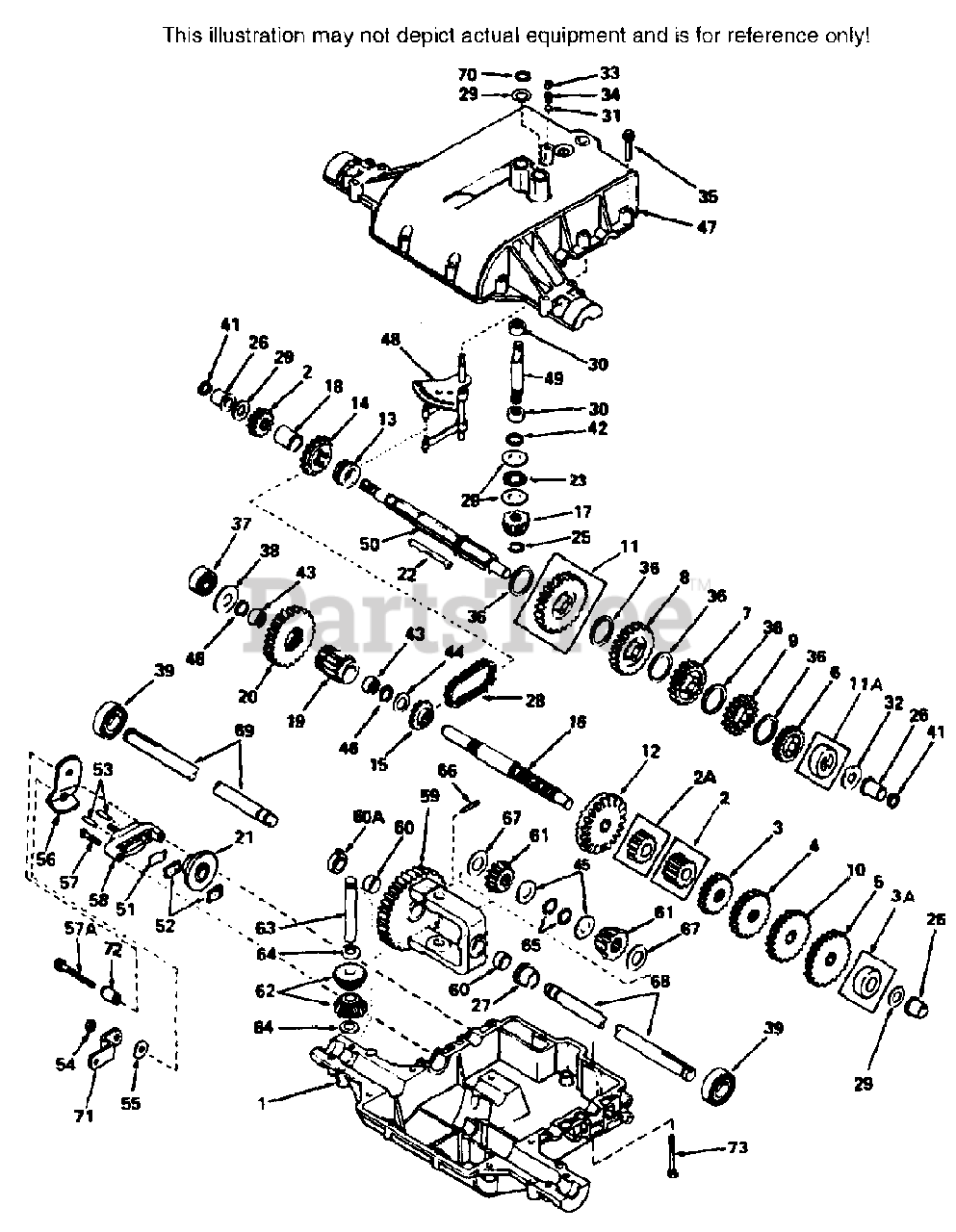

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Scag 770071A

CASE, TRANSAXLE

$

$

Not available

2

Scag 778136

GEAR, SPUR(15 TEETH)

$

$

Not available

4

Scag 778200

GEAR, SPUR(20 TEETH)

$

$

Not available

5

Scag 778202

GEAR, SPUR(28 TEETH)

$

$

Not available

6

Scag 778203

GEAR, SPUR(22 TEETH)

$

$

Not available

7

Scag 778205

GEAR, SPUR(30 TEETH)

$

$

Not available

8

Scag 778206

GEAR, SPUR(35 TEETH)

$

$

Not available

9

Scag 778204

GEAR, SPUR(25 TEETH)

$

$

Not available

11

Scag 778207

GEAR, SPUR(37 TEETH)

$

$

Not available

12

Scag 778154

GEAR, BEVEL(42 TEETH)

$

$

Not available

13

Scag 784266

COLLAR, SHIFT

$

$

Not available

14

Scag 786083

SPROCKET(18 TEETH)

$

$

Not available

15

Scag 786082

SPROCKET(9 TEETH)

$

$

Not available

16

Scag 776204

SHAFT, COUNTER

$

$

Not available

17

Scag 778176

BEVEL PINION, INPUT

$

$

Not available

18

Scag 786074

SPACER

$

$

Not available

19

Scag 778138

PINION, OUTPUT

$

$

Not available

20

Scag 778139

GEAR, OUTPUT

$

$

Not available

21

Scag 790003

DISK, BRAKE

$77.99

$

Usually ships in 2-12 days

0

22

Scag 792089A

KEY

$

$

Not available

23

Scag 780071

BEARING, THRUST

$

$

Not available

25

Scag 788040

RING, RETAINING

$

$

Not available

28

Scag 786081

CHAIN, ROLLER(NO. 41 CHAIN, 24 LINKS)

$

$

Not available

29

Scag 780072

WASHER, THRUST

$

$

Not available

30

Scag 780122

BEARING, NEEDLE

$

$

Not available

31

Scag 792077

BALL, STEEL

$

$

Not available

32

Scag 780139

WASHER, THRUST

$

$

Not available

33

Scag 792078

SCREW, SET, 3/8-16 X 3/8

$

$

Not available

34

Scag 792079

SPRING

$

$

Not available

35

Scag 792073

SCREW, HEX HD. THREAD FORMING,

$

$

Not available

36

Scag 780108

WASHER, THRUST

$

$

Not available

37

Scag 780121

BEARING, BALL

$

$

Not available

38

Scag 780113

WASHER, FLAT

$

$

Not available

39

Scag 780119

BEARING, BALL

$

$

Not available

41

Scag 788051

RING, SQUARE CUT

$

$

Not available

42

Scag 788057

RING, SQUARE CUT

$

$

Not available

43

Scag 780112

BEARING, NEEDLE

$

$

Not available

44

Scag 780114

WASHER, FLAT

$

$

Not available

45

Scag 780114

WASHER

$

$

Not available

46

Scag 788053

RING, SQUARE CUT

$

$

Not available

47

Scag 772084

COVER, TRANSAXLE

$

$

Not available

48

Scag 784290

ROD & FORK ASSEMBLY, SHIFT

$

$

Not available

49

Scag 776135

SHAFT, INPUT

$

$

Not available

50

Scag 776183A

SHAFT BRAKE

$

$

Not available

51

Scag 790007

PLATE, BRAKE PAD

$15.99

$

In Stock, only 4 left!

0

52

Scag 790006

PAD, BRAKE

$27.99

$

Usually ships in 2-12 days

0

53

Scag 786026

PIN, DOWEL

$

$

Not available

54

Scag 792075

LOCKNUT, 5/16-24

$

$

Not available

55

Scag 792076

WASHER, FLAT

$

$

Not available

56

Scag 790016

LEVER, BRAKE

$

$

Not available

57

Scag 792073

SCREW, HEX HD. THREAD FORMING,

$

$

Not available

57A

Scag 792085

SCREW, HEX HD. THREAD FORMING,

$

$

Not available

58

Scag 790025

HOLDER, BRAKE PAD

$

$

Not available

60

Scag 780064

BUSHING

$

$

Not available

60A

Scag 780120

BUSHING

$

$

Not available

61

Scag 778166

GEAR, BEVEL

$

$

Not available

62

Scag 778131

PINION, BEVEL

$

$

Not available

63

Scag 786034

PIN, DRIVE

$

$

Not available

64

Scag 780065

WASHER, THRUST

$

$

Not available

65

Scag 792109

RING, RETAINING

$

$

Not available

66

Scag 792040

PIN, ROLL

$

$

Not available

67

Scag 780001

WASHER, THRUST

$

$

Not available

70

Scag 792035

RING, RETAINING

$

$

Not available

71

Scag 786086

BRACKET, BRAKE LEVER

$

$

Not available

72

Scag 786092

SPACER

$

$

Not available

73

Scag 04007

SPECIAL BOLT

$0.99

$

Usually ships in 2-12 days

0

Scag 788067

GEAR GREASE, BENTONITE

$

$

Not available
