SW-18B - Scag Walk-Behind Mower, 18hp Briggs & Stratton (SN: 0690 - 9999) ENGINE DECK Parts Diagram

Walk-Behind Mower, 18hp Briggs & Stratton

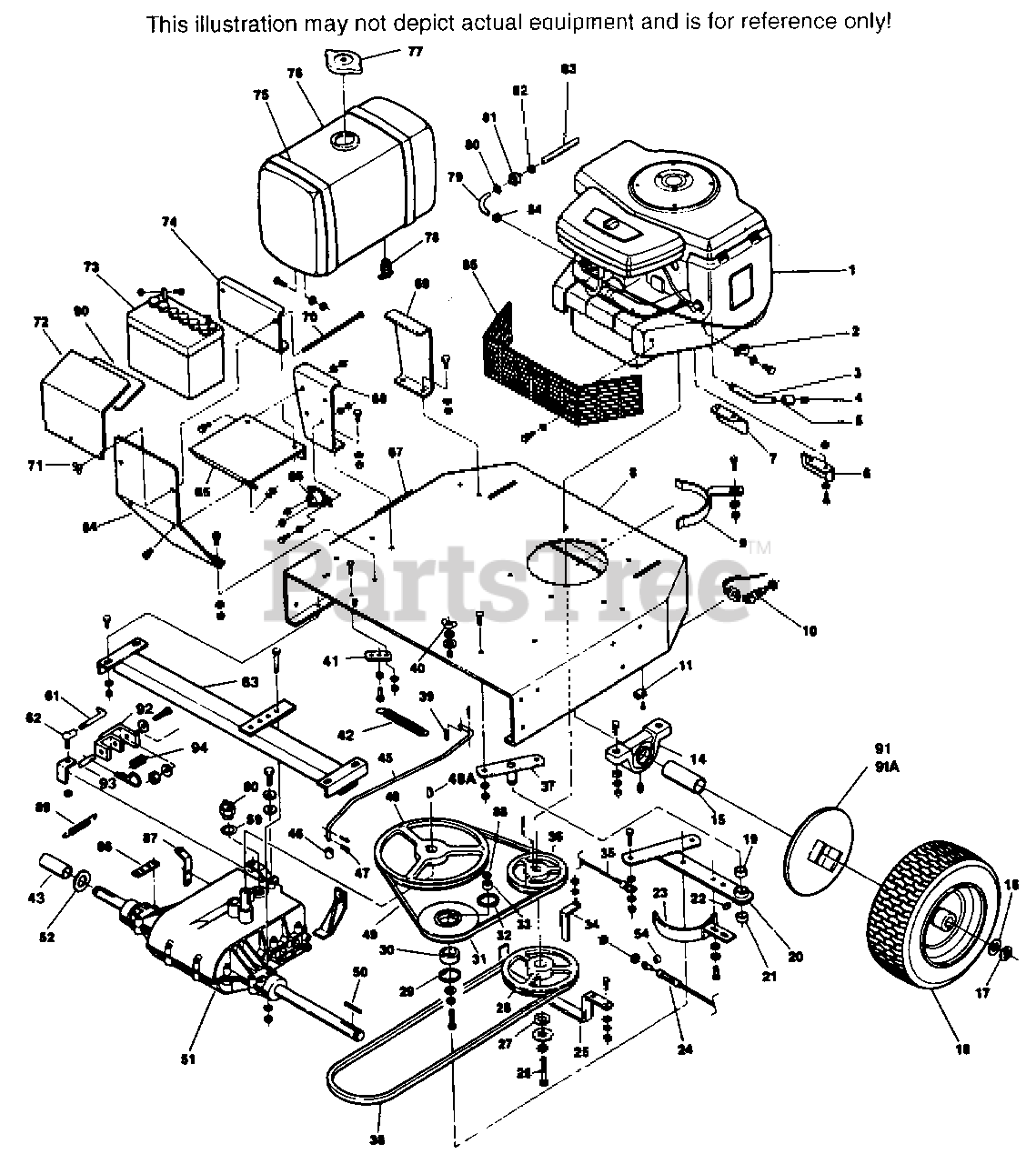

ENGINE DECK Parts Diagram

  • Title

2

Scag 48030

CLAMP
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

10

Scag 48019

SAFETY SWITCH - BLADE CLUTCH

$37.99

$

Usually ships in 2-12 days

0

11

Scag 48030

CLAMP
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

14

Scag 48104

BEARING, PILLOW BLOCK
(Superseded to 48104-01)

$172.99

$

Usually ships in 2-12 days

0

16

Scag 04041-08

THRUST WASHER

$0.99

$

In Stock, Qty 20+

0

17

Scag 04050-02

RETAINING RING

$0.99

$

In Stock, Qty 7

0

18

Scag 48010-01

DRIVE WHEEL ASSY. WITH BRAKE ADAPTER

$

$

Not available

18A

Scag 48004-02

TIRE ONLY
(Superseded to 481893)

$222.99

$

Usually ships in 2-12 days

0

18B

Scag 48010-03

RIM ONLY
(Superseded to 481890)

$91.99

$

In Stock, only 1 left!

0

19

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

20

Scag 45018

IDLER ARM WELDMENT
(Superseded to 46144)

$

$

Not available

21

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

22

Scag 48114-01

GREASE FITTING
(Superseded to 48114-04)

$1.49

$

In Stock, Qty 20+

0

23

Scag 45014

BELT GUIDE - IDLER PULLEY

$129.99

$

Usually ships in 2-12 days

0

24

Scag 48047

FOOT CLUTCH CABLE ASSY.

$266.99

$

Usually ships in 2-12 days

0

26

Scag 04001-29

BOLT, HEX HD., 7/16-20 X 1-1/2

$

$

Currently unavailable

27

Scag 43048

SPACER CRANKSHAFT

$

$

Not available

28

Scag 48070

PULLEY, ENGINE
(Superseded to 48924)

$

$

Not available

29

Scag 04050-06

RETAINING RING

$2.99

$

Usually ships in 2-12 days

0

30

Scag 48102

BEARING, IDLER PULLEY

$11.99

$

Usually ships in 2-12 days

0

31

Scag 48065

PULLEY, IDLER

$68.99

$

Usually ships in 2-12 days

0

32

Scag 04050-06

RETAINING RING

$2.99

$

Usually ships in 2-12 days

0

33

Scag 43044

SLEEVE

$17.99

$

Usually ships in 2-12 days

0

36

Scag 48063

PULLEY, ENGINE

$77.99

$

Usually ships in 2-12 days

0

37

Scag 45015

IDLER PIVOT WELDMENT

$

$

Not available

39

Scag 04062-01

HAIRPIN

$0.99

$

In Stock, Qty 20+

0

40

Scag 04022-04

WING NUT
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

41

Scag 42060

SPRING MOUNTING BRACKET

$

$

Not available

42

Scag 48051

SPRING, BELT CLUTCH

$5.99

$

In Stock, only 2 left!

0

45

Scag 43031

BELT CLUTCH ROD

$47.99

$

Usually ships in 2-12 days

0

46

Scag 43043

SLEEVE

$12.99

$

Usually ships in 2-12 days

0

47

Scag 04062-01

HAIRPIN

$0.99

$

In Stock, Qty 20+

0

48

Scag 48064

PULLEY, TRANSAXLE

$101.99

$

Usually ships in 2-12 days

0

48A

Scag 04063-07

WOODRUFF KEY #9

$0.99

$

In Stock, Qty 12

0

50

Scag 04063-04

KEY, 3/16 X 3/16 X 3-1/2

$1.99

$

Usually ships in 2-12 days

0

51

Scag 48003

TRANSAXLE

$

$

Not available

52

Scag 04041-09

THRUST WASHER

$2.99

$

Usually ships in 2-12 days

0

54

Scag 43049

FOOT CABLE SLEEVE

$6.49

$

Usually ships in 2-12 days

0

58

Scag 42061

SHIFT LEVER

$30.99

$

Usually ships in 2-12 days

0

59

Scag 48122-01

FIBER WASHER - .010

$0.99

$

Usually ships in 2-12 days

0

59

Scag 48122-02

FIBER WASHER - .020

$0.99

$

Usually ships in 2-12 days

0

60

Scag 48021

NEUTRAL SAFETY SWITCH

$33.99

$

Usually ships in 2-12 days

0

61

Scag 43029

SHIFT CONNECTOR ROD

$

$

Not available

62

Scag 48118

BALL JOINT

$25.99

$

Usually ships in 2-12 days

0

64

Scag 42052

BATTERY SUPPORT

$

$

Not available

65

Scag 42051

BATTERY SHELF

$

$

Not available

66

Scag 48016

STARTER SOLENOID

$88.99

$

Usually ships in 2-12 days

0

67

Scag 45027-01

HITCH BRACKET WELDMENT - RH

$

$

Not available

68

Scag 42042

FUEL TANK BRACKET, FRONT

$

$

Not available

69

Scag 42044

FUEL TANK BRACKET, REAR

$

$

Not available

70

Scag 04003-01

BOLT, CARRIAGE 1/4-20 X 6
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

71

Scag 04022-01

WING NUT
(Superseded to 04029-01)

$2.49

$

In Stock, Qty 19

0

72

Scag 42024

BATTERY COVER

$11.99

$

Usually ships in 2-12 days

0

73

Scag 48015

BATTERY

$

$

Not available

74

Scag 42055

BATTERY CLAMP

$

$

Not available

75

Scag 42048

FUEL TANK STRAP

$

$

Not available

76

Scag 48054

FUEL TANK, 3 GALLON

$

$

Not available

77

Scag 48055

FUEL TANK CAP

$

$

Not available

78

Scag 48056

FUEL SHUT-OFF VALVE

$22.99

$

Usually ships in 2-12 days

0

80

Scag 48059

HOSE CLAMP
(Superseded to 48059-01)

$0.99

$

In Stock, Qty 7

0

81

Scag 48057

FUEL FILTER

$4.49

$

Usually ships in 2-12 days

0

82

Scag 48059

HOSE CLAMP
(Superseded to 48059-01)

$0.99

$

In Stock, Qty 7

0

84

Scag 48059

HOSE CLAMP
(Superseded to 48059-01)

$0.99

$

In Stock, Qty 7

0

86

Scag 42075

SPACER, TRANSAXLE MOUNTING

$15.99

$

Usually ships in 2-12 days

0

87

Scag 42076

REAR BRACE, TRANSAXLE

$

$

Not available

88

Scag 43039

SPACER, IDLER PULLEY

$

$

Not available

89

Scag 48052

SPRING, BRAKE RETURN

$6.99

$

Usually ships in 2-12 days

0

90

Scag 48099

BATTERY COVER INSULATION

$5.99

$

Usually ships in 2-12 days

0

92

Scag 45057

SAFETY REVERSE WELDMENT

$

$

Not available

93

Scag 43066

SAFETY REVERSE ROD

$

$

Not available

94

Scag 48149

SPRING, SAFETY REVERSE

$

$

Not available
