SW-18B - Scag Walk-Behind Mower, 18hp Briggs & Stratton (SN: 0690 - 9999) ELECTRICAL SYSTEM Parts Diagram

Walk-Behind Mower, 18hp Briggs & Stratton

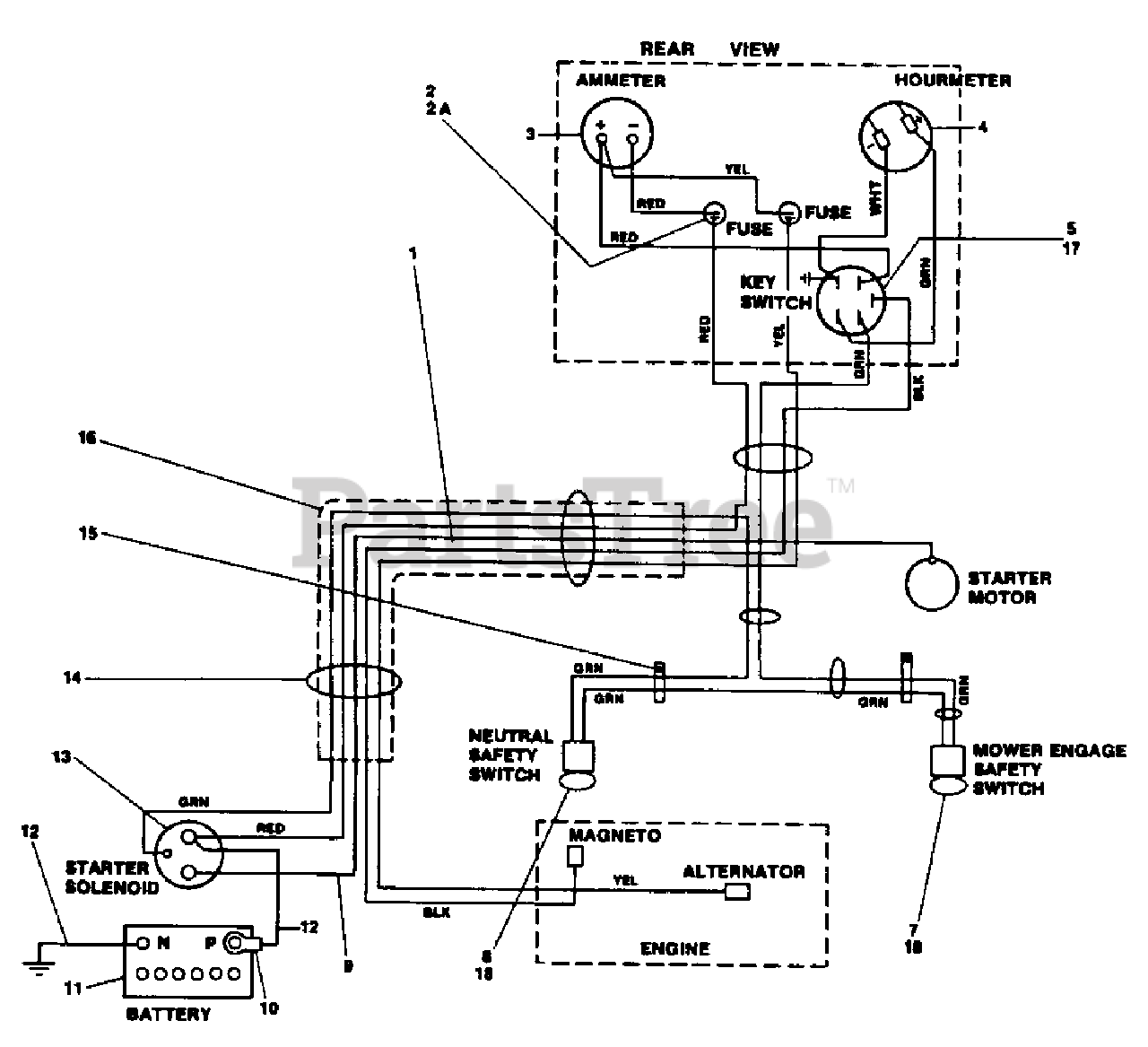

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 48031

WIRING HARNESS, B&S 18 HP E.S.

$170.99

$

Usually ships in 2-12 days

0

2

Scag 48024

FUSE HOLDER

$10.99

$

In Stock, only 1 left!

0

2A

Scag 48025

FUSE, 20A

$1.99

$

Usually ships in 2-12 days

0

3

Scag 48022

AMMETER
(Superseded to 481755)

$

$

Not available

4

Scag 48023

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

5

Scag 48017

KEY SWITCH

$23.99

$

Usually ships in 2-12 days

0

7

Scag 48019

MOWER ENGAGE SAFETY SWITCH

$37.99

$

Usually ships in 2-12 days

0

8

Scag 48021

NUETRAL SAFETY SWITCH

$33.99

$

Usually ships in 2-12 days

0

9

Scag 48029-02

BATTERY CABLE

$16.99

$

Usually ships in 2-12 days

0

10

Scag 48126

RUBBER BOOT

$8.99

$

Usually ships in 2-12 days

0

11

Scag 48015

BATTERY

$

$

Not available

12

Scag 48029-01

BATTERY CABLE

$9.99

$

Usually ships in 2-12 days

0

13

Scag 48016

STARTER SOLENOID

$88.99

$

Usually ships in 2-12 days

0

14

Scag 48028

CABLE TIE
(Superseded to 48028-01)

$0.99

$

Usually ships in 2-12 days

0

15

Scag 48030

CABLE CLAMP
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

16

Scag 48033

PLASTIC CONDUIT

$

$

Not available

17

Scag 48018

CONNECTOR, STARTER SWITCH

$1.49

$

Usually ships in 2-12 days

0
